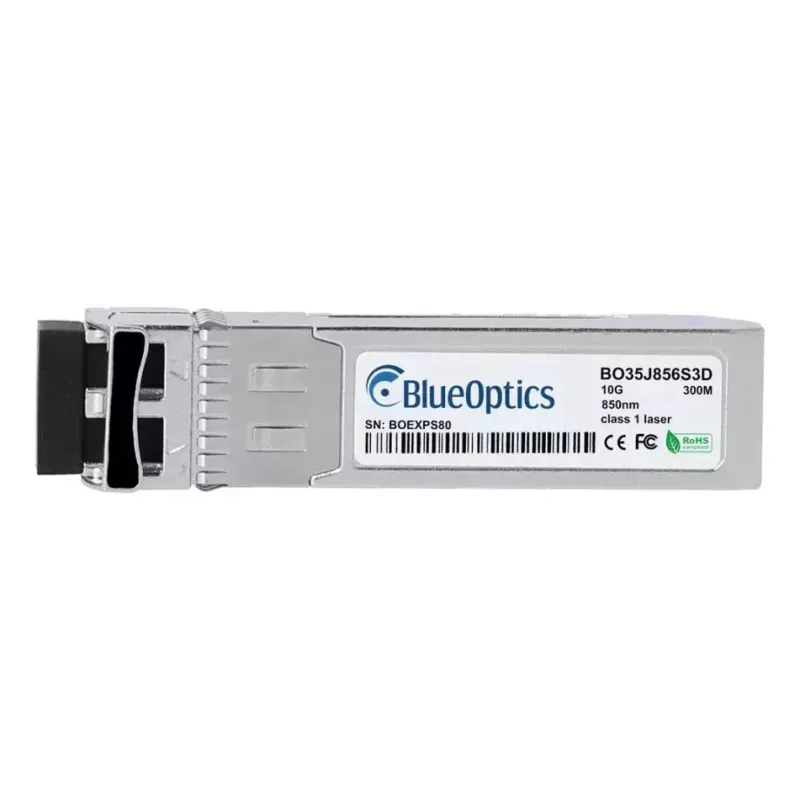

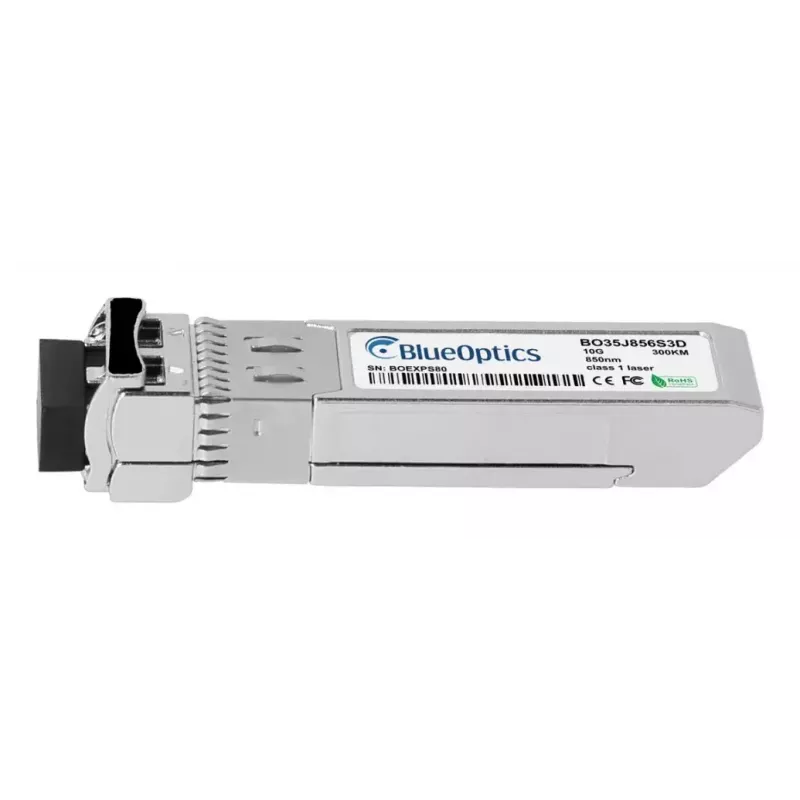

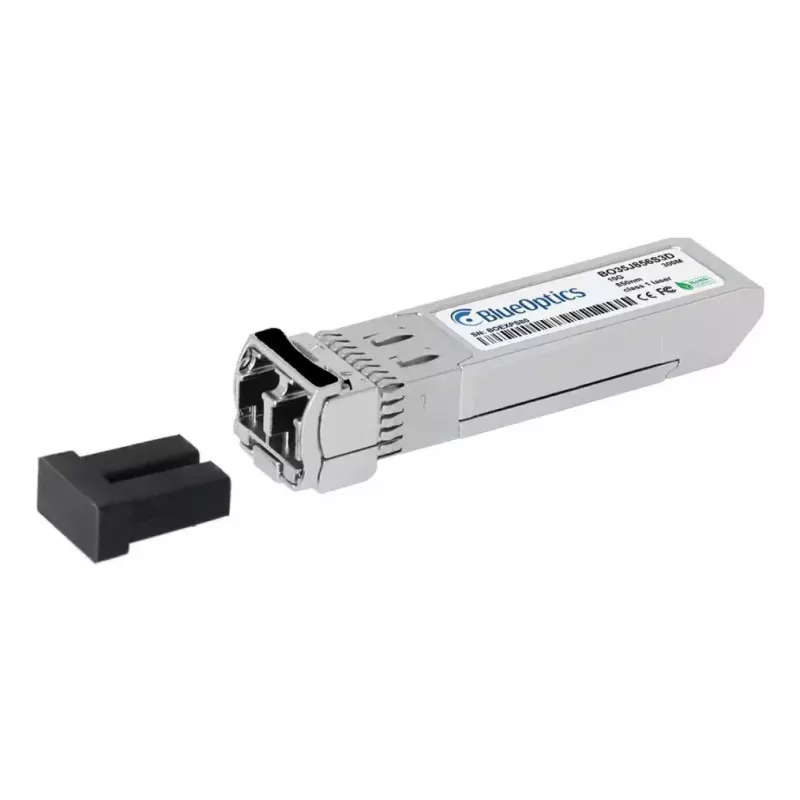

Modulo ricetrasmettitore in fibra ottica BlueOptics OWTRD1-BO 10000 Mbit/s SFP+

The BlueOptics OWTRD1-BO 10000 Mbit/s SFP+ is a fiber optic transceiver module designed for 10GBASE-SR multimode connections. It uses an LC Duplex interface and operates with 850 nm transmit and receive wavelengths. The module is compliant with CE, RoHS and FCC standards, has a compact SFP+ form factor, and weighs approximately 20 g, making it suitable for installation in switches, routers and other networking hardware that accept MSA-compliant SFP+ modules.

Advantages

The module supports a 10 Gbit/s data rate over multimode fiber with simultaneous transmit and receive channels via LC Duplex. It is built to MSA standards and is tested for compatibility with common hardware platforms. High-quality components are used for optical and electronic parts, and the transceiver includes Digital Diagnostics Monitoring (DDM) support compatible with SFF-8472 for real-time reporting of voltage, current, optical power and temperature when the host device supports DDM. Its compact SFP+ form factor and silver color simplify integration into standard rack equipment.

Suitable for

Key specifications

How to use

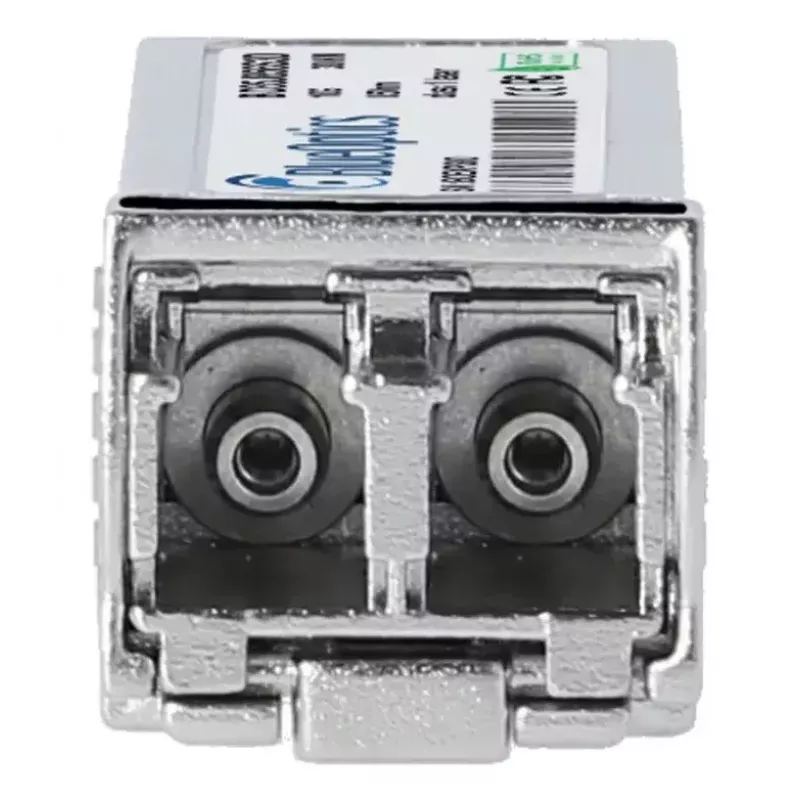

Insert the SFP+ transceiver into a compatible SFP+ port on your switch, router or server until it clicks into place. Connect LC Duplex multimode fiber patch cables to the TX and RX ports, ensuring correct polarity. Power up the host device and verify link status via the device’s management interface. If DDM/DOM is required, enable and monitor the diagnostic parameters from the host system provided it supports SFF-8472 diagnostics. For hot-pluggable operation, follow the host vendor’s instructions when inserting or removing the module to avoid port or module damage.

Recommendations

Use OM3/OM4 multimode fiber for optimal 10GBASE-SR performance and keep connectors clean to maintain low insertion loss. Verify host compatibility and, where available, enable DDM in the network equipment to monitor optical link health. Store and handle the transceiver in a static-safe environment and avoid exposing it to extreme temperatures or mechanical shock.
