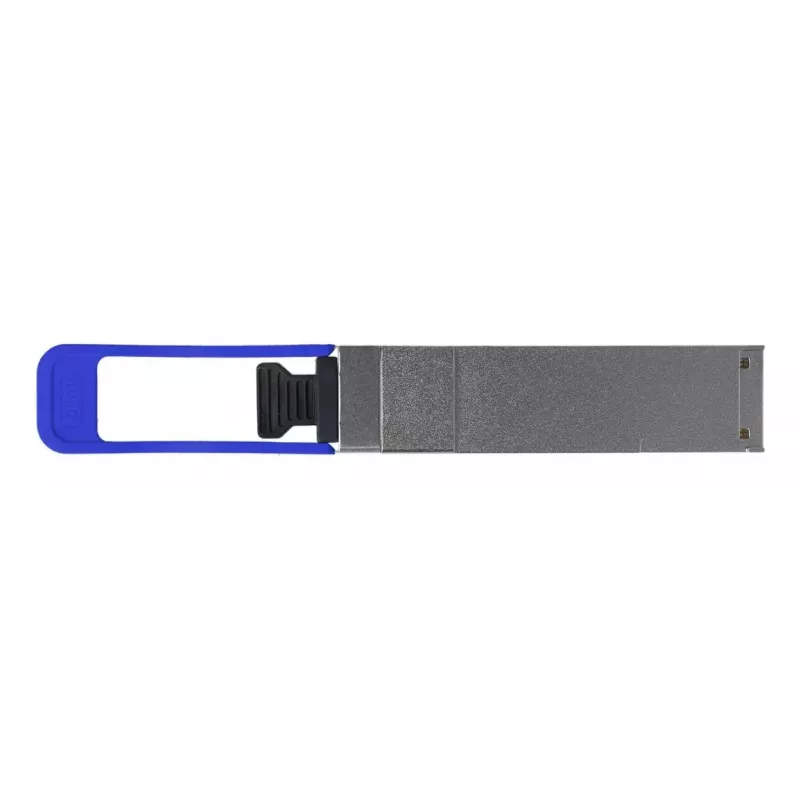

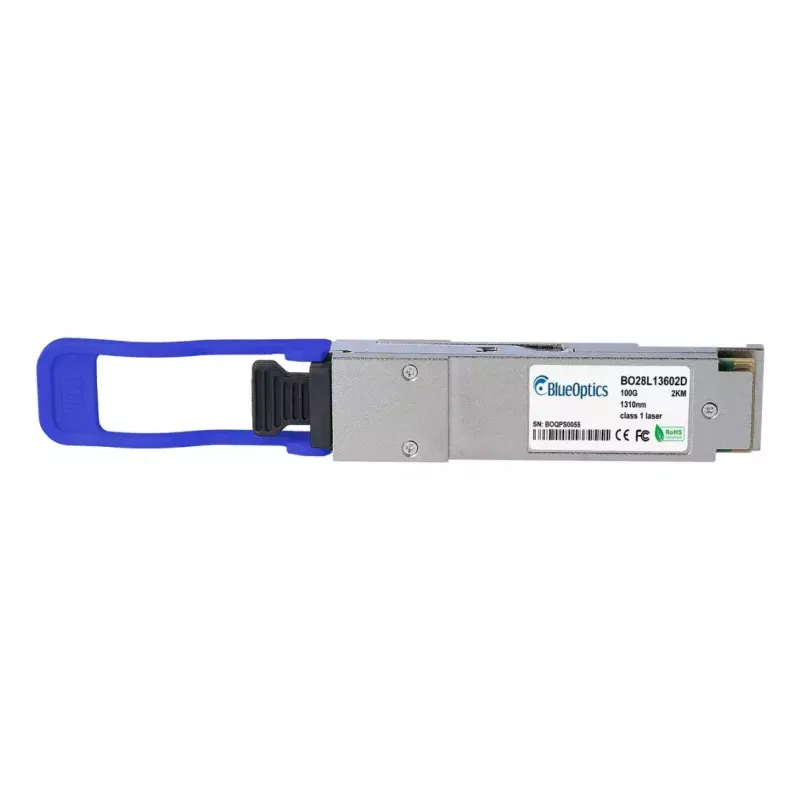

Modulo ricetrasmettitore in fibra ottica BlueOptics SPTSBP2CLCXX-BO 100000 Mbit/s QSFP28

The BlueOptics SPTSBP2CLCXX-BO is a QSFP28 fiber optic transceiver module designed for 100000 Mbit/s (100Gbps) high-speed optical networking. The module uses a QSFP28 interface with LC duplex connectivity and is intended for single-mode fiber links. It comes in a silver housing, has a lightweight design at approximately 40 g, and a long mean time between failures (MTBF) rating to support continuous operation in data center and carrier environments.

Advantages

This QSFP28 transceiver supports 100GBASE-CWDM4 transmission and is built to MSA-compliant form factor and signalling, enabling interoperability with hardware platforms that accept QSFP28 modules. Its single-mode optics and LC duplex connector allow simultaneous transmit and receive channels over two fibers. The module includes digital diagnostic monitoring functionality for real-time parameters such as supply voltage, laser bias current, output power, received power and temperature when supported by the host hardware. The compact, silver lightweight design simplifies installation and replacement in dense networking equipment.

Suitable for

Key specifications

How to use

Install the transceiver into a compatible QSFP28 slot on a switch, router, or other network device that supports 100GBASE-CWDM4 optics and Intel SPTSBP2CLCXX-compatible modules. Connect LC duplex single-mode fiber patch cords to the module’s LC ports, ensuring correct transmit/receive orientation. Verify host device support for DDM/DOM if you need real-time monitoring data. Follow the host vendor’s guidance for hot-plugging, module recognition, and any required firmware or compatibility settings.

Recommendations

Use high-quality single-mode fiber and appropriate LC duplex patch cords to achieve the specified range and signal integrity. Confirm interoperability with your hardware vendor’s compatibility list and enable digital diagnostics on supported systems to assist with monitoring and troubleshooting.
