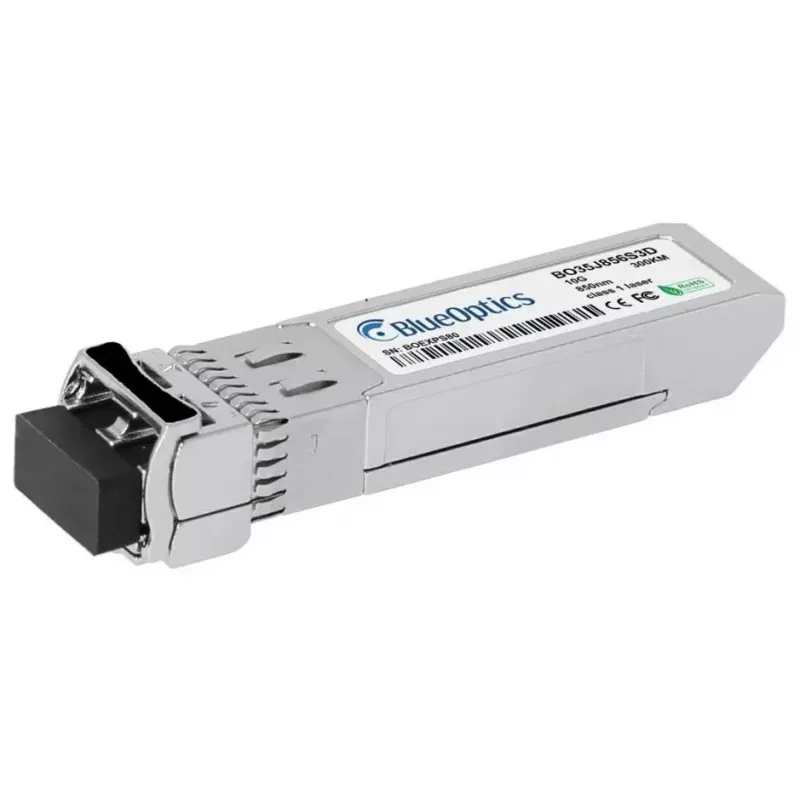

Modulo ricetrasmettitore SFP+ BlueOptics 942 210-001-BO 10000 Mbit/s

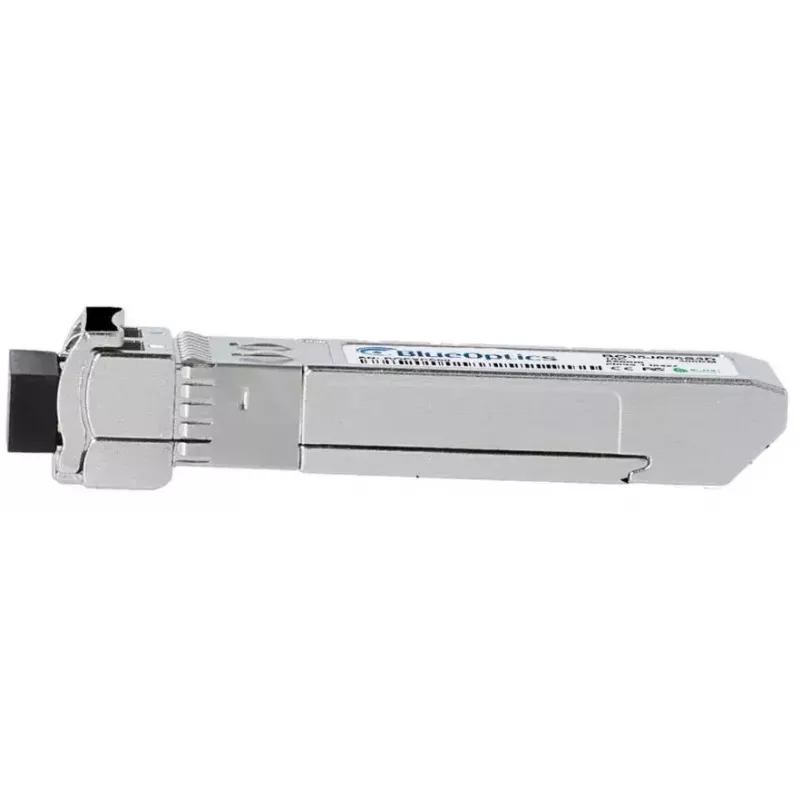

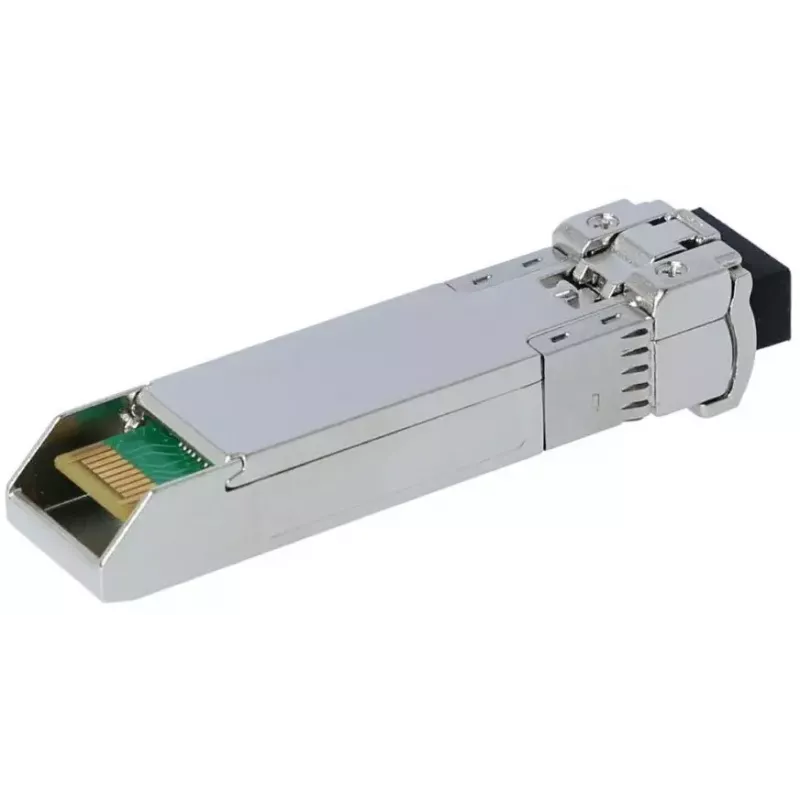

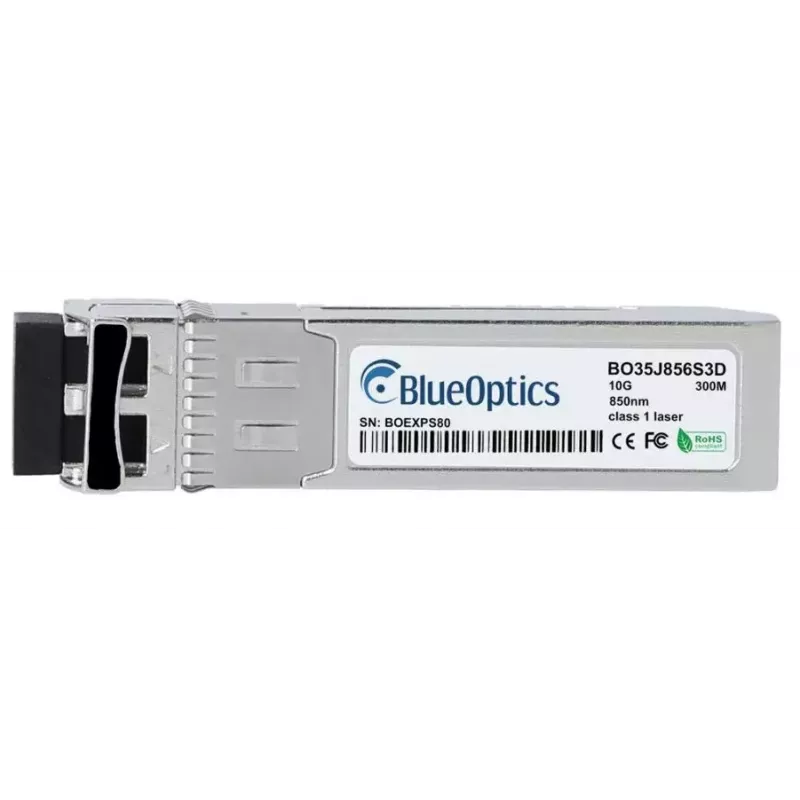

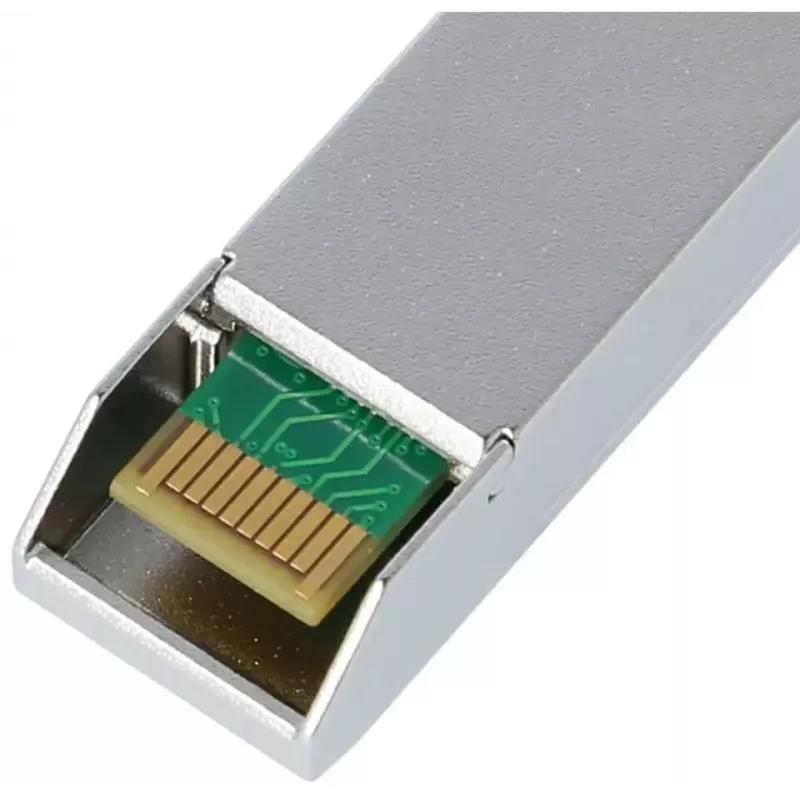

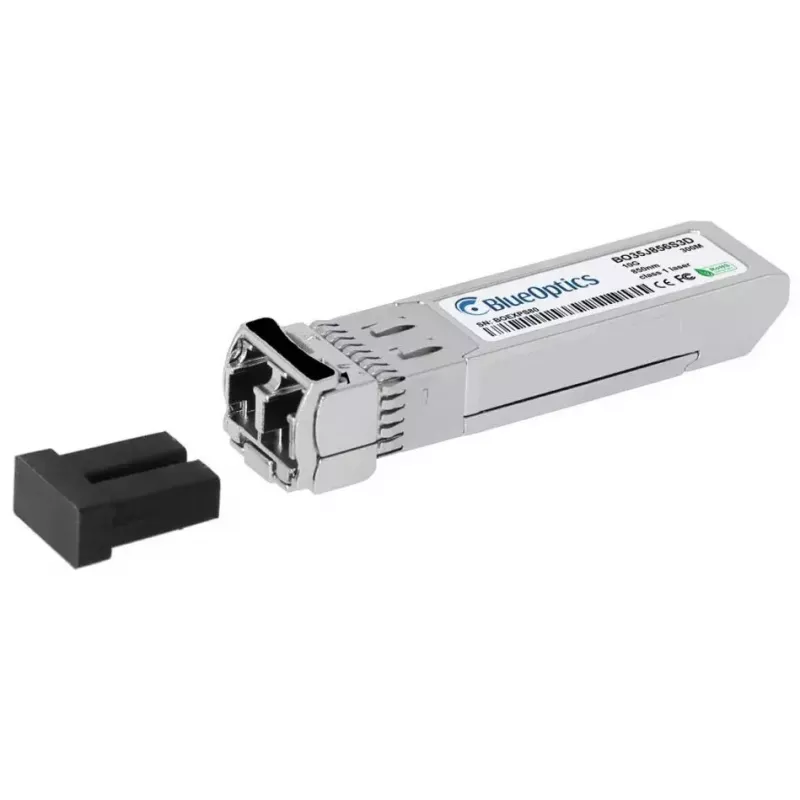

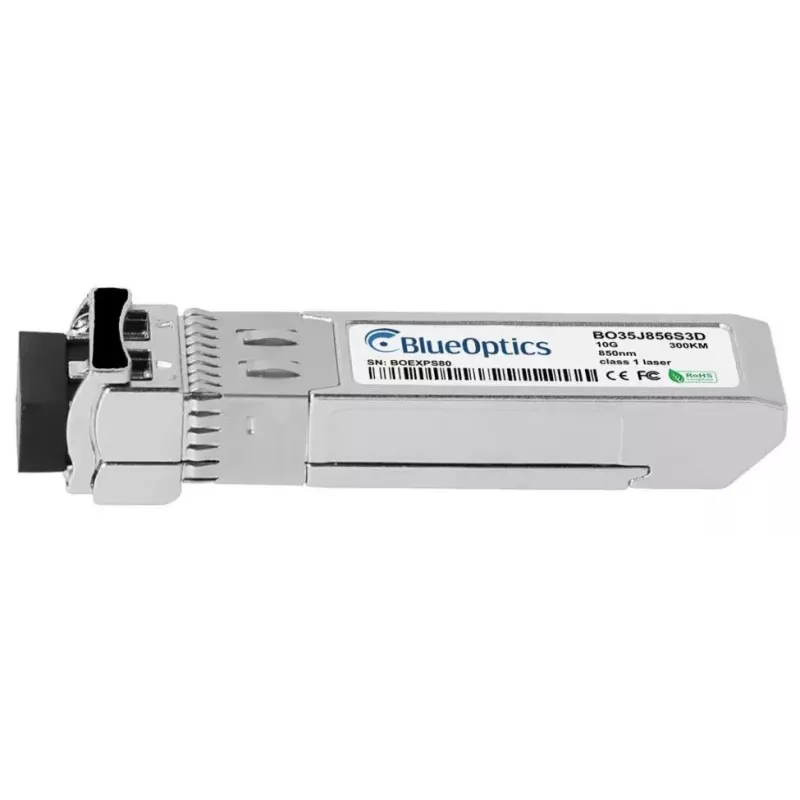

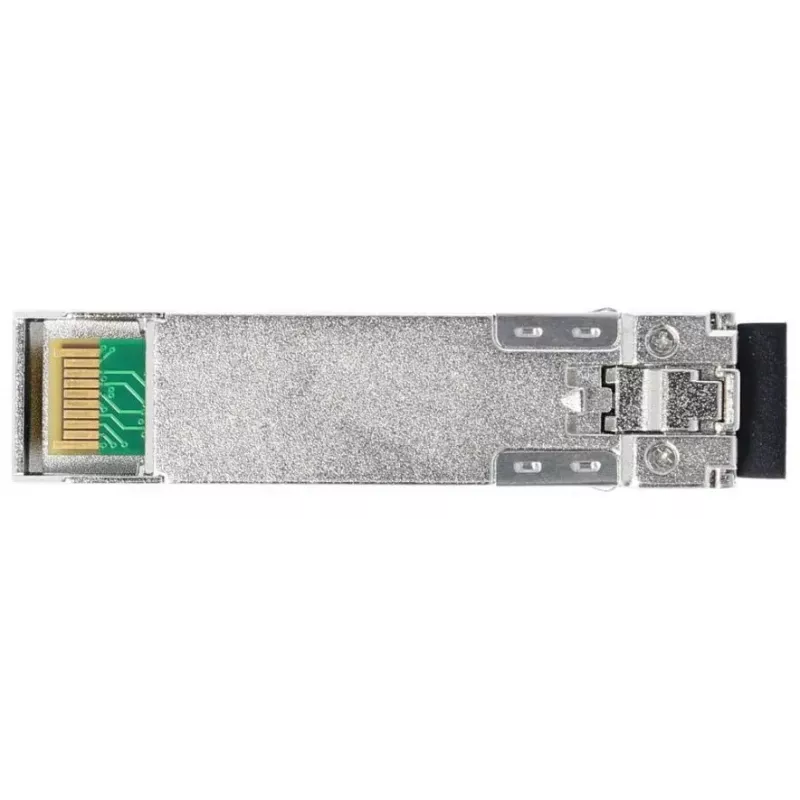

The BlueOptics 942 210-001-BO SFP+ transceiver module provides a compact, MSA-compliant solution for short-range 10 Gbit/s multimode fiber links. Designed for use with Hirschmann-compatible hardware, this module supports a maximum data rate of 10000 Mbit/s, uses an LC (UPC) duplex fiber connector and operates from a 3.3 V supply. Its silver metal housing and small form factor (13.9 mm width, 58.4 mm depth, 12.6 mm height) make it suitable for dense networking environments and media-conversion applications where reliable optical connectivity is required.

Advantages

The module is built to MSA standards for electrical, mechanical and functional interoperability and includes a duplex LC connector for simultaneous send/receive operation over multimode fiber. It supports distances up to 300 m on appropriate multimode cabling and provides digital diagnostic monitoring when the host hardware supports DDM/DOM. The transceiver’s lightweight metal enclosure and standardized interface simplify installation in switches, routers and other network appliances that accept SFP+ modules.

Suitable for

• 10 Gbit/s short-range connectivity over multimode fiber (e.g., 10GBASE-SR links)
• Upgrading or replacing SFP+ ports in switches and routers compatible with Hirschmann modules
• Data center server interconnects and storage system links within the specified distance
• Media converter and network appliance transceiver replacement

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Maximum transfer distance: 300 m (multimode fiber)

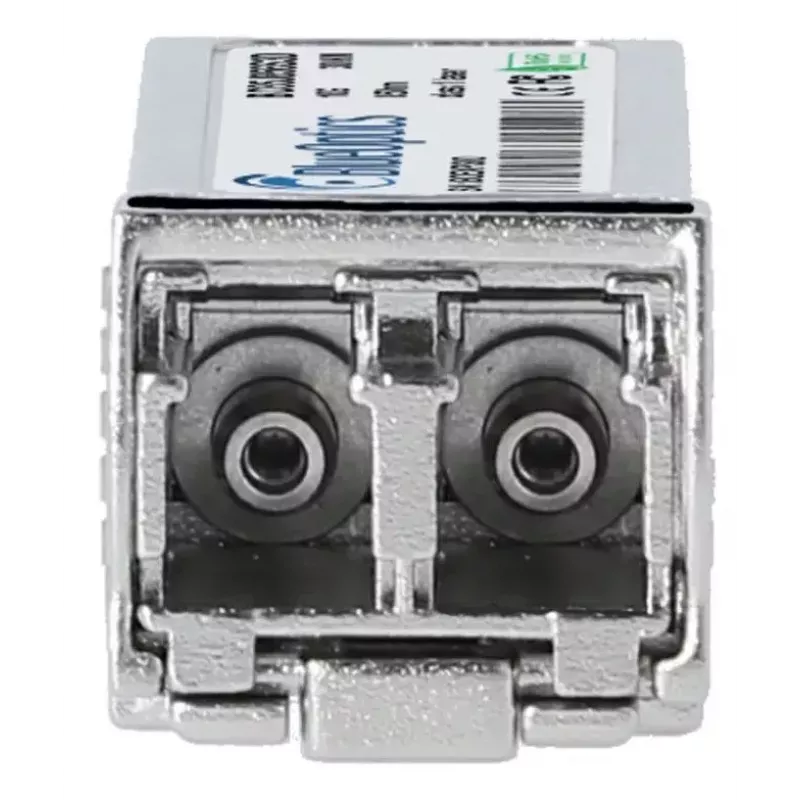

• Fiber optic connector: LC (UPC) duplex
• Operating voltage: 3.3 V
• Product colour: Silver
• Dimensions (W×D×H): 13.9 mm × 58.4 mm × 12.6 mm
• Weight: 0.02 kg

How to use

Insert the SFP+ transceiver into a compatible host port until the module latches securely. Connect LC duplex multimode fiber patch cords ensuring correct transmit/receive orientation. Power the host system and verify link status through the device’s management interface. If supported by the host hardware, enable and read DDM/DOM parameters to monitor supply voltage, laser bias current, output and received power, and temperature. Follow the host vendor’s guidelines for hot-plugging and handling to avoid electrostatic or mechanical damage.

Recommendations

Use multimode fiber rated for 850 nm (OM3/OM4 where applicable) to achieve the specified 300 m range and maintain adequate attenuation margins. Verify host compatibility with Hirschmann-compatible SFP+ modules and confirm that the device firmware supports DDM/DOM if remote diagnostics are required. Handle the module by the housing and keep fiber connectors capped when not in use to prevent contamination.
