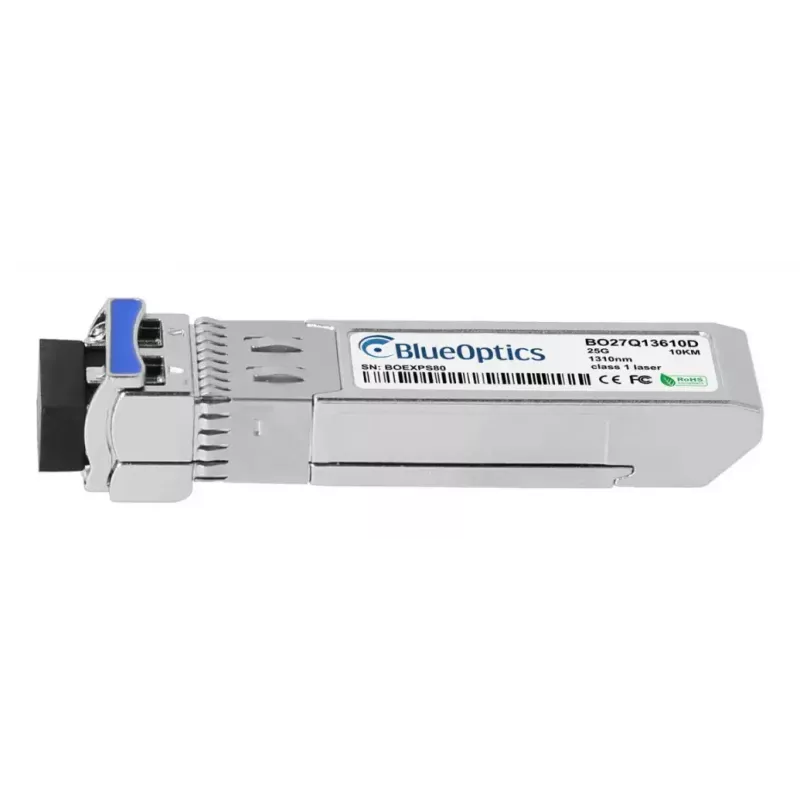

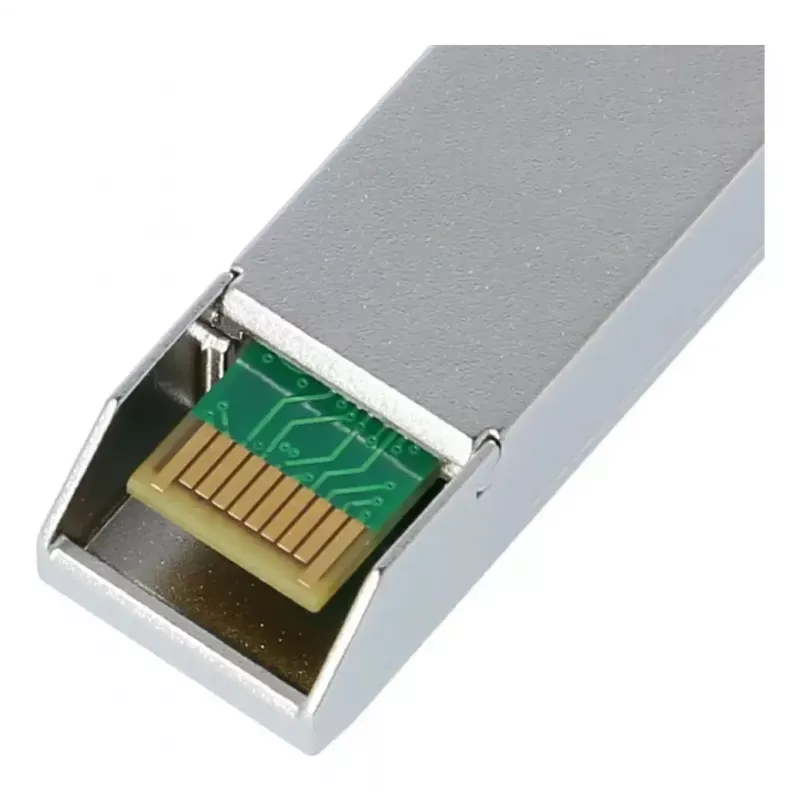

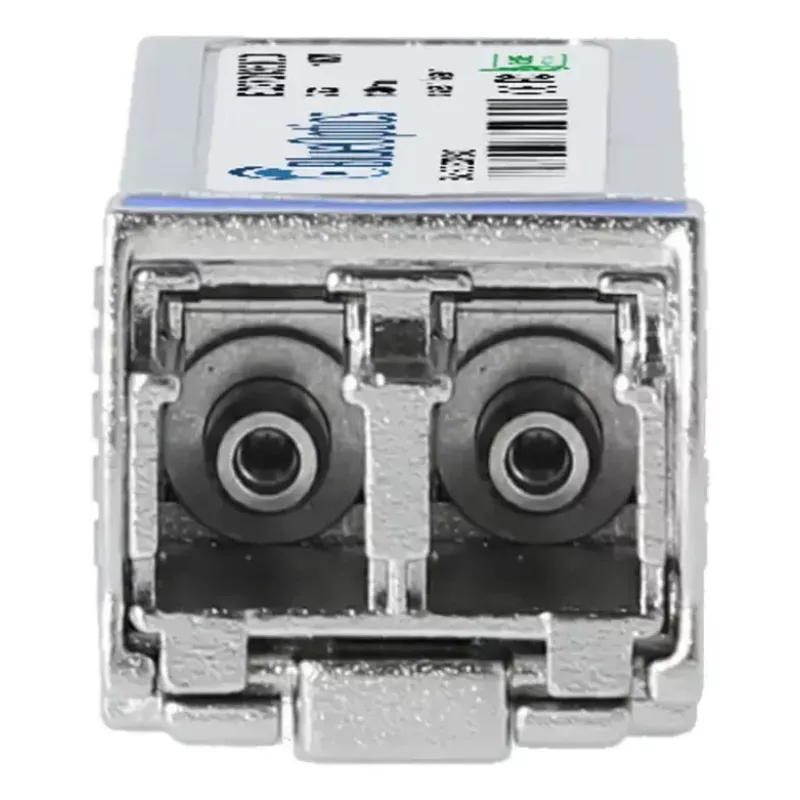

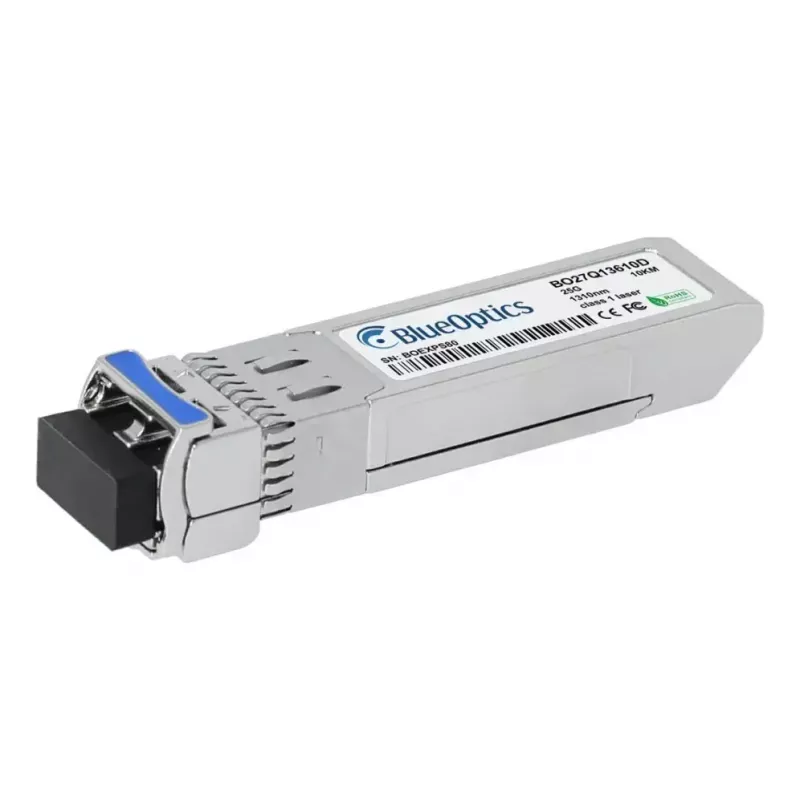

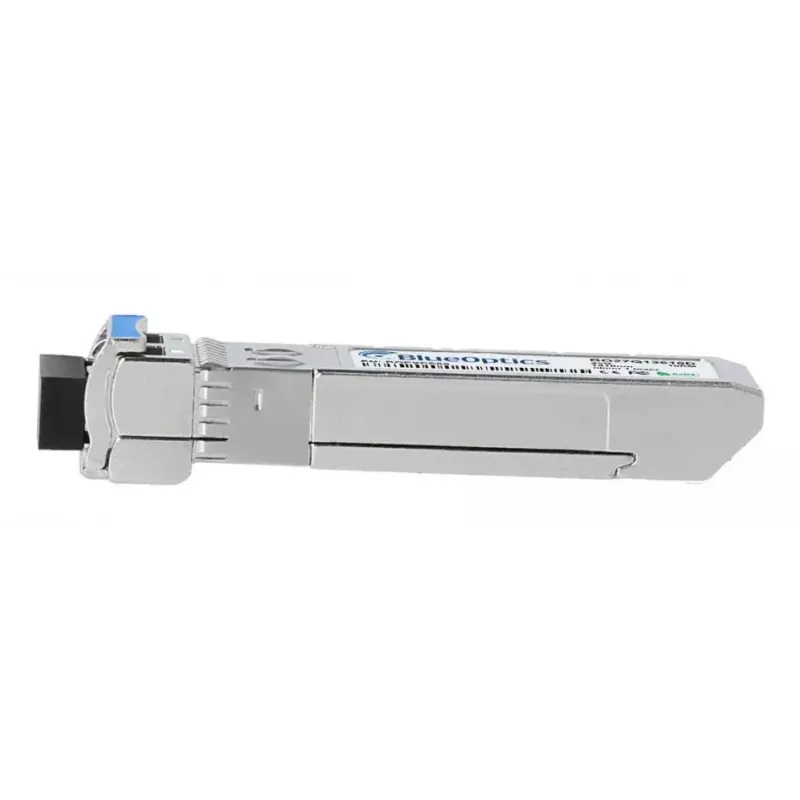

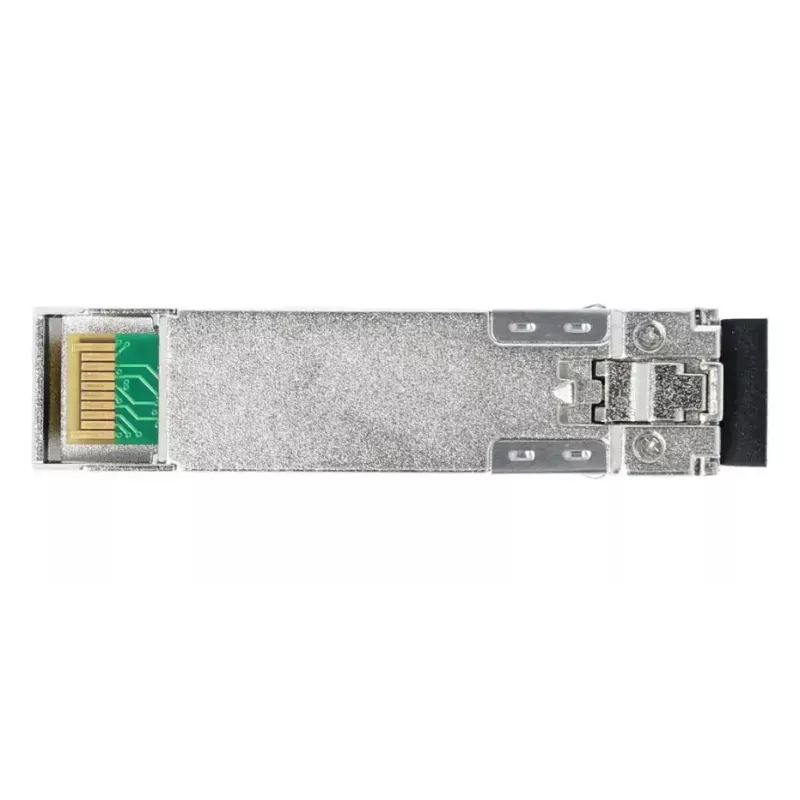

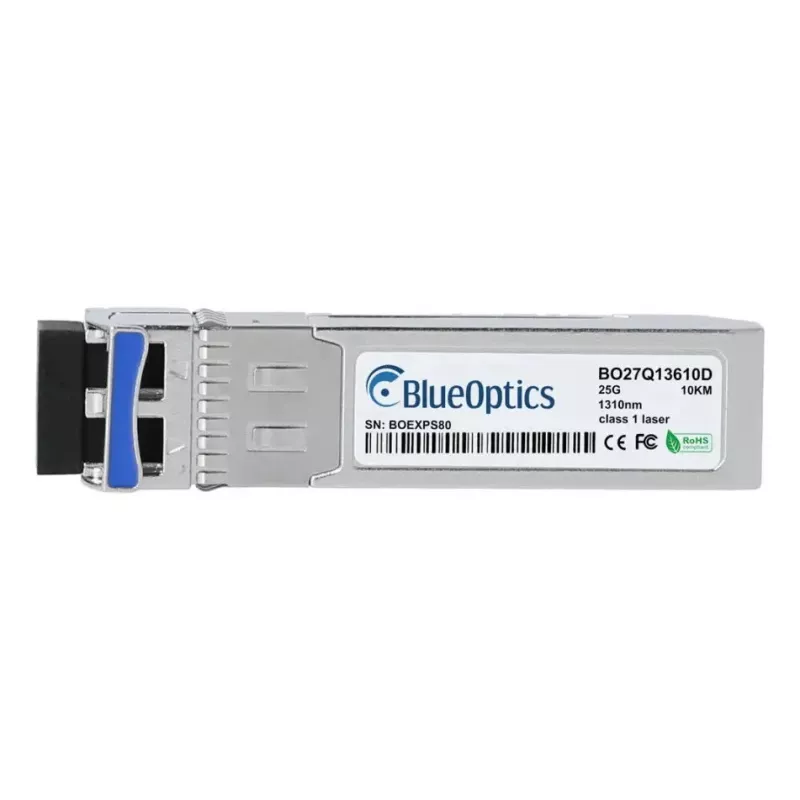

Modulo ricetrasmettitore SFP28 BlueOptics BO27Q13610DIN 25000 Mbit/s

The BlueOptics BO27Q13610DIN is an SFP28 transceiver module designed for high-speed fiber optic links. With a maximum data transfer rate of 25000 Mbit/s and support for links up to 10,000 m, this silver-coloured SFP28 form-factor module is suited for modern data center and enterprise network deployments. The module uses an LC fiber connector and adheres to CE, FCC and RoHS standards, with a reported MTBF of 3,000,000 hours for long-term reliability.

Advantages

The module supports 25 Gbit/s class speeds in an SFP28 footprint, enabling high-density installation in switches and servers that accept SFP28 modules. A long maximum transfer distance of up to 10,000 m allows use on extended single-mode fiber links. Compliance with CE, FCC and RoHS ensures regulatory compatibility and reduced environmental impact, while the compact silver SFP28 form factor provides compatibility with a wide range of transceiver slots.

Suitable for

Key specifications

How to use

Install the BlueOptics BO27Q13610DIN by inserting it into a compatible SFP28 slot on a switch, router or network interface card while the host port is powered down or as recommended by the equipment vendor. Connect an LC-terminated single-mode fiber optic cable between transceivers at each end of the link. Configure the network device for the appropriate speed and link settings as required by your network topology and ensure link status is verified through device LEDs or management interfaces.

Recommendations

Verify compatibility with the host device's supported transceiver list before installation. Use single-mode fiber and high-quality LC connectors for maximum reach and signal integrity. Observe ESD handling precautions when handling the module, and keep protective dust caps on the LC port when not in use.
