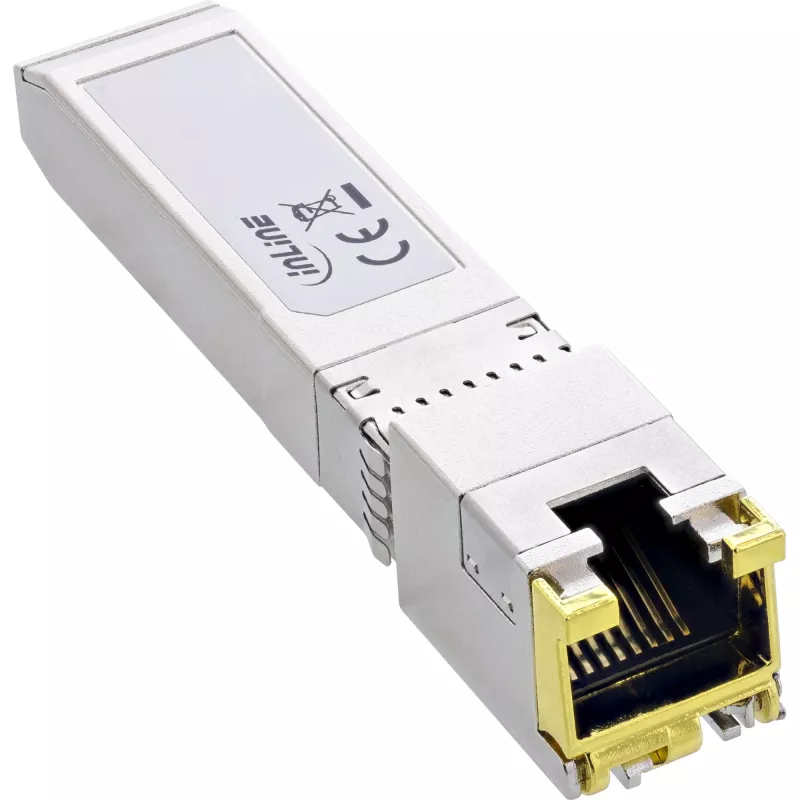

Modulo SFP+ InLine 32335W 10GBase-T RJ-45 30 m

RJ-45 copper connector for 10GBASE-T:Connects classic Ethernet components directly via Cat.6a cables – without fibre optics.
Up to 30 m range:Ideal for short connections in server racks, patch panels or equipment rooms.
Supports auto-negotiation:For 10G/5G/2.5G/1G – automatic adjustment to available bandwidth.
Cost-effective alternative to fibre optics:Saves on expensive fibre optic components, ideal for copper-based infrastructures.
Hot-plug capable and MSA-compatible:Easy to retrofit in many switches and routers with SFP+ slot.

The InLine® SFP+ Module 32335W expands your network with a powerful copper solution for 10GBASE-T applications. With a range of up to 30 metres on Cat.6a cables, the module is ideal for use in data centres, server cabinets or for connecting high-speed devices in close proximity.
Thanks to the standardised RJ-45 interface, servers, NAS systems or switches can be easily connected via existing twisted pair cables – without additional converters or fibre optic technology.
The module supports auto-negotiation for 10G, 5G, 2.5G and 1G, so the connection automatically adapts to the connected device and the available bandwidth.
With a power consumption of up to 3 W, the module is slightly warmer than fibre optic transceivers, but allows for easy retrofitting on a limited budget or with infrastructure restrictions.
The hot-plug function and MSA compatibility ensure easy integration into existing systems – without interrupting operation.

Form factor: SFP+ module (copper)
Standard: 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T
Connector: RJ-45 (8P8C)
Range: up to 30 m (at 10G over Cat.6a)
Compatibility: Auto-negotiation for 10G/5G/2.5G/1G
Hot-plug capable: Yes
Voltage: 3.3 V (3.13–3.47 V)
Current consumption: approx. 900 mA
Power consumption: max. 3.0 W
Operating temperature: 0 °C to +65 °C
DDM monitoring: not supported
MSA SFP+ compliant

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335W. SFP transceiver type: Copper, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Input voltage: 3.3 V, Power consumption (typical): 3 W. Compliance certificates: CE, TÜV mark. Width: 67 mm, Depth: 0.25 mm, Height: 13 mm. Package width: 60 mm, Package depth: 120 mm, Package height: 15 mm

How to use

Insert the SFP+ module into a compatible SFP+ port on a switch, router or media converter until it latches securely. Connect an RJ-45 terminated Cat6 or Cat6a cable between the module and the remote device. Ensure both ends are powered and configured for 10GBase-T operation; check the host device interface settings if link does not establish. Monitor port LEDs or management interface for link and status information. When removing the module, disengage the latch and pull straight out to avoid damaging the slot.

Recommendations

Use high-quality Cat6 or Cat6a cables for reliable 10G performance and keep cable length within the specified 30 m limit. Verify SFP+ copper module support in the host device firmware and documentation to ensure full compatibility and to avoid potential issues with power or link stability.
