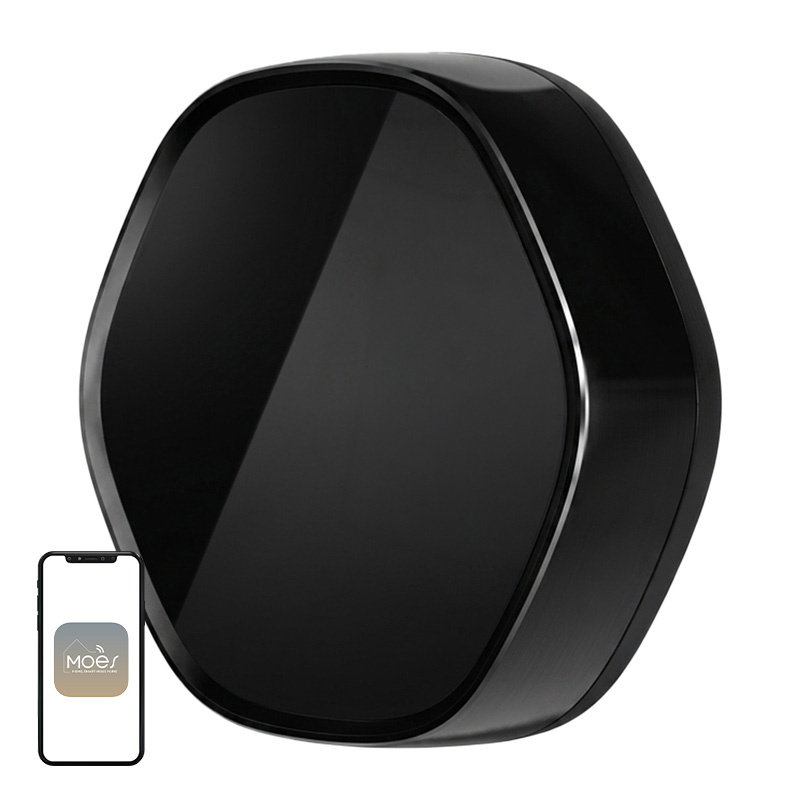

MOES MHUB gateway Wi-Fi/ZigBee/BLE/IR

The MOES MHUB stands out as a multi-protocol hub that consolidates Wi-Fi, ZigBee 3.0, Bluetooth Low Energy, and Infrared control into a single compact device. Instead of juggling separate bridges for smart bulbs, sensors, and IR appliances, this gateway unifies them under one app, making it a practical backbone for a mixed smart home.

Highlights

• Four protocols in one: Wi-Fi, ZigBee 3.0, BLE, and IR (38KHz)
• Control IR appliances like TVs and ACs from up to 10 meters line-of-sight
• ZigBee and BLE mesh range up to 30 meters indoors
• Works with Tuya Smart and Smart Life apps; supports Amazon Alexa and Google Assistant
• Powered by a standard 5V/1A micro USB supply

In daily use

The MHUB acts as a central translator. Pair ZigBee sensors and BLE devices directly, then use the built-in IR blaster to command legacy entertainment gear. Scenes and automations can link these different device types, so a ZigBee motion sensor can trigger an IR-controlled air conditioner. The status LED gives a quick visual cue, and the ABS housing keeps it light and unobtrusive.

Full specifications

• Wireless protocols: Wi-Fi (802.11 b/g/n 2.4GHz), ZigBee 3.0, Bluetooth Low Energy, Infrared (38KHz)
• IR control range: up to 10 m (line of sight)
• ZigBee/BLE control range: up to 30 m (indoor, open space)
• Power input: DC 5V/1A via micro USB
• App compatibility: Tuya Smart / Smart Life
• Voice assistants: Amazon Alexa, Google Assistant
• Operating temperature: -10°C to 50°C
• Operating humidity: 0% to 95% RH (non-condensing)
• Housing material: ABS
• Colour: White

Final note

For users who need a single hub to bridge modern mesh protocols and legacy infrared devices, the MHUB delivers a clean, app-driven solution without unnecessary complexity.
