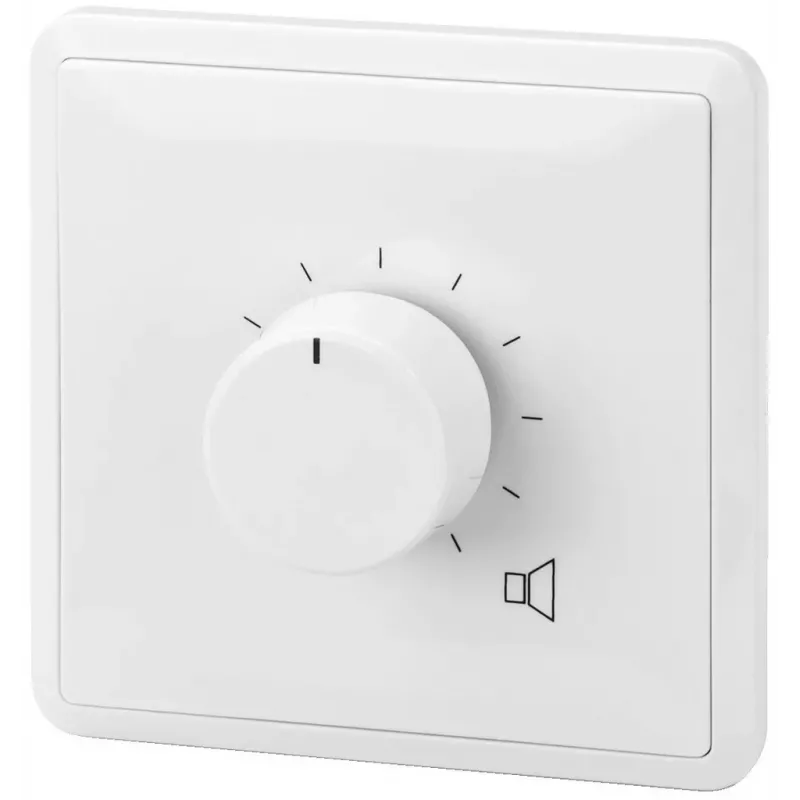

MONACOR ATT-306PEU regolatore rotativo linea 100V 6W bianco

The MONACOR ATT-306PEU is a high-quality 100V line rotary attenuator designed for precise volume control in public address systems. With a power rating of 6W RMS and a stepped attenuation range of 0-30 dB, this flush-mounted wall unit offers reliable performance for mono audio applications. Its sleek white ABS plastic faceplate (80x80mm) blends seamlessly into any environment, while screw terminals ensure secure connections.

Advantages

Stepped attenuation with 10 positions allows exact volume adjustment. The rotary knob provides intuitive control, and the compact design fits standard flush-mount boxes. Suitable for 100V line PA systems, it maintains audio quality across a frequency range of 50-18,000 Hz.

Suitable for

• Public address systems in schools, offices, and retail spaces
• Background music volume control in restaurants and hotels
• Zone volume adjustment in multi-room audio installations

Key specifications

• Product Type: 100V Line Rotary Attenuator
• Power Rating (RMS): 6 W
• Input Voltage: 100 V Line
• Attenuation Steps: 10
• Attenuation Range: 0 - 30 dB
• Frequency Response: 50 - 18,000 Hz
• Installation Type: Flush-mounted (Wall)
• Connection Type: Screw Terminals
• Control Type: Rotary Knob
• Color: White
• Material: ABS Plastic
• Faceplate Dimensions (W x H): 80 x 80 mm
• Mounting Depth: 67 mm
• Number of Channels: 1 (Mono)

Recommendations

For optimal performance, use with 100V line amplifiers and speakers. Ensure proper wiring and secure mounting. Ideal for professional audio installations requiring reliable volume control.
