ASR Prime Combo antenna passiva esterna per TV VHF/UHF con filtro LTE/5G

Outdoor television antenna engineered for reliable reception of digital terrestrial broadcasts. The ASR Prime Combo delivers a strong 10 dBi gain on VHF and 12 dBi on UHF, ensuring clear DVB-T/T2 and DAB+ signals even in fringe areas. Its integrated LTE/5G filter rejects mobile interference up to 694 MHz, preserving picture quality.

Advantages

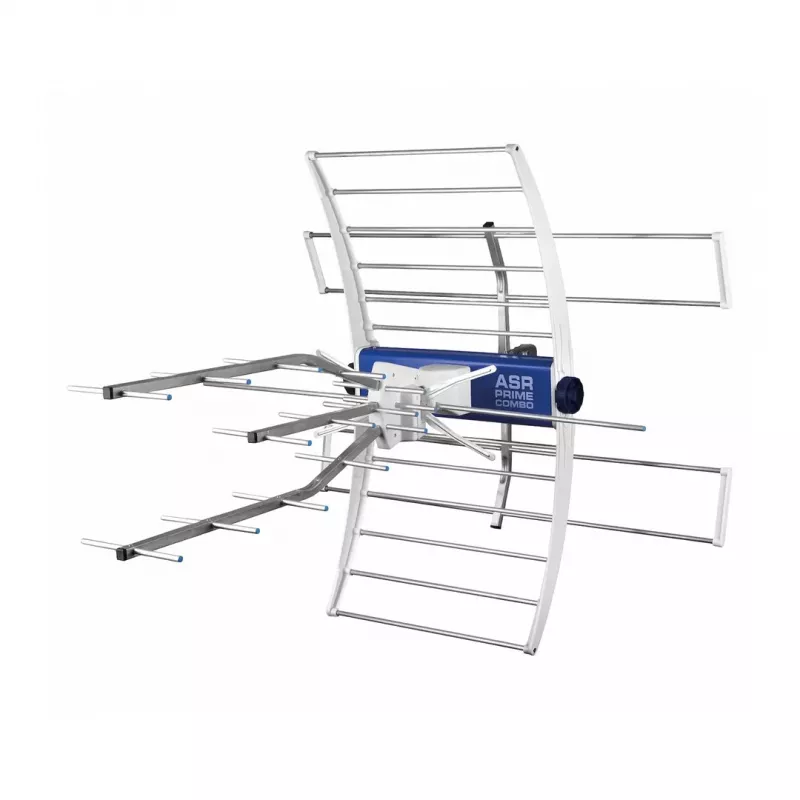

Built with a multi-element Yagi design, this passive antenna provides directional reception with horizontal and vertical polarization for maximum flexibility. The aluminum construction and UV-resistant plastic housing withstand harsh weather, while the mast clamp supports poles up to 60 mm in diameter. The F-type connector ensures a secure, low-loss connection.

Suitable for

• Homes in areas with moderate to weak signal strength
• Installations requiring rejection of LTE/5G interference
• Outdoor mounting on masts, walls, or balconies
• Receiving DVB-T/T2 and DAB+ broadcasts

Key specifications

• Frequency range: VHF 174-230 MHz, UHF 470-694 MHz
• Gain: 10 dBi (VHF), 12 dBi (UHF)
• Impedance: 75 Ohm
• Connector: F-type
• Built-in LTE/5G filter up to 694 MHz
• Polarization: Horizontal and vertical
• Directional multi-element design
• Material: Aluminum, UV-resistant plastic
• Mast clamp for up to 60 mm diameter

Recommendations

For best results, mount the antenna as high as possible and aim it toward the nearest transmitter. Use a high-quality coaxial cable with proper F-type connectors to minimize signal loss. Pair with a mast amplifier if cable runs exceed 20 meters.
