Panorama Antennas TEL-PAN-5GOMNI-BUNDLE router 5G LTE RUTX50 con bundle antenna direzionale OMNI 5m

Experience true 5G NR performance with the Panorama Antennas TEL-PAN-5GOMNI-BUNDLE, pairing a Teltonika RUTX50 dual-SIM 5G router with a high-gain 4x4 MIMO omnidirectional antenna on a 5-meter cable. This bundle delivers Cat 20 LTE fallback and dual-band Wi-Fi 5 for demanding industrial connectivity.

Overview

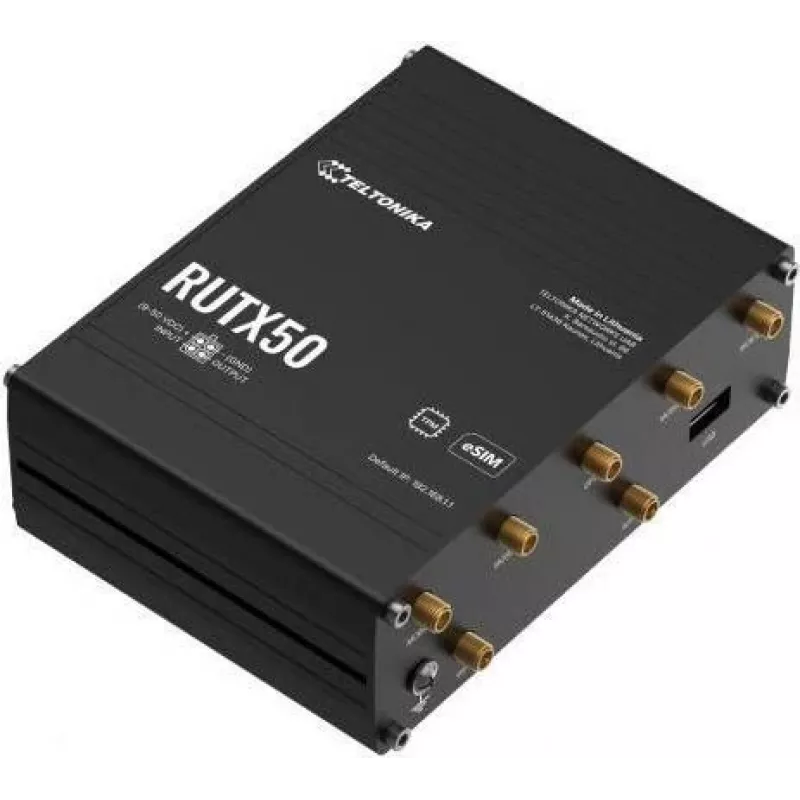

The RUTX50 is a robust 5G router powered by a quad-core ARM Cortex A7 processor, offering five Gigabit Ethernet ports, dual-SIM failover, and extensive VPN support. The included Panorama 5G omnidirectional antenna covers 617–960 MHz and 1710–6000 MHz, ensuring reliable reception across global 5G and LTE bands. With an IP30-rated router and IP66/IP67-rated antenna, this bundle is built for challenging environments.

What stands out

• True 5G NR SA/NSA with 4G LTE Cat 20 fallback for uninterrupted connectivity.
• 4x4 MIMO omnidirectional antenna with 5-meter cable for flexible placement.
• Dual Mini-SIM slots with automatic failover for carrier redundancy.
• Five Gigabit Ethernet ports (1 WAN, 4 LAN) for high-speed wired networking.
• Comprehensive VPN support including WireGuard, OpenVPN, and IPsec.
• GNSS support for GPS, GLONASS, BeiDou, Galileo, and QZSS.

Technical details

• Network: 5G NR SA/NSA, 4G LTE Cat 20, 3G, 2G
• Wi-Fi: Dual-band 802.11ac Wave 2, 2x2 MIMO
• Ethernet: 5x Gigabit (1 WAN, 4 LAN)
• SIM: Dual Mini-SIM (2FF)
• Antenna connectors: 4x SMA for cellular, 2x RP-SMA for Wi-Fi
• Processor: Quad-core ARM Cortex A7, 710 MHz
• Memory: 256 MB RAM, 256 MB Flash
• OS: RutOS (OpenWrt-based)
• Power: 9–50 VDC
• Router IP rating: IP30; Antenna IP rating: IP66/IP67
• Antenna frequency: 617–960 MHz / 1710–6000 MHz
• Antenna cable length: 5 meters
• VPN: OpenVPN, IPsec, WireGuard, PPTP, L2TP, DMVPN, SSTP, Stunnel

Our verdict

A future-proof 5G connectivity bundle that combines carrier-grade routing with a rugged, high-performance antenna. Ideal for industrial IoT, mobile applications, and remote sites where reliable, high-speed internet is non-negotiable.
