Patch panel schermato Equip 24 porte Cat.6, grigio chiaro

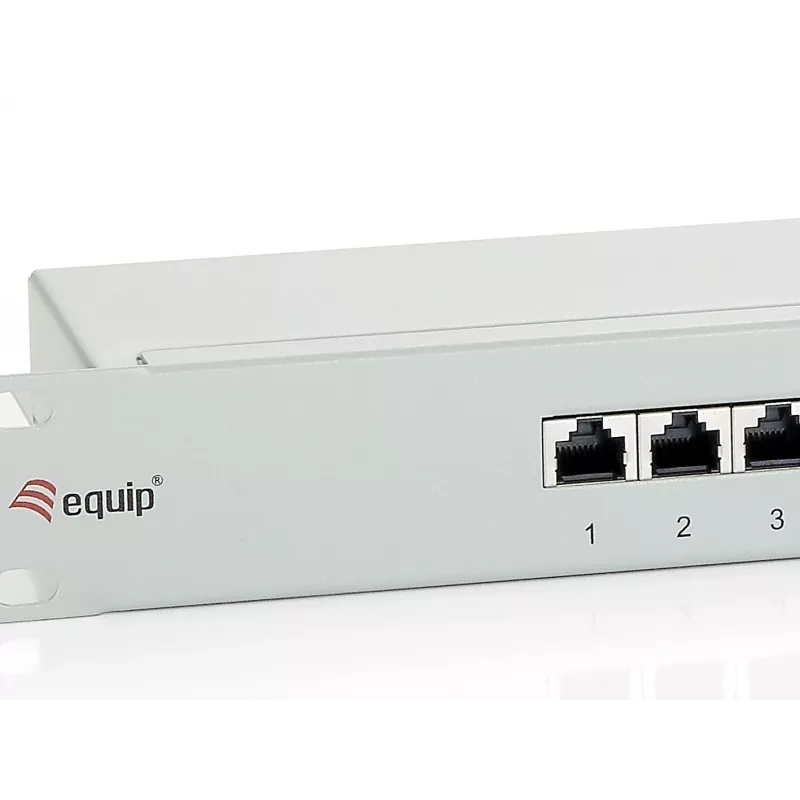

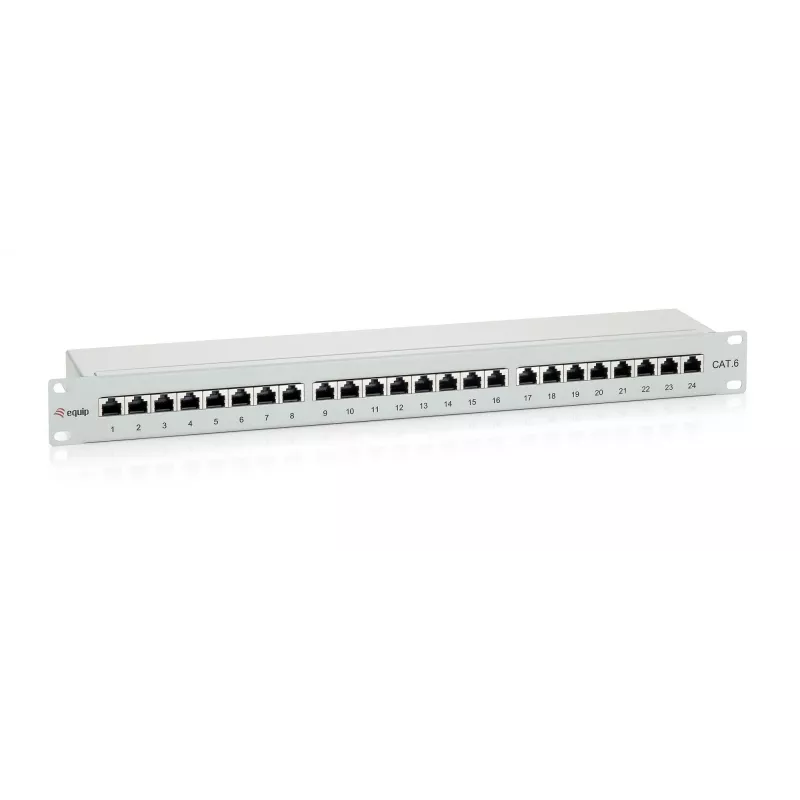

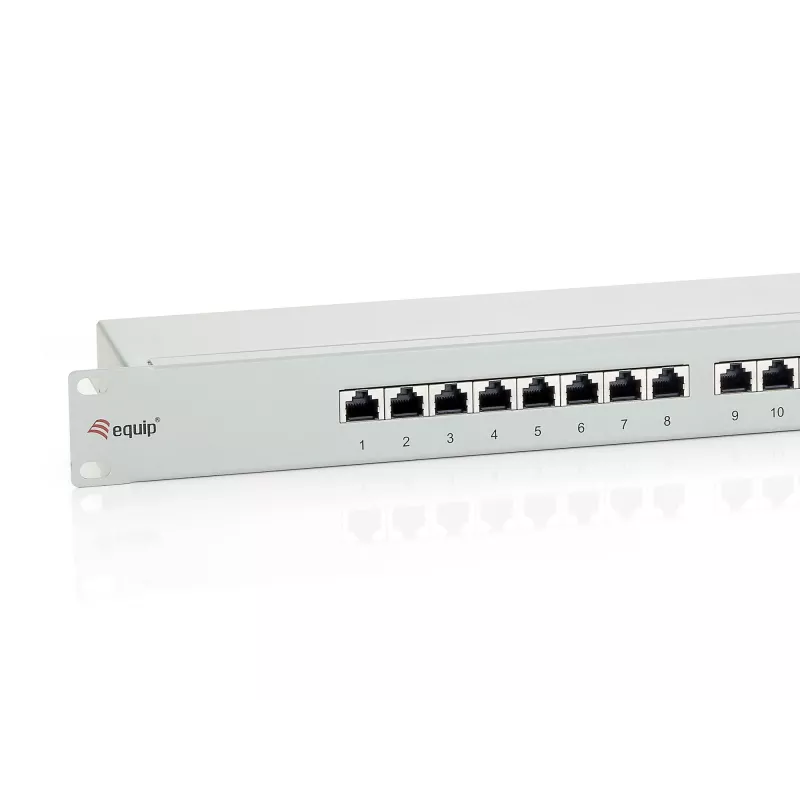

The equip® Patch Panel is a 19" 1U network distribution unit designed for structured cabling installations. It provides 24 shielded RJ45 ports with gold-plated contacts and supports Cat6 cabling. The panel integrates a cable management system for improved routing and strain relief and is compatible with both LSA and 110 termination standards. Rack-mount form factor and a light grey finish make it suitable for professional network racks.

Advantages

The patch panel offers shielded RJ45 ports to reduce electromagnetic interference and ensure stable Cat6 performance. Integrated cable management simplifies cable routing and strain relief. Numbered ports allow quick identification during installation and maintenance. Gold-plated contacts improve contact reliability and corrosion resistance.

Suitable for

• Server rooms and data cabinets
• Office network distribution
• Structured Cat6 cabling projects
• Environments requiring shielded connections (STP)

Key specifications

• Ports: 24 shielded RJ45
• Category: Cat6 compatible
• Mounting: 19" rack, 1U
• Termination standards: LSA and 110
• Contacts: gold-plated
• Dimensions (approx.): 44 mm W × 483 mm H × 109 mm D
• Weight: 1.7 kg
• Colour: Light grey
• Manufacturer part number (MPN): 326324

How to use

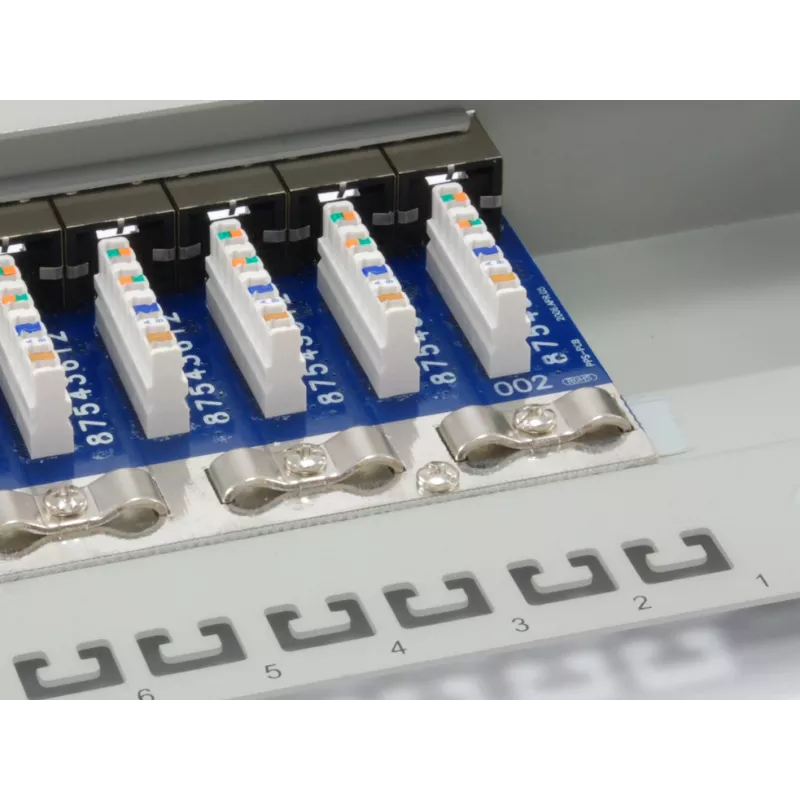

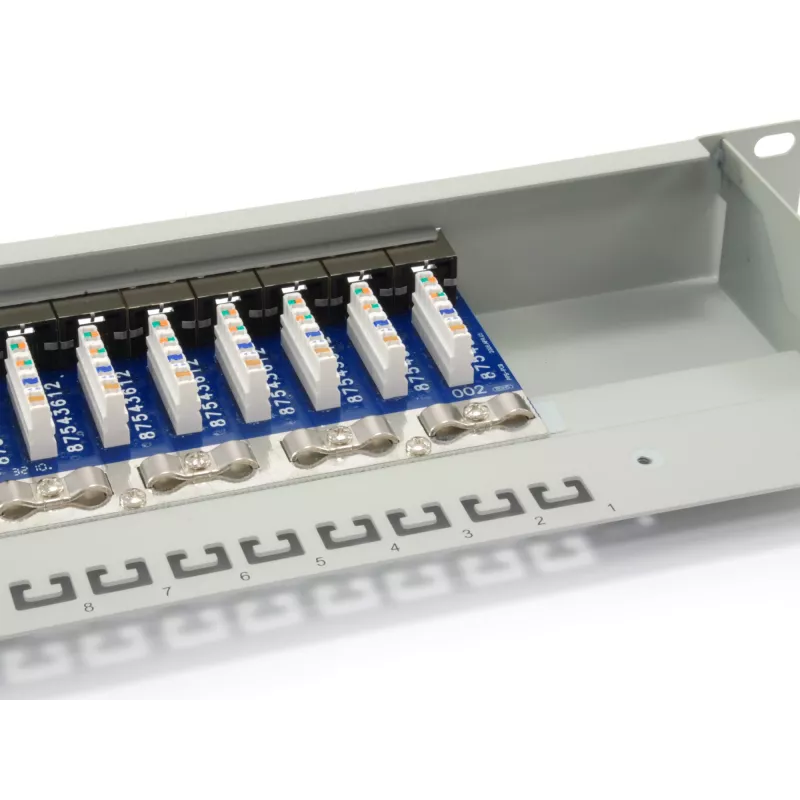

Mount the patch panel into a 19" rack using appropriate screws and cage nuts. Terminate horizontal cables to the rear using LSA or 110 tools according to the cable colour code for Cat6. Route cables through the integrated management channels and secure them for strain relief. Plug shielded RJ45 patch cords into the front ports to connect network devices or switches. Verify connectivity and performance with standard network testers.

Recommendations

For optimal performance, use equip® shielded Cat6 patch cords and maintain proper grounding for the shielded panel and cabling. Keep cable bends within manufacturer bend-radius limits and label both ends of each run to simplify maintenance.
