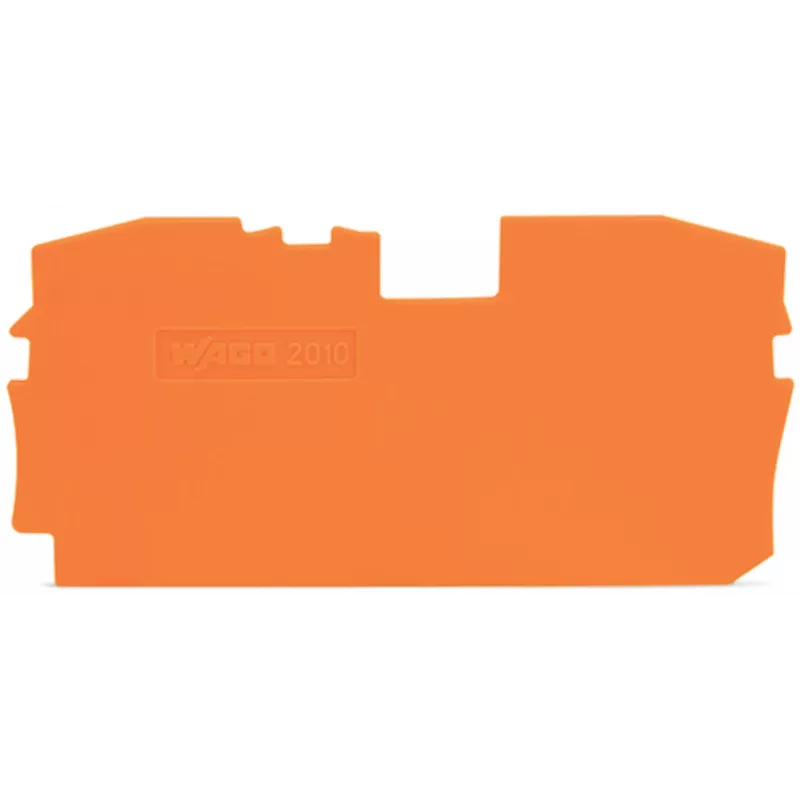

Piastra terminale e intermedia WAGO 2010-1292, arancione, spessore 1 mm, lunghezza 67,2 mm, altezza 33,5 mm, per serie TOPJOB® S 2010

The WAGO 2010-1292 is a high-quality end and intermediate plate designed for use with the WAGO TOPJOB® S 2010 Series terminal blocks. This orange polyamide (PA66) plate provides electrical isolation and mechanical separation in control panels and automation systems. With a thickness of 1 mm, length of 67.2 mm, and height of 33.5 mm, it snaps easily onto the terminal block assembly.

Advantages

• Reliable electrical isolation and mechanical separation
• Snap-on mounting for quick installation
• Made from self-extinguishing polyamide (PA66) with UL94 V-0 flammability rating
• Wide operating temperature range from -35 to +105 °C
• RoHS and REACH compliant

Suitable for

• Industrial control panels
• Building automation
• Machinery and equipment
• Electrical distribution systems

Key specifications

• Product Type: End and Intermediate Plate
• Series: WAGO TOPJOB® S 2010
• Color: Orange
• Material: Polyamide (PA) 66
• Thickness: 1 mm
• Length: 67.2 mm
• Height: 33.5 mm
• Weight: 2.36 g
• Operating Temperature: -35 to +105 °C
• Flammability Rating: UL94 V-0
• Pollution Degree: 2
• Approvals: UL, CSA, VDE

Recommendations

For optimal performance, use this end plate with WAGO TOPJOB® S 2010 series terminal blocks. Ensure proper snap-on engagement for secure mounting.
