Portkeys HS8 monitor 8" 1920x1200 1200cd/m² IPS touchscreen HDMI

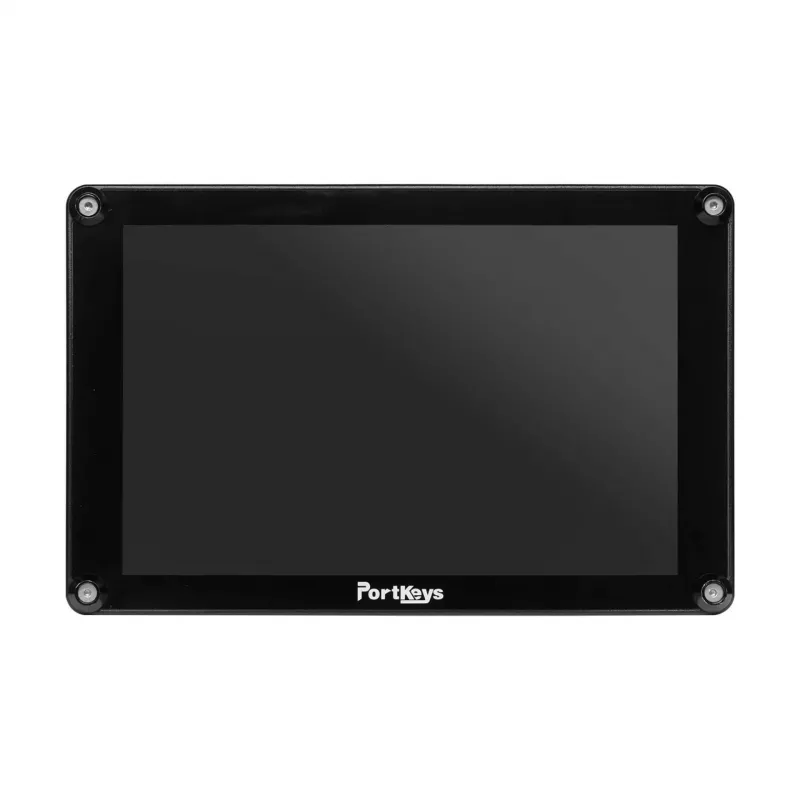

The Portkeys HS8 is a professional 8-inch on-camera monitor designed for filmmakers and videographers who demand accurate exposure, focus, and color tools. With a bright 1200 cd/m² IPS LCD panel and 1920x1200 resolution, it delivers clear visibility even in bright outdoor conditions. The touchscreen interface provides intuitive control over advanced monitoring features including waveform, vectorscope, histogram, false color, peaking, zebras, and anamorphic de-squeeze. Built with a durable aluminum alloy housing and equipped with HDMI input and loop-through output, the HS8 supports up to DCI 4K24 / UHD 4K30 signals. Power flexibly via a NP-F battery plate or DC 7-24V input. 3D LUT support via USB-A port allows custom color grading previews.

Advantages

High brightness (1200 nits) ensures visibility in sunlight. Touchscreen simplifies menu navigation and tool activation. Comprehensive monitoring suite includes waveform, vectorscope, histogram, false color, peaking, zebras, and grids. Anamorphic de-squeeze for anamorphic lenses. 3D LUT import for on-set color grading. Durable aluminum alloy construction. Multiple 1/4"-20 mounting points for rigging.

Suitable for

• DSLR and mirrorless camera operators needing accurate exposure and focus
• Cinematographers using anamorphic lenses
• Studio and field production requiring a bright, portable monitor
• Color-critical workflows with 3D LUT support

Key specifications

• Display: 8" IPS LCD, 1920x1200, 16:10
• Brightness: 1200 cd/m²
• Contrast: 1000:1
• Viewing Angle: 178° H/V
• Touchscreen: Yes
• Video Input: 1x HDMI (up to DCI 4K24 / UHD 4K30)
• Video Output: 1x HDMI (loop-through)
• Audio Output: 3.5mm headphone jack
• Power: DC 7-24V or NP-F battery plate
• Power Consumption: 12W
• LUT Support: 3D LUTs via USB
• Monitoring Tools: Waveform, Vectorscope, Histogram, False Color, Peaking, Zebras, Grids, Anamorphic De-squeeze
• Construction: Aluminum alloy
• Mounting: 3x 1/4"-20 thread
• Firmware Update: USB-A port

Recommendations

The Portkeys HS8 is an excellent choice for videographers who need a bright, feature-rich monitor without breaking the bank. Its touchscreen and comprehensive toolset make it a versatile companion for any shoot.
