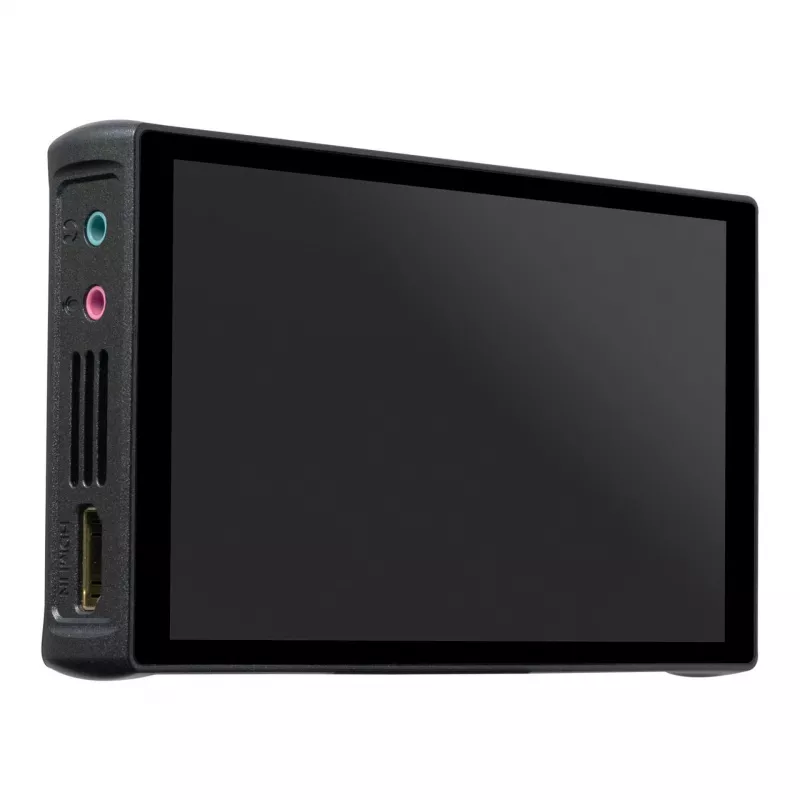

Portkeys PL5 monitor live-stream 5,4"

The Portkeys PL5 is a compact 5.4-inch live stream monitor designed for professional videography and live streaming. With its high-brightness IPS LCD touchscreen and comprehensive monitoring tools, it provides accurate image evaluation in the field. The monitor supports HDR (HLG, PQ) and 3D LUTs via USB-C, making it a versatile tool for filmmakers and content creators.

Advantages

High brightness of 500 nits ensures clear visibility even in bright outdoor conditions. The touchscreen interface allows intuitive control of monitoring functions. With support for HDR and 3D LUTs, you can preview your final look on set. The compact size and lightweight ABS construction make it easy to mount on a camera rig or gimbal.

Suitable for

• Live streaming and broadcasting
• Video production and filmmaking
• On-camera monitoring for DSLR and mirrorless cameras
• Studio and field monitoring

Key specifications

• Display: 5.4-inch IPS LCD, 1920x1080 Full HD
• Brightness: 500 nits
• Touchscreen: Yes
• Video Input/Output: 1x HDMI Type A each
• Audio Output: 3.5mm headphone jack
• Power Input: DC 7-24V, USB-C 5V
• Battery Plate: NP-F series (e.g., NP-F550/F750/F970)
• Power Consumption: 6W
• HDR Support: HLG, PQ
• 3D LUT Support: Yes (via USB-C)
• Monitoring Tools: Waveform, Vectorscope, Histogram, Peaking, False Color, Zebras, Grids, Aspect Ratios, Anamorphic De-squeeze, Zoom, Image Flip, Cross Hatch, Color Temperature, Custom RGB
• Construction: ABS Plastic
• Mounting: 2x 1/4"-20 thread
• Firmware Update: USB-C

Recommendations

The Portkeys PL5 is an excellent choice for videographers who need a reliable, feature-rich monitor in a compact form factor. Its touchscreen and comprehensive tools make it a valuable addition to any camera setup.
