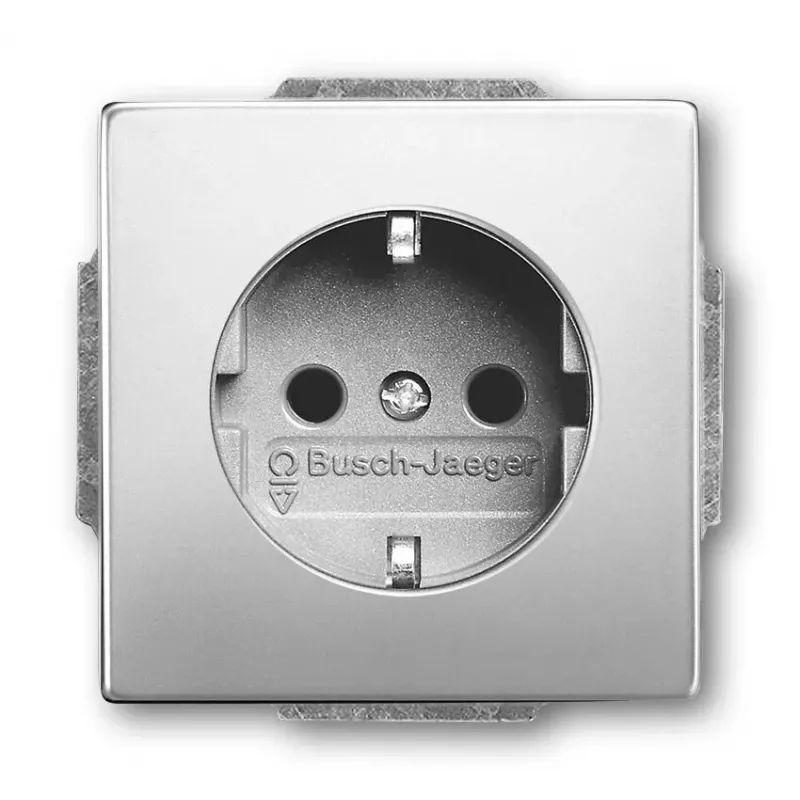

Presa Busch-Jaeger 2011-0-3850 CEE 7/3 2P+E 250 V 16 A acciaio inox argento 71×41 mm

The Busch-Jaeger 2011-0-3850 is a fixed recessed mains socket outlet with a CEE 7/3 (Type F) 2P+E configuration rated for 250 V and 16 A. The front housing is stainless steel with a silver finish and compact visible dimensions of 71×41 mm (6 mm visible depth), intended for residential and light commercial wall installations where a durable, low-profile socket is required.

Advantages

The stainless steel silver front provides corrosion resistance and an aesthetic metal appearance that integrates with modern interiors. Its 2P+E CEE 7/3 design supports standard Type F plugs and delivers a rated current of 16 A at 250 V for common household and small commercial appliances. The recessed build and small visible dimensions reduce protrusion from the wall surface, minimizing the risk of mechanical damage and enabling cleaner installation in confined spaces.

Suitable for

Key specifications

How to use

Turn off the circuit power at the breaker before installation. Remove the existing socket cover and unscrew the old device from the wall box if replacing a unit. Connect the live, neutral and earth conductors to the corresponding terminals of the Busch-Jaeger 2011-0-3850 according to local wiring regulations and the device polarity markings. Secure the socket into the flush-mounted box and fasten the stainless steel front plate so that only the specified visible dimensions remain. After installation, restore power and test the socket with an appropriate appliance or a socket tester to confirm correct wiring and earth continuity.

Recommendations

Use this socket outlet where a recessed, low-profile installation is required and where devices draw currents up to 16 A. For safety, installation and any wiring adjustments should be performed by a qualified electrician in accordance with applicable local electrical codes. Avoid exposure to environments with aggressive chemicals or continuous high humidity to preserve the stainless steel finish.
