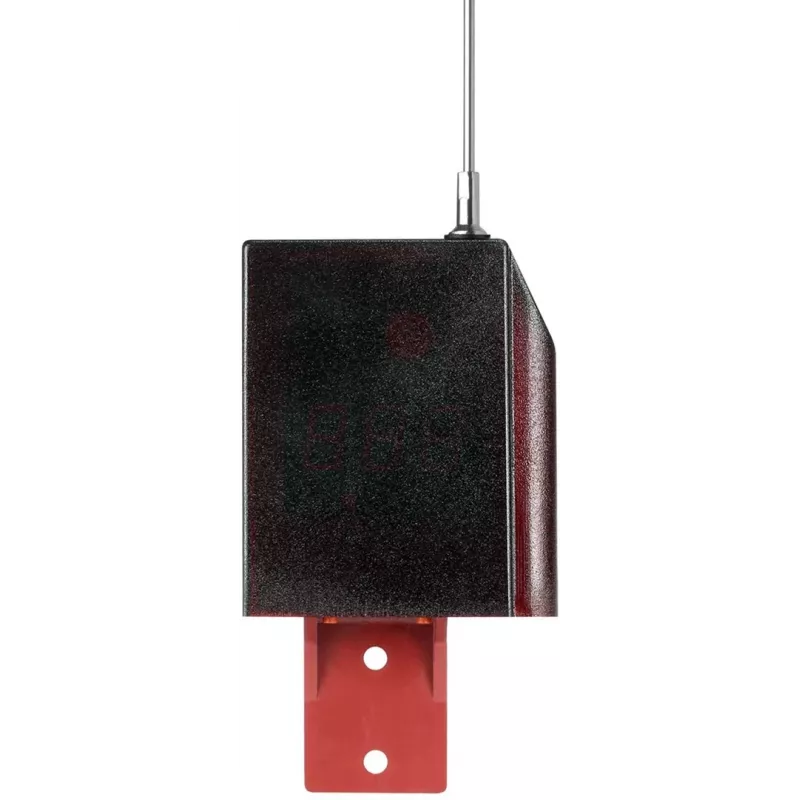

Proxima ECO_PIN ricevitore radio 433.92MHz

The Proxima ECO_PIN is a versatile single-channel radio receiver operating at 433.92 MHz, designed for gate automation, garage door openers, access control, and alarm systems. It supports both fixed code and rolling code (KeeLoq) remote controls, with a memory capacity of up to 400 remotes. The receiver features a potential-free relay output with NO/NC contacts, rated at 1A/30V DC and 0.5A/125V AC, and operates on 12-24V AC/DC power supply. Its compact plastic enclosure includes an internal antenna and an external antenna connector for extended range. Programming is simple via a single button, and the device offers monostable, bistable, and time-controlled operating modes (1-999 seconds).

Advantages

Compatible with a wide range of 433.92 MHz remote controls, including Proxima fixed and rolling code systems. Easy programming and flexible operating modes make it suitable for various automation tasks. Low standby current consumption ensures energy efficiency.

Suitable for

• Gate and garage door automation
• Access control systems
• Alarm system integration
• Remote switching of lights or other devices

Key specifications

• Operating Frequency: 433.92 MHz
• Number of Channels: 1
• Power Supply: 12-24V AC/DC
• Relay Contact Rating: 1A/30V DC, 0.5A/125V AC
• Memory Capacity: Up to 400 remote controls
• Operating Modes: Monostable, Bistable, Time-controlled (1-999s)
• Standby Current: ~10 mA
• Active Current: ~30 mA
• Antenna: Internal with external connector
• Enclosure Material: Plastic
• Operating Temperature: -20°C to +70°C
• Security: KeeLoq Rolling Code
• Modulation: ASK
• Mounting: Screw terminals

Recommendations

For optimal performance, use with Proxima remote controls or compatible 433.92 MHz fixed code transmitters. Ensure proper wiring and antenna placement for maximum range.
