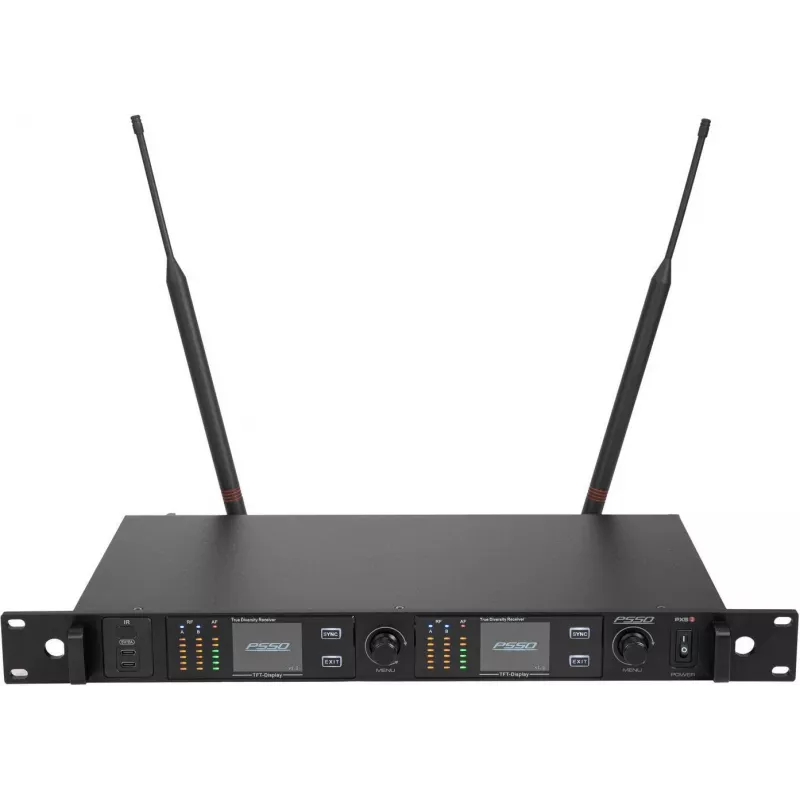

PSSO PXS TWO ricevitore True Diversity a 2 canali 640-690 MHz 13063504

Live sound engineers and event technicians rely on the PSSO PXS TWO for rock-solid wireless microphone reception in venues, houses of worship, and conference halls. This dual-channel true diversity receiver operates in the UHF band from 640 to 690 MHz, delivering clean, dropout-resistant audio for two independent wireless systems simultaneously. With 200 selectable frequencies (100 per channel) across a 50 MHz switching bandwidth, it offers flexible coordination in crowded RF environments. The front-panel LCD shows RF/AF levels, frequency, channel, and transmitter battery status at a glance, while infrared synchronization pairs compatible transmitters in seconds. Balanced XLR outputs per channel and a mixed 6.3 mm jack output connect directly to mixers or PA systems. Housed in a rugged 19-inch 1U rack-mountable chassis, it includes detachable BNC antennas and an external 12-18 V DC power supply.

Key specifications

• Receiver type: True diversity, dual channel
• Frequency range: 640–690 MHz (UHF)
• Switching bandwidth: 50 MHz
• Selectable frequencies: 200 (100 per channel)
• Frequency stability: ±0.005%
• Frequency response: 40 Hz – 18 kHz
• Signal-to-noise ratio: >90 dB
• Total harmonic distortion: <0.5%
• Audio outputs: 2 × XLR balanced, 1 × 6.3 mm jack unbalanced mix
• Antenna connectors: 2 × BNC (50 Ohm), detachable antennas included
• Display: LCD with RF/AF level, frequency, channel, battery status
• Rack mountable: Yes, 19" 1U
• Power supply: DC 12–18 V, 500 mA (adapter included)
• Operating range: up to 100 m line of sight
• Synchronization: Infrared (IR) for transmitters

Why choose it

True diversity reception significantly reduces dropouts by constantly comparing signals from two independent antenna paths. The wide 50 MHz tuning range and 200 selectable frequencies help avoid interference from other wireless devices, digital TV, or neighboring systems. The dual-channel design saves rack space and budget compared to two separate receivers, while the IR sync feature minimizes setup time and errors. Balanced XLR outputs ensure professional-grade connectivity with low noise over long cable runs.

Ideal use cases

• Live music performances with two wireless microphones or instruments
• Houses of worship requiring reliable multi-microphone setups
• Corporate events and conferences with dual presenter microphones
• Small theaters and touring rigs needing rack-mountable wireless
• Broadcast and studio applications where RF stability is critical

Good to know

The receiver comes with detachable BNC antennas, allowing upgrade to remote antenna systems for extended coverage. It requires an external 12–18 V DC power supply (included). For optimal performance, maintain line of sight between transmitters and antennas and perform a frequency scan before use. The unit is designed for professional audio environments and pairs with compatible PSSO PXS series transmitters.
