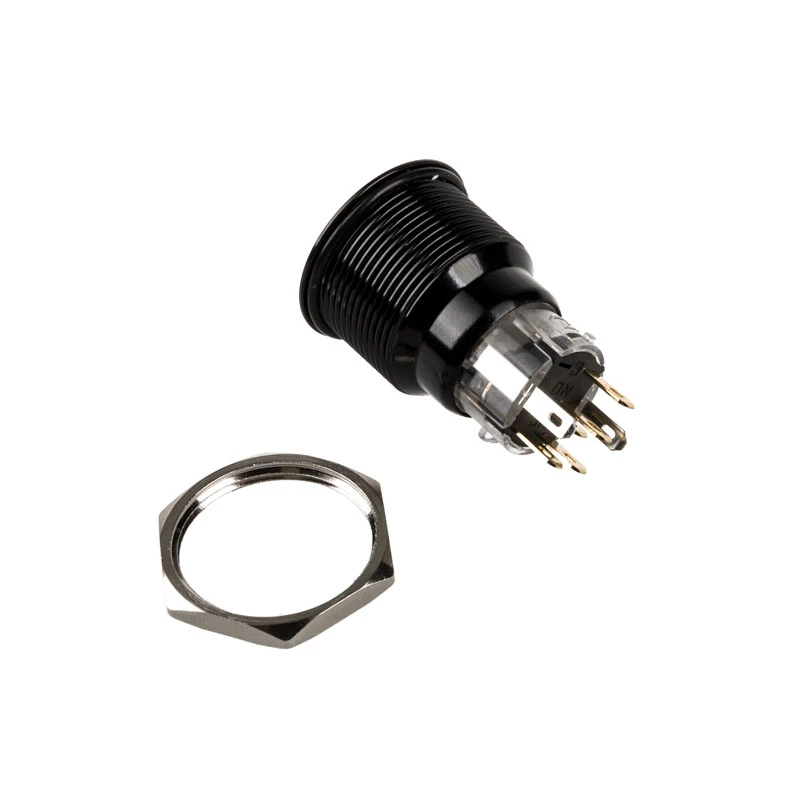

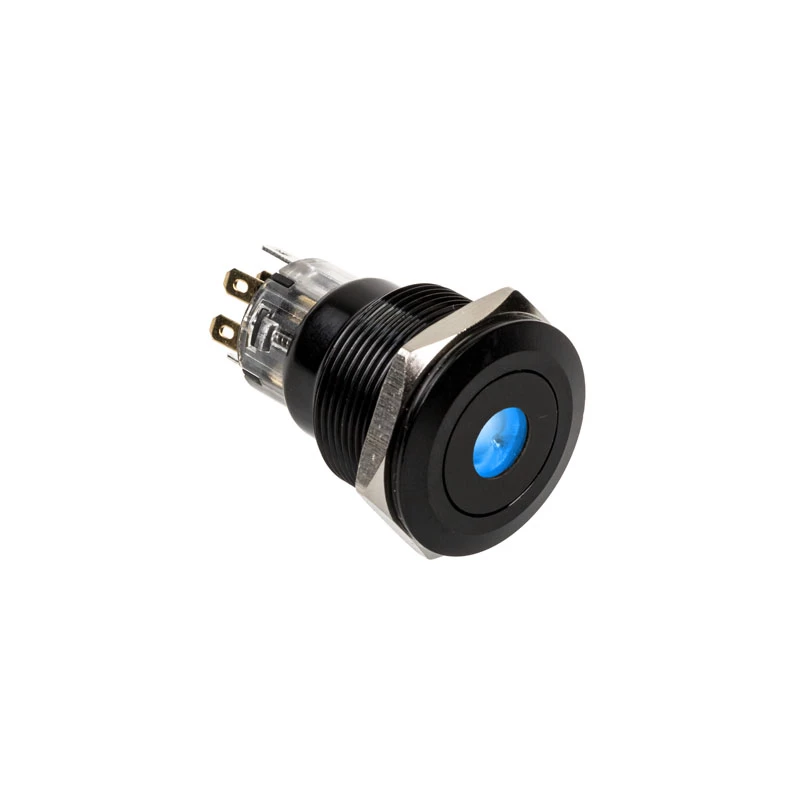

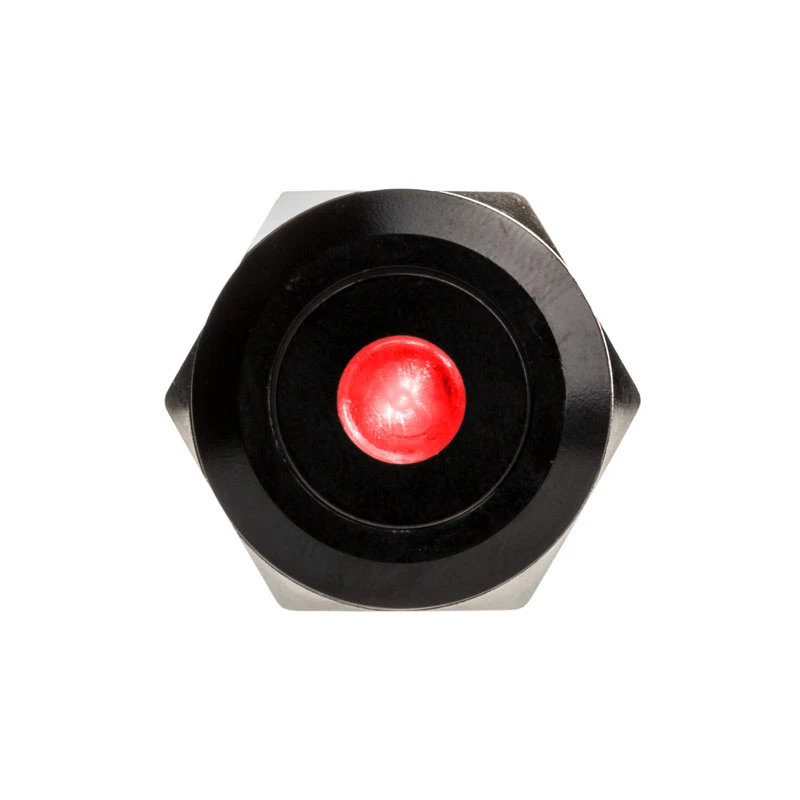

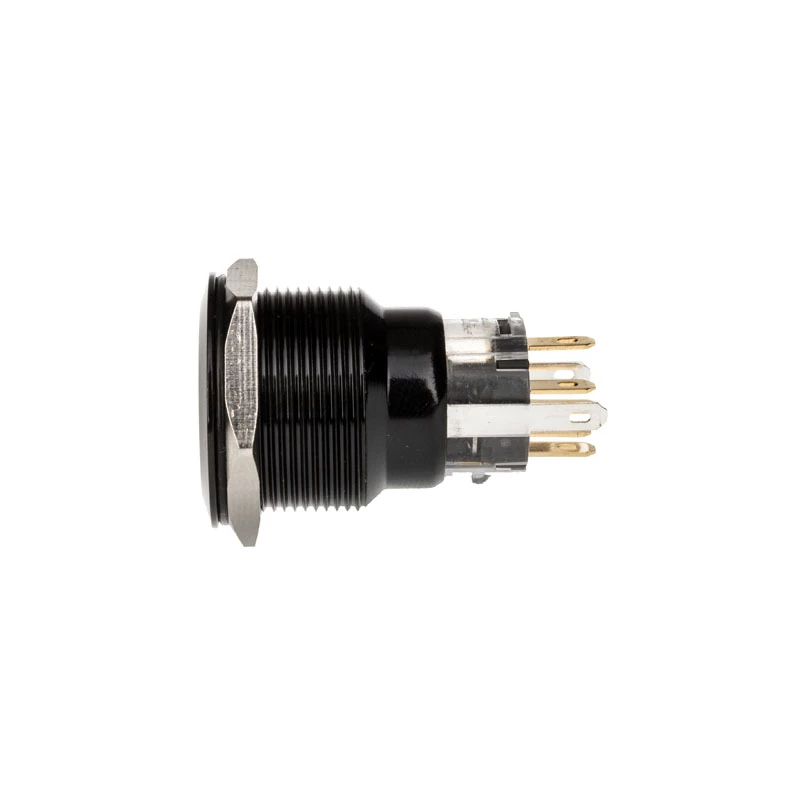

Pulsante a pressione antimanomissione DimasTech 22 mm Blackline Dot RGB PD223

DimasTech vandal-proof push button 22 mm Blackline Dot RGB PD223 is a mechanical metal push button designed for installations that require high resistance to tampering and mechanical impact. The front actuator is made of robust metal and the device integrates full RGB illumination for multi-color status signaling. Its construction and visual feedback make it suitable for access control panels, industrial control stations, kiosks and public environments where durability and clear indication are essential.

Advantages

The button combines a vandal-resistant metal front actuator with a compact 22 mm diameter, delivering long-term mechanical reliability in exposed locations. Integrated RGB illumination enables configurable color signaling for different states without additional indicators. The mechanical switching mechanism provides a clear tactile response and predictable electrical performance in repeated operations. Corrosion-resistant materials and a sturdy mounting design reduce the risk of failure in high-use or public environments.

Suitable for

• Access control panels and door release stations
• Industrial control consoles and machinery operator panels
• Kiosks, ticketing machines and public terminals
• Outdoor or indoor public installations requiring tamper resistance

Key specifications

• Actuator diameter: 22 mm
• Actuator material: metal (vandal-resistant front)
• Switch type: mechanical push button
• Illumination: integrated RGB LED for multi-color indication
• Mounting: panel-mount design suitable for secure installations
• Environmental suitability: designed for high-use and public environments

How to use

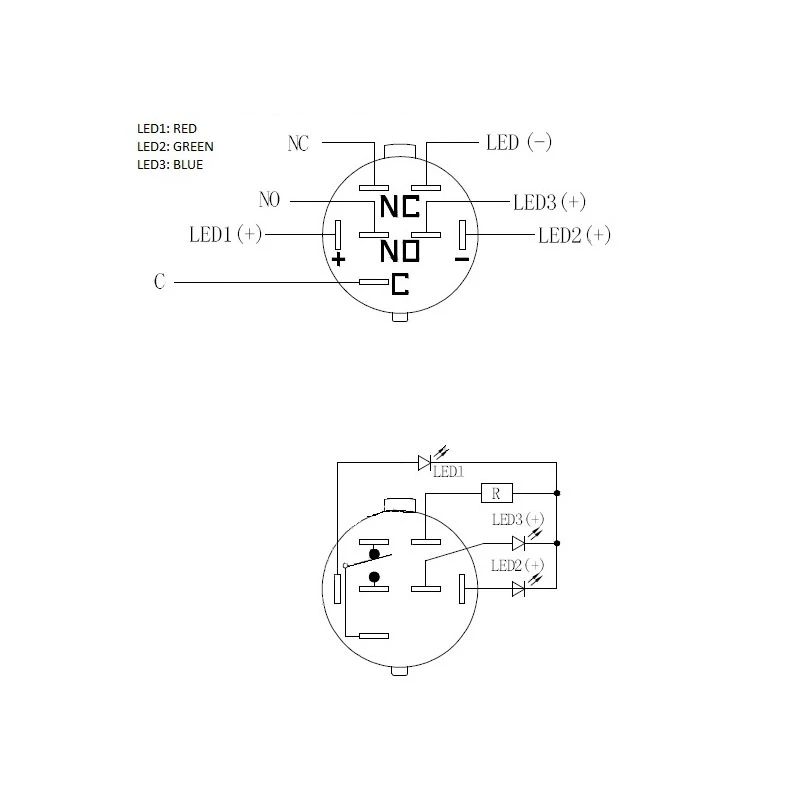

Install the button into a compatible 22 mm panel cutout and secure it according to the mounting method provided by the enclosure or panel. Connect the mechanical switch contacts to the control circuit and wire the RGB LED leads to the indicator driver or controller, observing correct polarity and voltage requirements of the illumination circuit. After installation, verify mechanical operation and confirm correct color signaling through the control system before placing into service.

Recommendations

For reliable long-term performance, mount the button in a reinforced panel or bezel and protect wiring connections from moisture and mechanical stress. Use appropriate driver or controller settings to manage RGB colors and brightness; avoid exceeding the LED voltage or current ratings. Regularly inspect the actuator and mounting for signs of wear or corrosion in high-traffic or outdoor installations.
