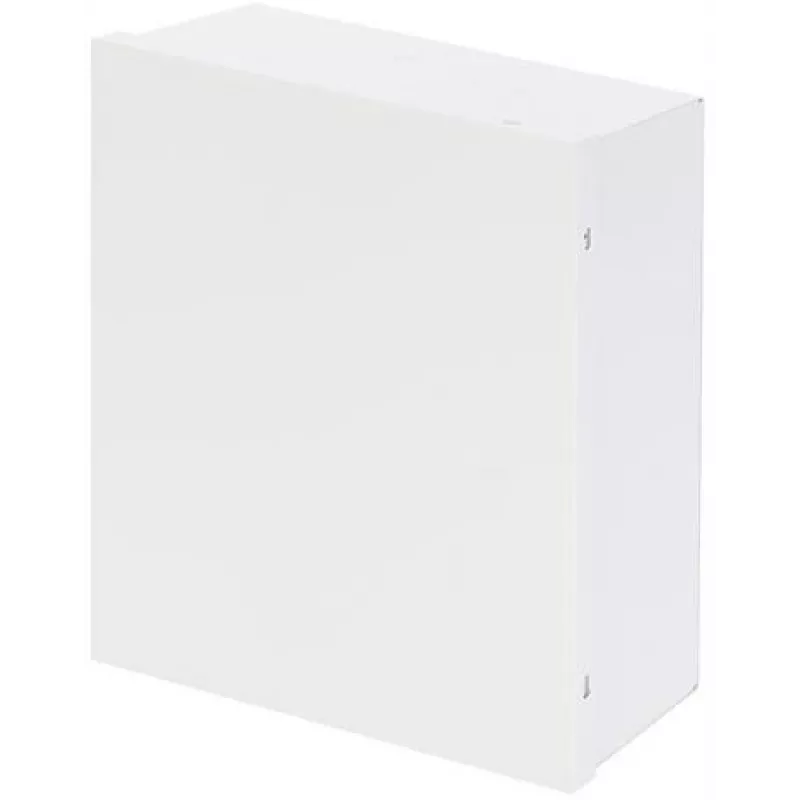

Pulsar 7/20/DSPR/EMPTY contenitore universale per allarme, vuoto, bianco (RAL 9003), acciaio, IP20

The Pulsar 7/20/DSPR/EMPTY is a high-quality, empty universal alarm enclosure designed for housing alarm control panels, access control modules, and CCTV modules. Manufactured by Pulsar, this enclosure is made from 0.8 mm thick steel sheet with a powder-coated finish in white (RAL 9003), ensuring durability and a clean appearance. It is surface-mounted (wall) and features an IP20 protection rating, making it suitable for indoor use.

Advantages

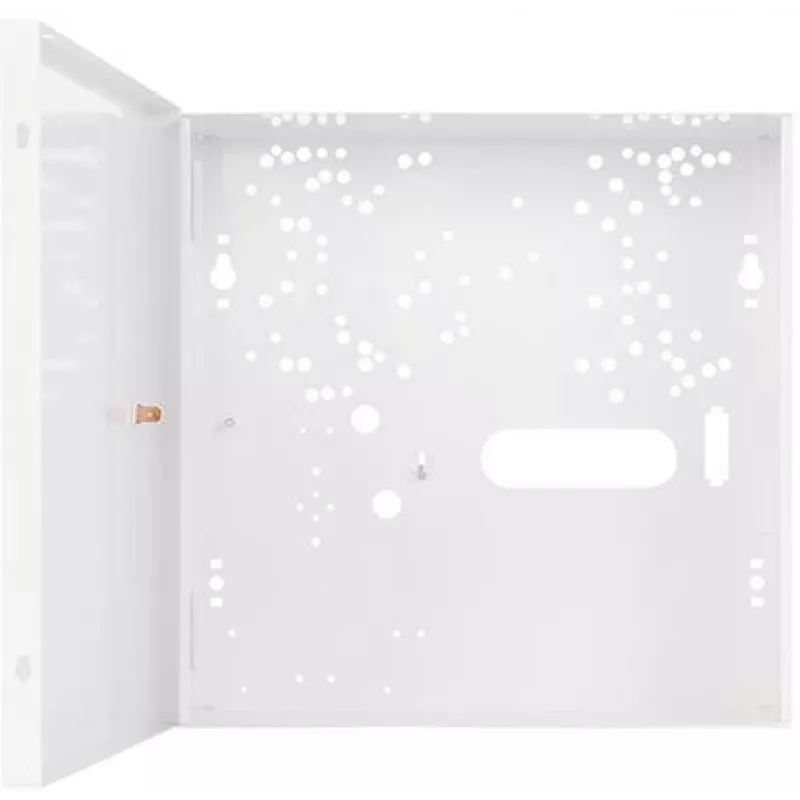

This empty enclosure offers flexibility for custom installations, allowing you to integrate your own components. The key lock (cylinder) and tamper microswitch (NC) provide security and tamper protection. Ventilation ensures proper airflow for internal components, while the internal mounting plate simplifies component installation. Knock-out holes facilitate cable entry.

Suitable for

• Alarm control panels
• Access control modules
• CCTV modules
• Other security system components

Key specifications

• Enclosure Type: Universal Alarm System Enclosure
• Material: Steel Sheet (0.8 mm)
• Color: White (RAL 9003)
• Mounting: Surface-mounted (Wall)
• IP Rating: IP20
• Tamper Protection: Microswitch (NC)
• Lock Type: Key Lock (Cylinder)
• Max Battery Capacity: 17 Ah / 12 V
• Compatible Transformers: Pulsar TRP 20VA, TRP 40VA, TRP 60VA
• Cable Entry: Knock-out Holes
• Ventilation: Yes
• Operating Temperature: -10°C to +40°C
• Certifications: CE
• Finish: Powder-coated
• Internal Mounting Plate: Yes
• Empty Enclosure: Yes (No internal components included)

Recommendations

For optimal performance, use with Pulsar TRP series transformers. Ensure proper ventilation and secure mounting. This enclosure is ideal for custom security system builds.
