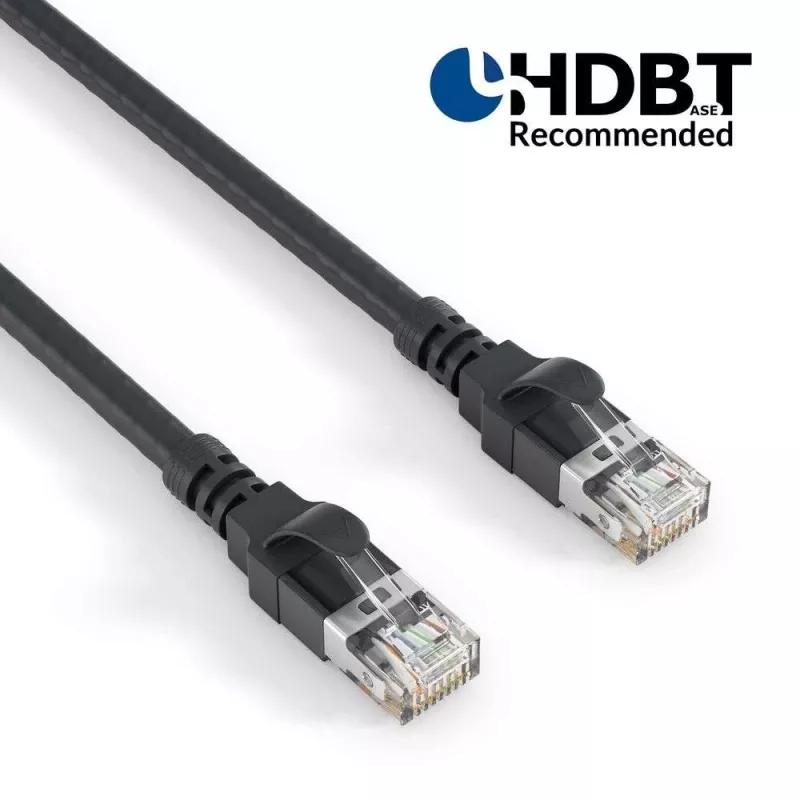

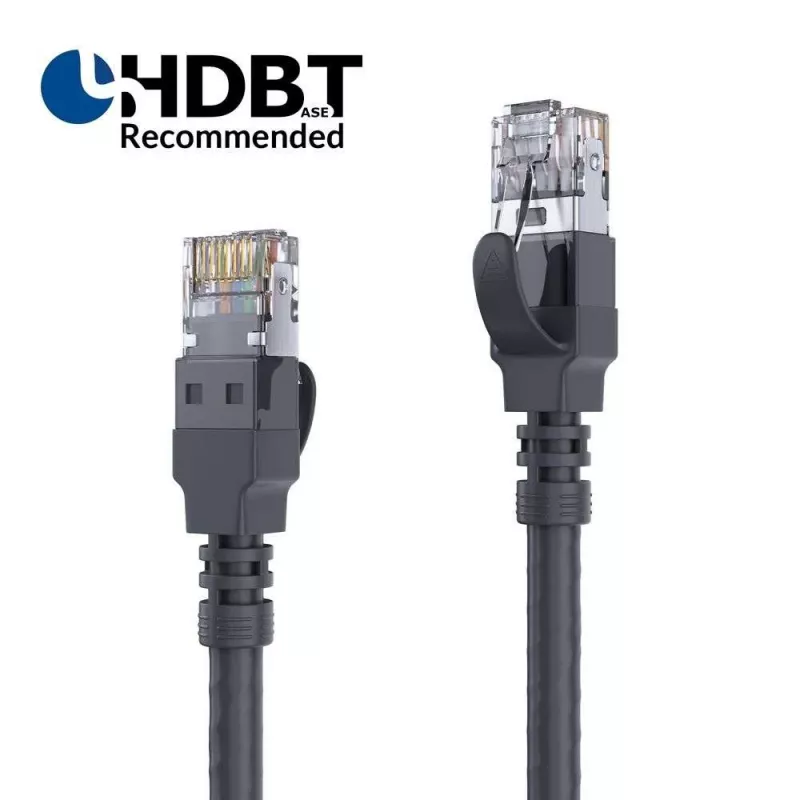

PureLink AVIT Media Series cavo patch CAT 6a SFTP RJ-45 (M) a RJ-45 (M) 25 m nero LSZH

The PureLink AVIT Media Series MC1000-250 is a high-performance CAT 6a SFTP patch cable designed for demanding IT and AV applications. With a length of 25 meters, it provides reliable connectivity for network installations requiring high bandwidth and data transfer rates up to 10 Gbps. The cable features S/FTP shielding (braid and foil) to protect against electromagnetic interference, ensuring stable signal transmission. Its LSZH (Low Smoke Zero Halogen) jacket makes it safe for use in enclosed spaces, reducing toxic fumes in case of fire. The cable is terminated with RJ-45 male connectors on both ends, gold-plated for optimal conductivity and corrosion resistance. It supports Power over Ethernet (PoE) and is compliant with RoHS, REACH, and CE standards.

Advantages

This cable offers superior performance and reliability for high-speed networks. The S/FTP shielding minimizes crosstalk and external interference, making it ideal for data centers and professional AV environments. The LSZH jacket enhances safety, while the 26 AWG stranded pure copper conductors ensure flexibility and durability. The 25-meter length allows for long-distance connections without signal degradation.

Suitable for

• Data centers and server rooms
• Professional audio/video installations
• 10 Gigabit Ethernet networks (10GBASE-T)
• PoE devices such as IP cameras, access points, and VoIP phones
• Structured cabling in commercial and industrial settings

Key specifications

• Cable Type: Patch Cable
• Ethernet Category: CAT 6a (Class EA)
• Shielding Type: SFTP (S/FTP)
• Connector A: RJ-45 Male
• Connector B: RJ-45 Male
• Cable Length: 25 meters
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Conductor Material: Pure Copper (Cu)
• Conductor Gauge: AWG 26/7 (Stranded)
• Wiring Standard: TIA/EIA 568B
• Impedance: 100 Ohm
• Contact Plating: Gold-plated
• Cable Color: Black
• Outer Diameter: Approx. 6.2 mm
• Compliance: RoHS, REACH, CE

Recommendations

For optimal performance, ensure that all components in the network (switches, patch panels, and endpoints) support CAT 6a or higher standards. This cable is suitable for permanent installations where high reliability and safety are required.
