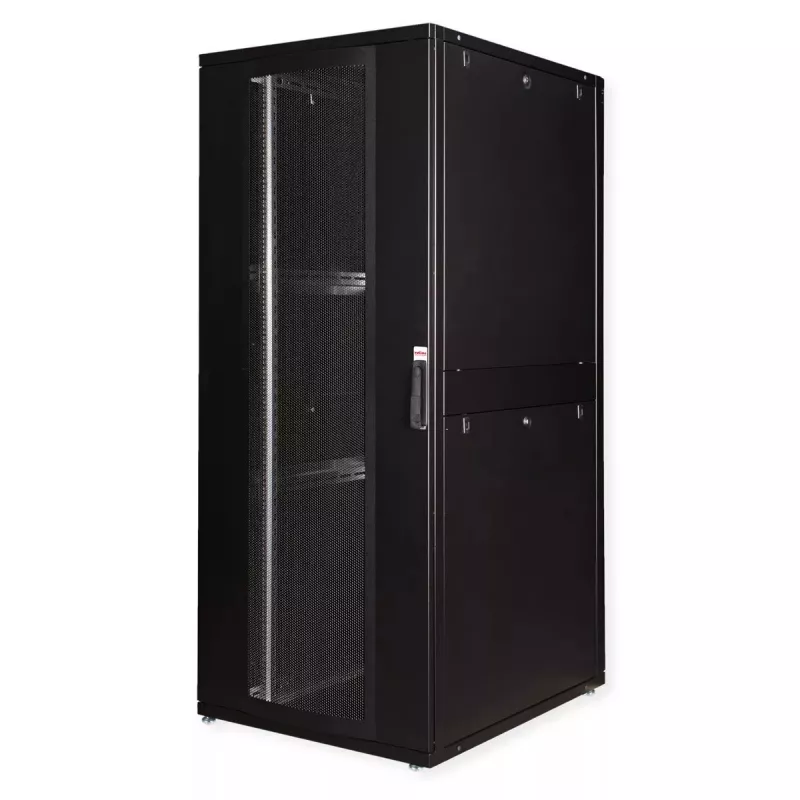

Rack server 19 pollici a installazione libera ROLINE Pro 42U 800x1000 nero

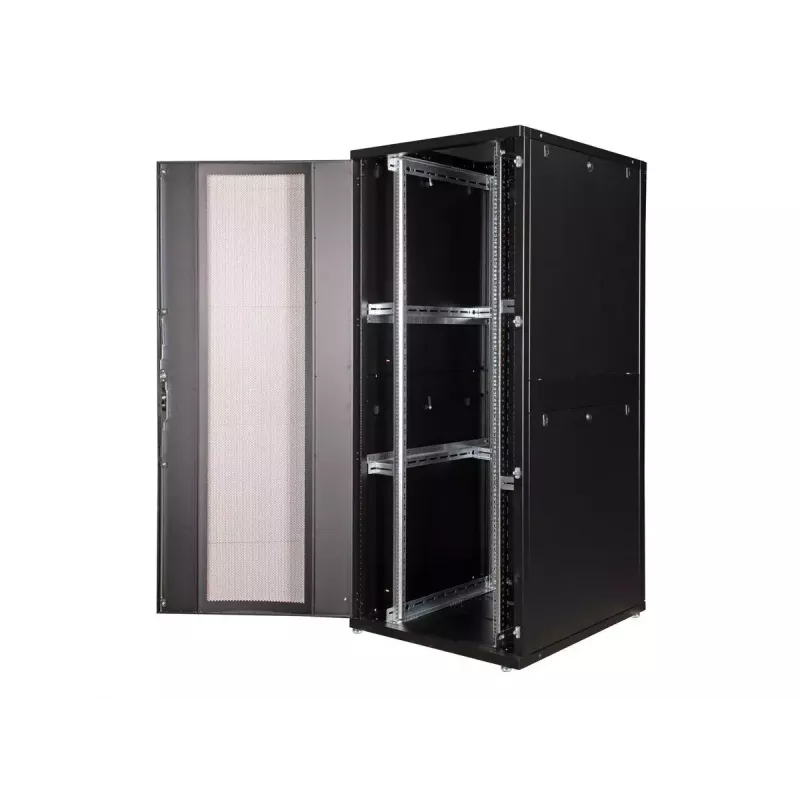

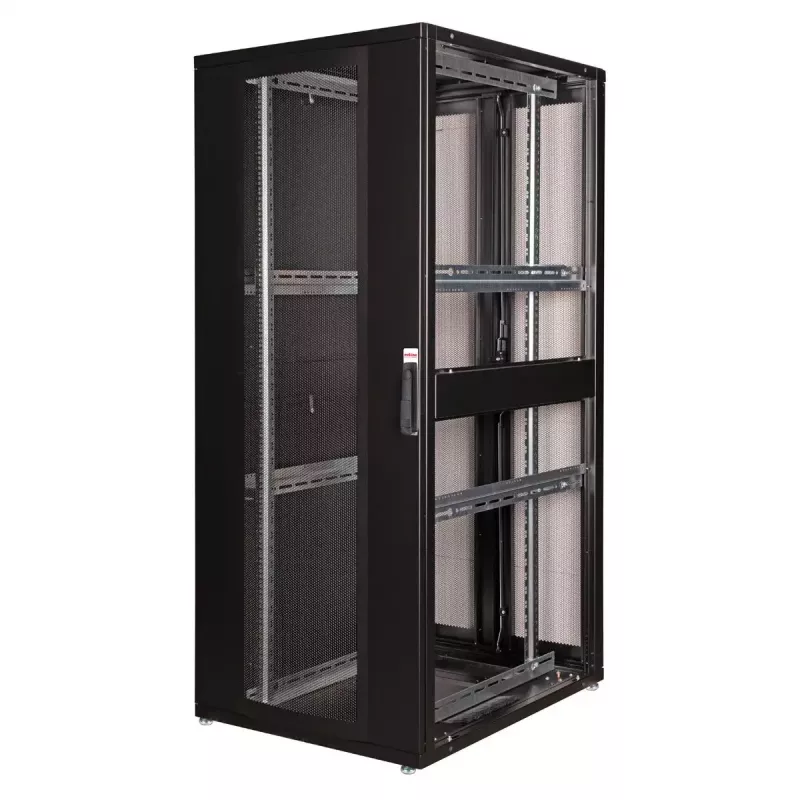

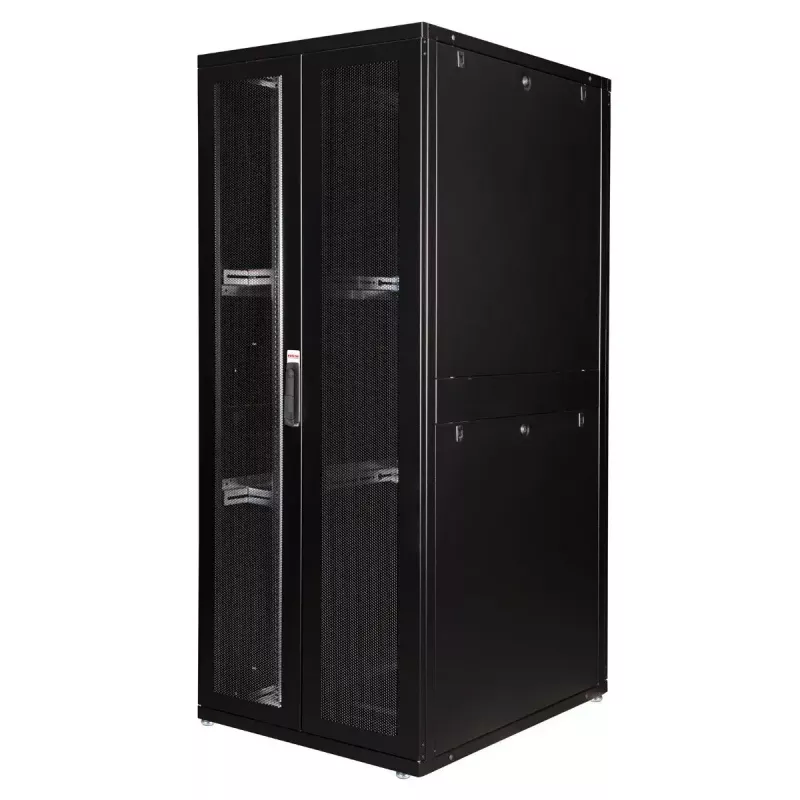

The ROLINE 19-inch server rack Pro 42 U 800x1000 black is a freestanding 42U enclosure designed for organised and secure server and network equipment installation. The cabinet supports a maximum load of 1000 kg, has an IP20 protection rating, adjustable feet and a robust steel construction with material thickness up to 2.0 mm. The rack includes two pairs of galvanised 19" profile rails with depth adjustment and readable height units, perforated front and rear doors for improved airflow, removable modular side panels and a perforated roof prepared for fan modules.

Advantages

This server rack combines a high load capacity with flexible cable entry options — brush inlets, a slide-on inlet with foam rubber seal and additional brush inlet in the base (on widths from 800 mm) — to enable tidy and dust-reduced cabling. Perforated doors and roof improve ventilation while adjustable and depth-braced 19" rails allow straightforward mounting of 19" equipment. The powder-coated steel surface and interchangeable hinges and panels permit long-term use and easy maintenance.

Suitable for

• Installation of 19" servers, switches and patch panels
• Small to medium data rooms and server closets
• Network distribution and structured cabling installations

Key specifications

• Height: 42U
• Outer dimensions (W x D): 800 x 1000 mm
• Maximum load capacity: 1000 kg
• Weight: 125.8 kg
• Protection rating: IP20
• Material: steel, up to 2.0 mm thickness
• Finish: electrostatic powder coating, black (RAL 9005) and also available in grey (RAL 7035)
• Mounting rails: two pairs galvanised 19" profile rails, adjustable depth, readable U markings
• Cable entry: brush inlets, slide-on inlet with foam rubber seal, additional brush inlet in base (from 800 mm width)

How to use

Level the rack using the adjustable feet and, if required, bolt the base to the floor for additional stability. Install 19" equipment on the adjustable galvanised rails, setting the rails to the correct depth and aligning the U markings. Route cables through the brush inlets or the slide-on inlet with foam rubber seal to maintain organised cabling and reduce dust ingress. Use the perforated doors and roof when planning airflow and, if needed, fit a compatible fan module into the perforated roof opening.

Recommendations

Place heavy equipment at the bottom of the rack to lower the centre of gravity, distribute load evenly across mounting rails up to the 1000 kg limit, and ensure sufficient front-to-back airflow by leaving clearance in front of perforated doors and utilising the roof fan module if the installation generates significant heat.
