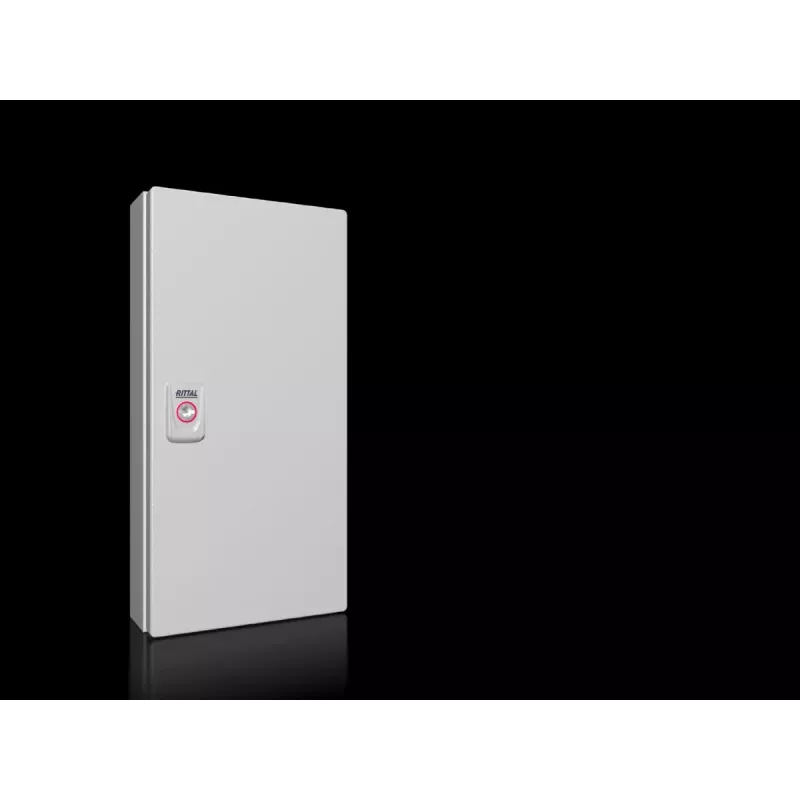

Rittal custodia piccola KX 200x400x80mm IP66 grigio chiaro 1547000

Electrical installations in demanding environments need a housing that protects components from dust, water, and mechanical impact. The Rittal KX small enclosure provides IP66 and NEMA 4 protection in a compact 200x400x80 mm sheet steel body, finished in light grey RAL 7035. Its single door with 3 mm double-bit lock and included gland plate and mounting plate make it ready for immediate use in industrial control and distribution applications.

Who is it for

This enclosure is intended for electricians, panel builders, and maintenance technicians who need a reliable, wall-mountable housing for electrical components in factories, workshops, or outdoor installations where protection against moisture and dust is essential.

Main features

• Sheet steel construction with dip-primed, powder-coated textured finish for durability.
• IP66 and NEMA 4 protection against dust and water jets.
• IK08 impact resistance for mechanical robustness.
• Single door with 3 mm double-bit lock, reversible hinge.
• Includes gland plate (bottom) and zinc-plated mounting plate.
• Light grey RAL 7035 colour.

Specifications

• External dimensions: 200 mm height x 400 mm width x 80 mm depth.
• Material: sheet steel.
• Protection: IP66, NEMA 4, IK08.
• Colour: RAL 7035 light grey.
• Door: 1, reversible hinge, 3 mm double-bit lock.
• Included: gland plate (bottom), mounting plate (zinc-plated).
• Approvals: UL, cUL, TÜV, EAC, VDE, Germanischer Lloyd.

Tips

When installing, ensure the gland plate is properly sealed to maintain the IP66 rating. The reversible door hinge allows flexibility in tight spaces. For outdoor use, additional sealing may be required depending on the environment.
