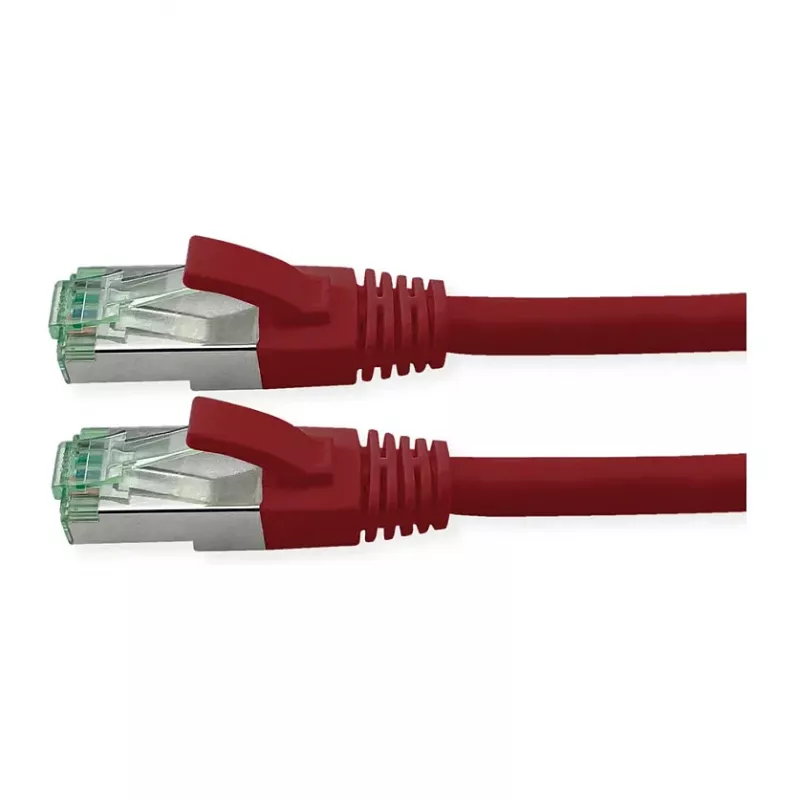

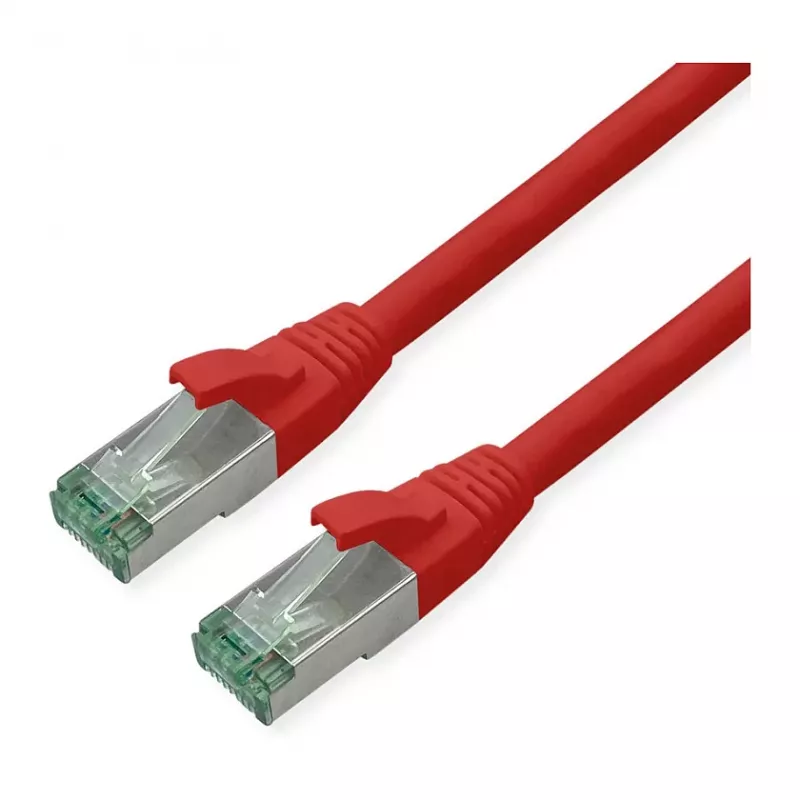

ROLINE cavo patch RM Cat.6A S/FTP (PiMF), rosso, 3 m

The ROLINE RM Patch Cable Cat.6A S/FTP (PiMF) in red, 3 meters, is a high-performance network cable designed for demanding 10 Gigabit Ethernet applications. It features S/FTP shielding (pairs in metal foil with overall braid) to minimize electromagnetic interference, ensuring reliable data transmission. The cable is halogen-free (LSZH) and flame retardant, making it suitable for use in public and commercial environments where safety is critical.

Advantages

This patch cable offers exceptional signal integrity and protection against external noise, thanks to its S/FTP construction. The gold-plated contacts (50µm) provide corrosion resistance and optimal conductivity. The stranded conductor design (AWG 26/7) ensures flexibility for easy routing in tight spaces. With a bandwidth of 500 MHz, it supports data rates up to 10 Gbps, future-proofing your network infrastructure.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks where electromagnetic interference is a concern
• Installations requiring low smoke zero halogen cables for safety
• 10GBASE-T networks and other high-bandwidth applications

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 3.0 m
• Colour: Red
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Conductor Material: Copper
• Conductor Gauge: AWG 26/7 (stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Max Bandwidth: 500 MHz
• Max Data Rate: 10 Gbps
• Wiring Standard: TIA/EIA 568B (straight-through)
• Halogen-free: Yes
• Flame Retardant: Yes
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Number of Pairs: 4
• Outer Diameter: Approx. 6.2 mm

Recommendations

For optimal performance, use this cable with Cat.6A compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for structured cabling systems requiring high reliability and safety.
