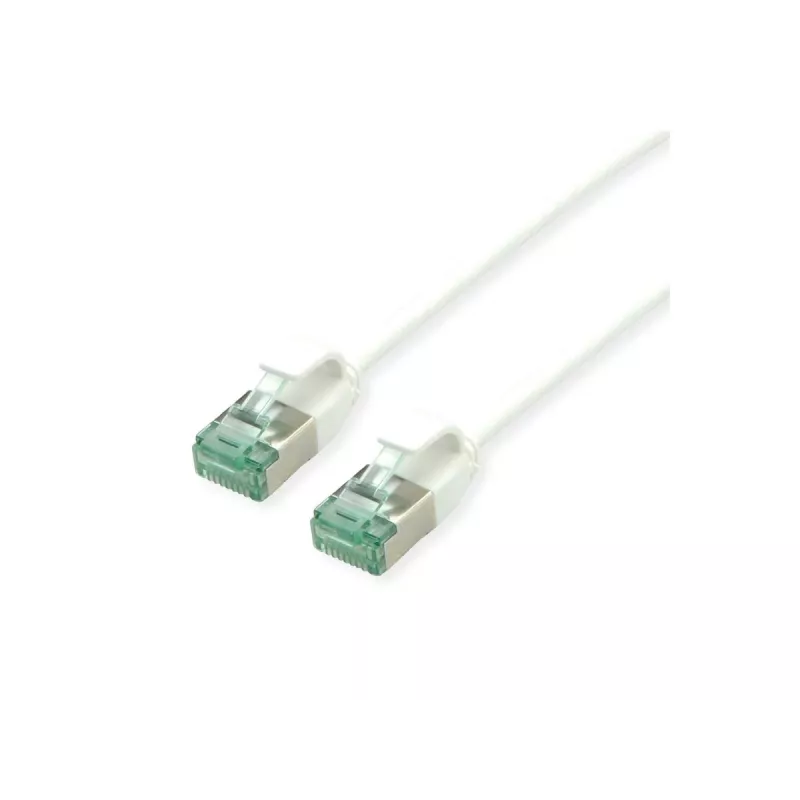

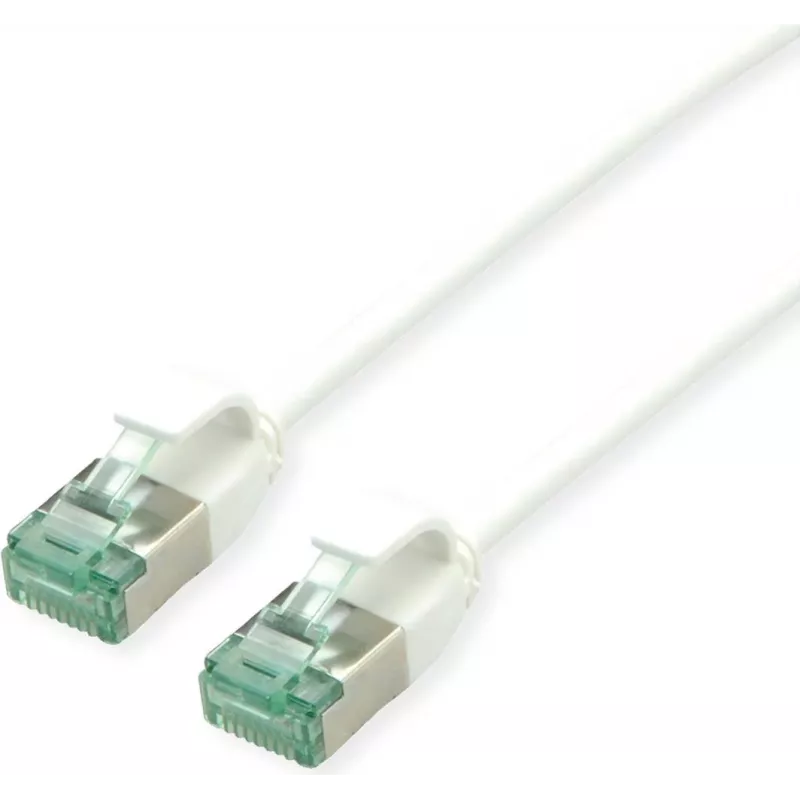

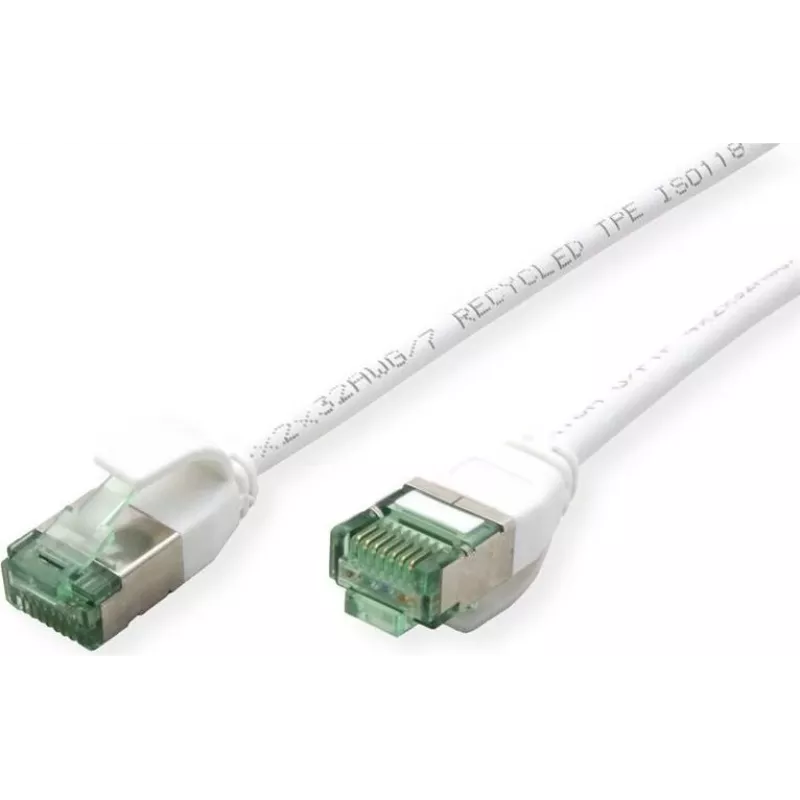

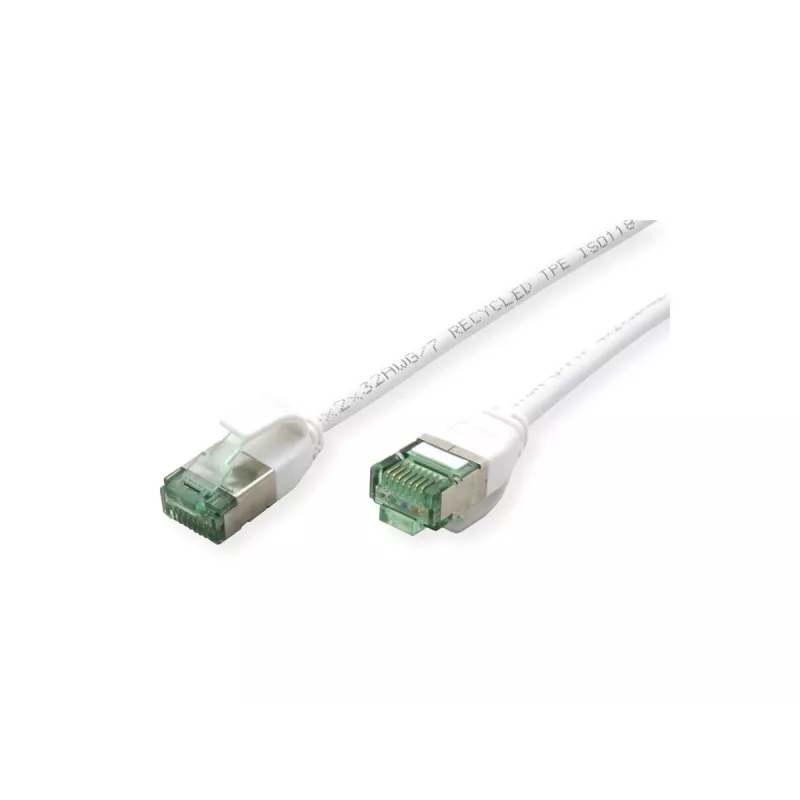

ROLINE RM Cavo patch U/FTP Cat.6A Class EA Slim bianco 1m 21.45.3363

This slim Cat.6A patch cable delivers 10 Gigabit Ethernet performance in a compact, halogen-free design. Its U/FTP construction with PiMF shielding ensures reliable, high-speed data transfer while the slim profile improves airflow and simplifies cable management in dense installations.

Advantages

The slimline design reduces clutter and improves airflow in racks and cabinets. The snagless boot protects the locking tab during installation and removal. The LSZH jacket is halogen-free, making it suitable for environments where smoke and toxic emissions must be minimized.

Suitable for

• 10GBASE-T network connections in data centers and enterprise networks
• High-density patching where space is limited
• PoE applications up to PoE++ (4PPoE)

Key specifications

• Cable type: U/FTP (PiMF)
• Category: Cat.6A / Class EA
• Length: 1 m
• Colour: White
• Connectors: RJ45 male to RJ45 male
• Conductor: Stranded copper
• Jacket: LSZH, halogen-free
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• PoE support: PoE, PoE+, PoE++
• Outer diameter: 3.6 mm
• Wiring: T568B, 1:1

Recommendations

Use this cable for high-performance 10G connections where a slim, halogen-free solution is required.
