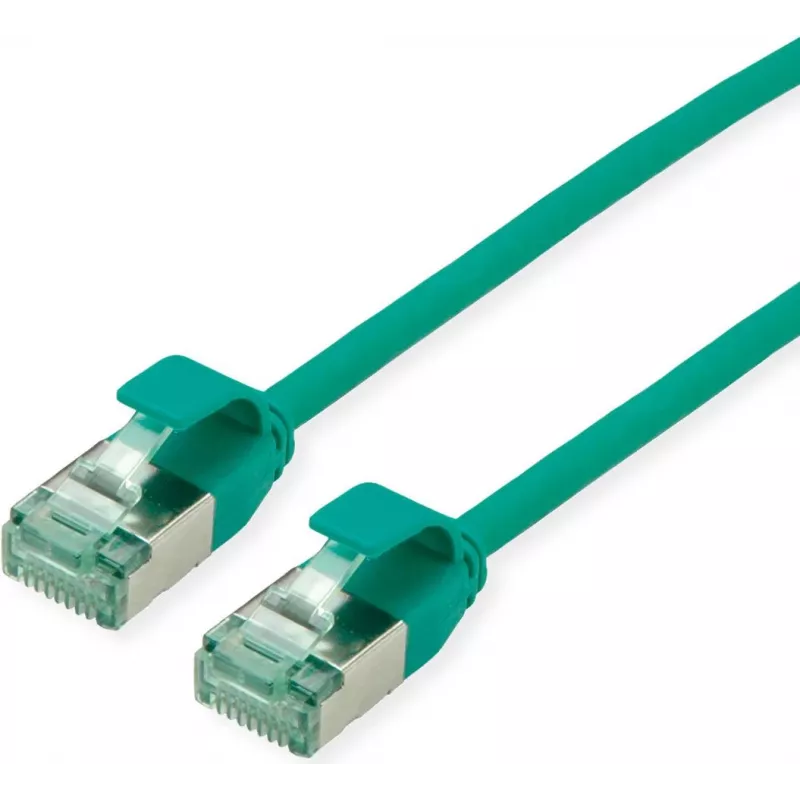

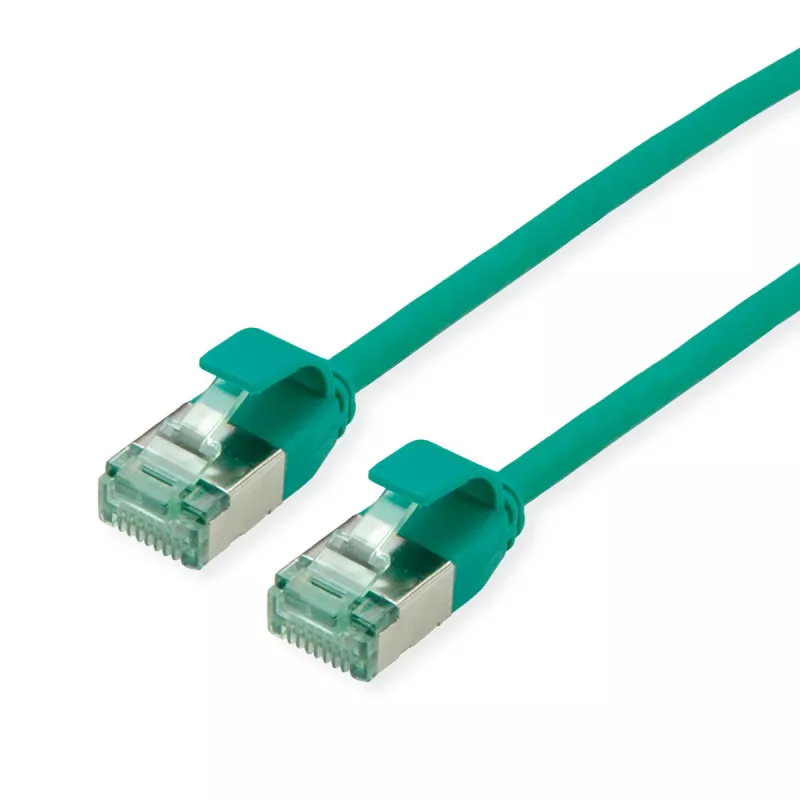

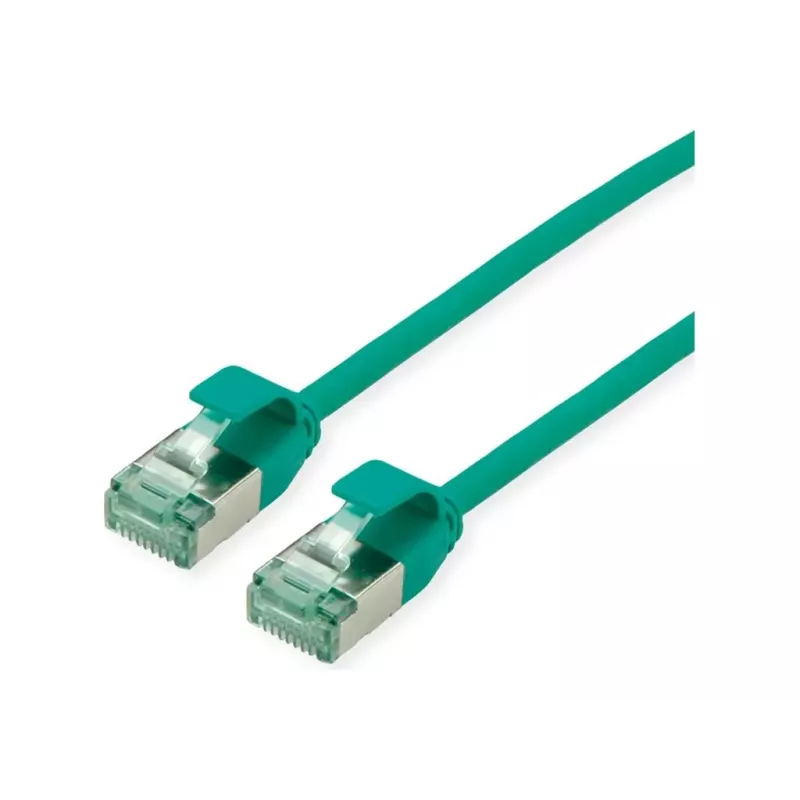

ROLINE RM cavo patch U/FTP Cat.6A/Class EA SLIM verde 5m - FTP (21.45.3337)

Connect high-speed network devices in data centers and office environments with this slim Cat.6A patch cable. The green 5-meter U/FTP cable features shielded RJ45 connectors and supports 10 Gigabit Ethernet up to 500 MHz, making it suitable for demanding applications like server connections, PoE++ devices, and high-density patching where space is limited.

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: U/FTP (PiMF)
• Length: 5 m
• Colour: Green
• Connector: Shielded RJ45 male to RJ45 male
• Jacket material: LSOH (halogen-free)
• Conductor: Stranded copper, AWG 27/7
• Outer diameter: 4.5 mm
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• PoE support: PoE++ (Type 4, 90W)
• Design: Slimline

Why choose it

The slim design reduces cable bulk, improving airflow and making cable management easier in high-density installations. The LSOH jacket ensures low smoke and zero halogen emissions in case of fire, enhancing safety in enclosed spaces.

Ideal use cases

• Data center server connections
• Office network upgrades to 10G
• PoE++ device connections (e.g., PTZ cameras, access points)
• High-density patch panels

Good to know

Compliant with ISO/IEC 11801 Ed.2.2, EN 50173-1, and TIA/EIA-568-C.2 standards. The cable is halogen-free and suitable for environments where safety regulations require low smoke and toxicity.
