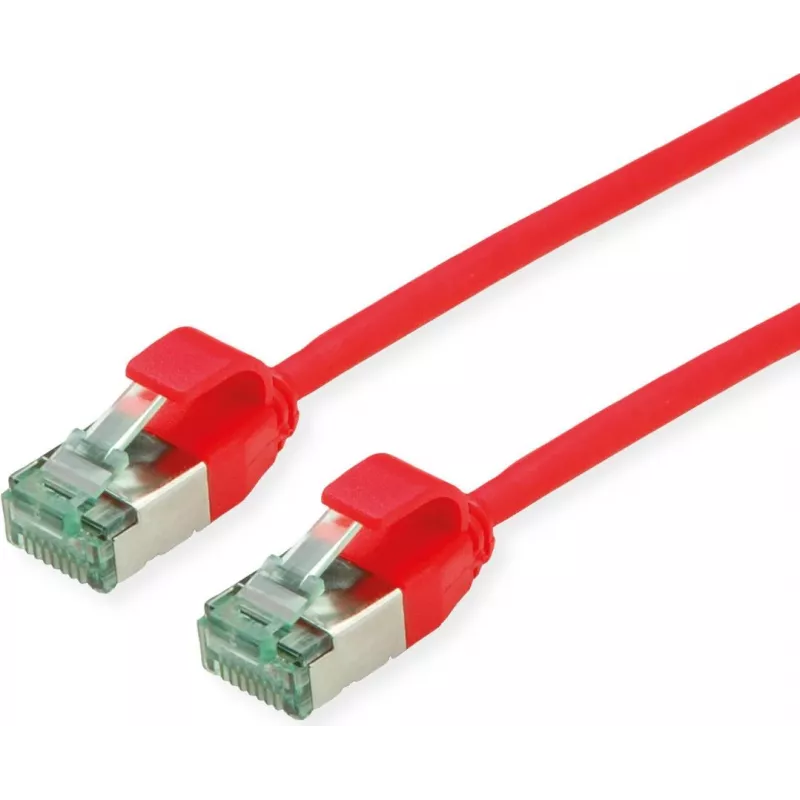

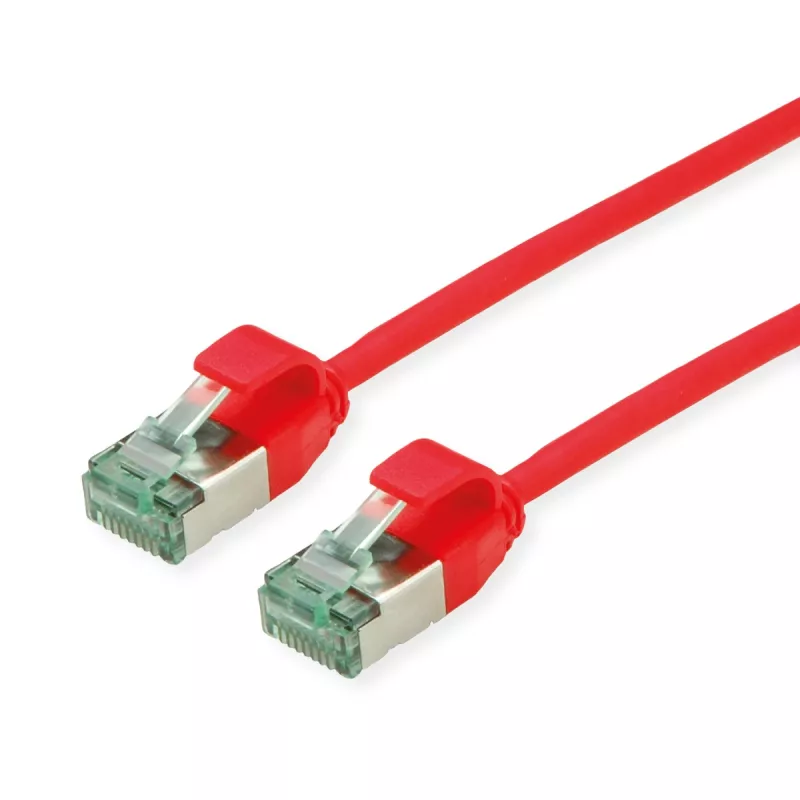

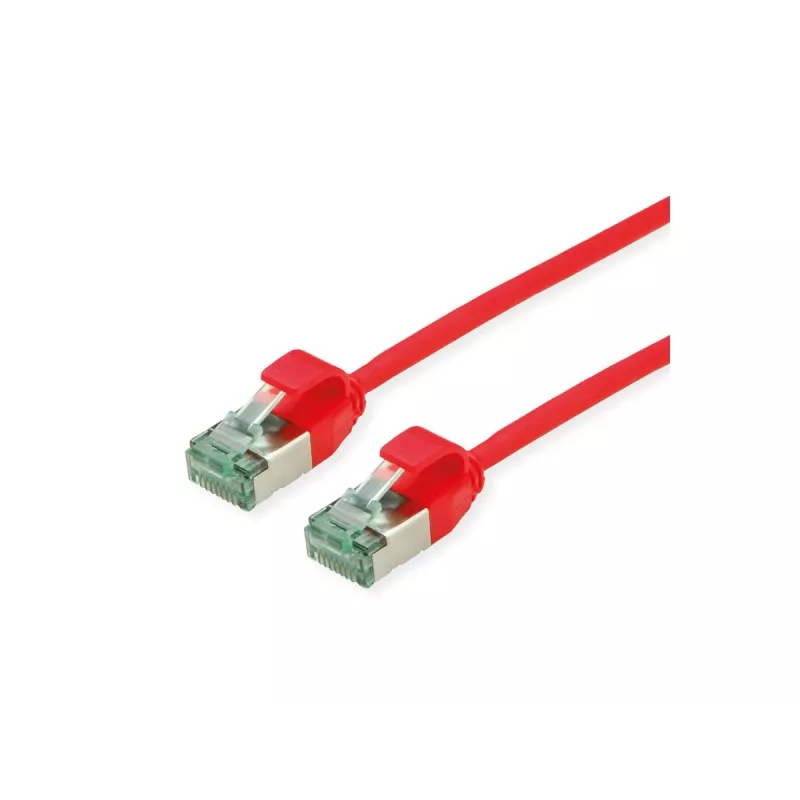

ROLINE RM cavo patch U/FTP Cat.6A Slim, rosso, 1,5 m 21.45.3314

This Cat.6A slim patch cable delivers 10 Gigabit Ethernet performance in a reduced-diameter design, ideal for high-density patching where space is at a premium. With U/FTP shielding and LSZH jacket, it ensures reliable, high-speed connectivity while meeting strict fire safety requirements.

Advantages

The slim 3.6 mm diameter allows for easier cable management and improved airflow in crowded racks. Each pair is individually shielded (PiMF) to minimize alien crosstalk, enabling full 10GBASE-T throughput up to 500 MHz. The halogen-free jacket reduces toxic smoke in case of fire, making it suitable for public buildings.

Suitable for

• Data centers and server rooms with high port density
• 10 Gigabit Ethernet connections in enterprise networks
• PoE applications up to UPoE (60W)
• Environments requiring LSZH cabling, such as healthcare and education

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: U/FTP (PiMF)
• Length: 1.5 m
• Colour: Red
• Connector: RJ45 male to RJ45 male
• Bandwidth: 500 MHz
• Conductor: 28 AWG stranded copper
• Jacket: LSZH (halogen-free, flame retardant)
• PoE support: PoE, PoE+, UPoE
• Wiring: TIA/EIA 568-B

Recommendations

For optimal performance, avoid bending the cable beyond a radius of 4 times its diameter and keep away from sources of electromagnetic interference.
