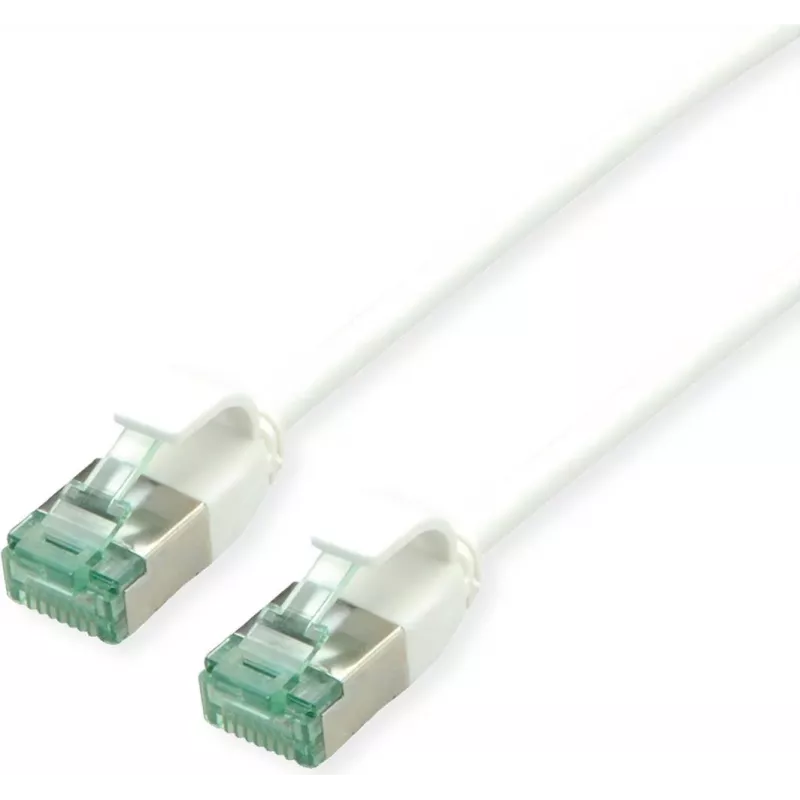

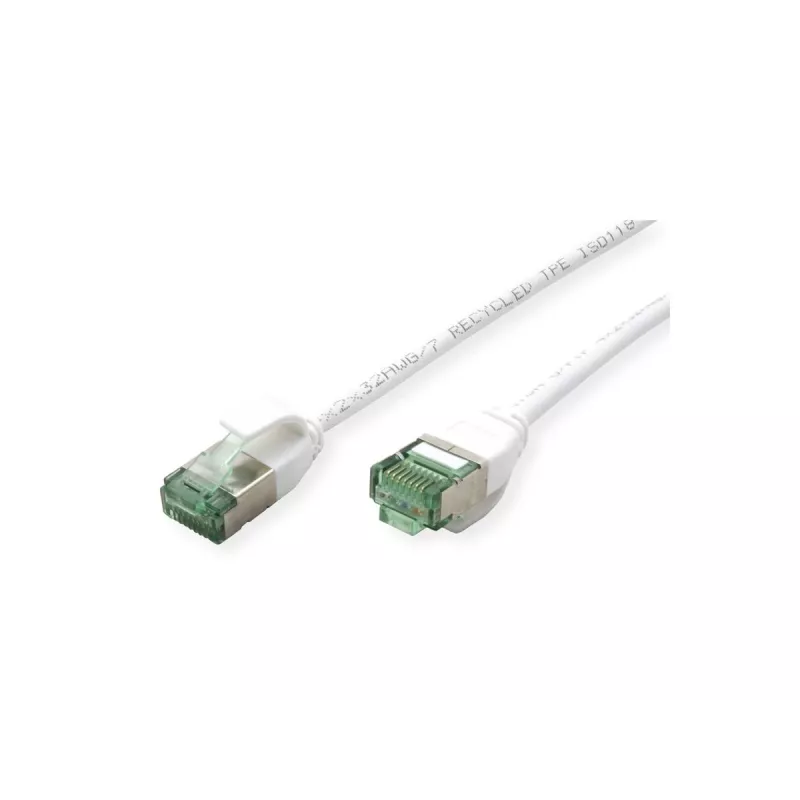

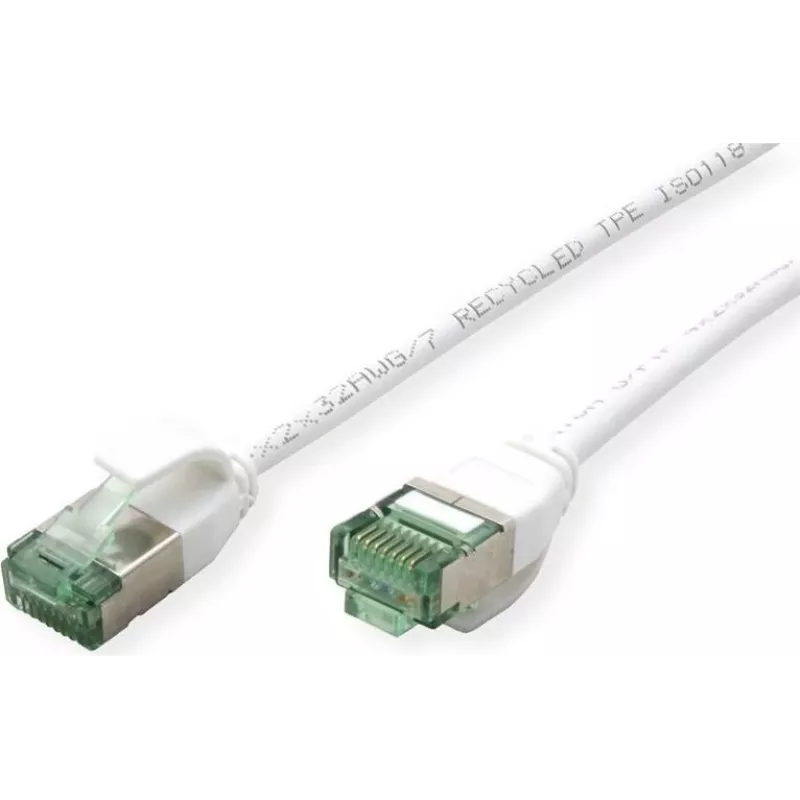

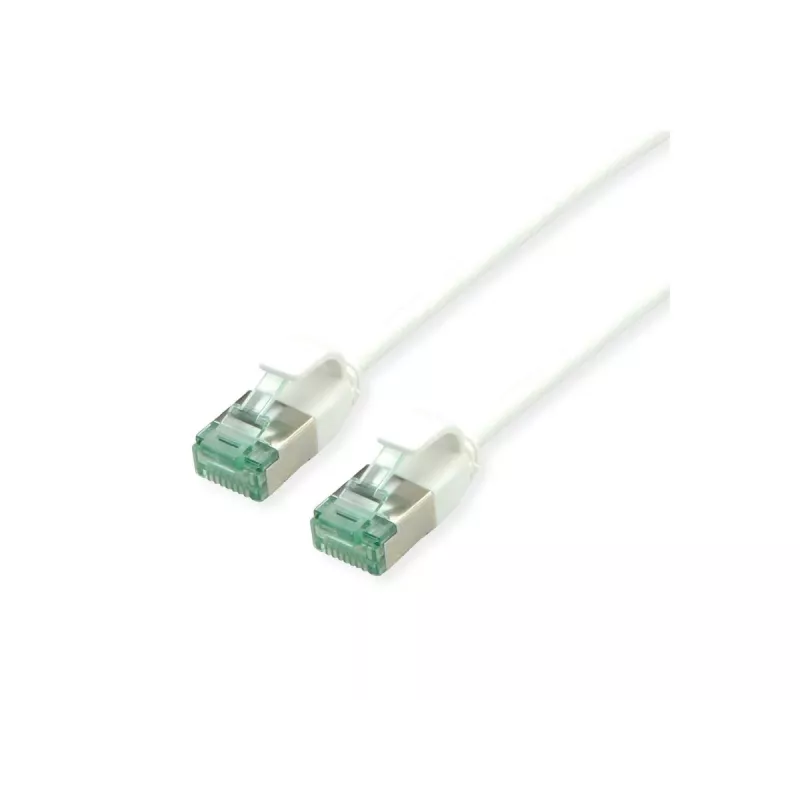

ROLINE RM U/FTP Cat.6A Class EA Slim cavo patch, bianco, 1,5 m 21.45.3364

Experience 10 Gigabit Ethernet performance with this slim Cat.6A patch cable, featuring U/FTP shielding and a bandwidth of up to 500 MHz for reliable high-speed data transfer.

Overview

The ROLINE RM U/FTP Patch Cable is engineered for demanding network environments. With a length of 1.5 m, it connects devices in data centers, offices, and home networks. The cable supports 10GBASE-T, ensuring compatibility with modern networking equipment.

What stands out

• U/FTP shielding: each pair is individually foil-shielded, with an overall foil shield, providing excellent protection against EMI and crosstalk.
• Slim design: the reduced diameter saves space in high-density patch panels and improves airflow.
• LSZH jacket: low smoke zero halogen material enhances safety in case of fire.
• Gold-plated RJ45 connectors ensure reliable connectivity and corrosion resistance.

Technical details

• Category: Cat.6A (Class EA)
• Shielding: U/FTP
• Length: 1.5 m
• Colour: White
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Copper, AWG 28, stranded
• Jacket: LSZH, halogen-free, flame retardant
• Connectors: RJ45 male to RJ45 male, gold-plated
• Wiring standard: TIA/EIA-568-C.2

Our verdict

A high-performance, space-saving patch cable that delivers reliable 10G connectivity with excellent shielding and safety features.
