S CONN MAXIMUM CONNECTIVITY cavo coassiale satellitare 1,1/5,0, schermatura quadrupla, CU > 110 dB, 100 m 15-24001006

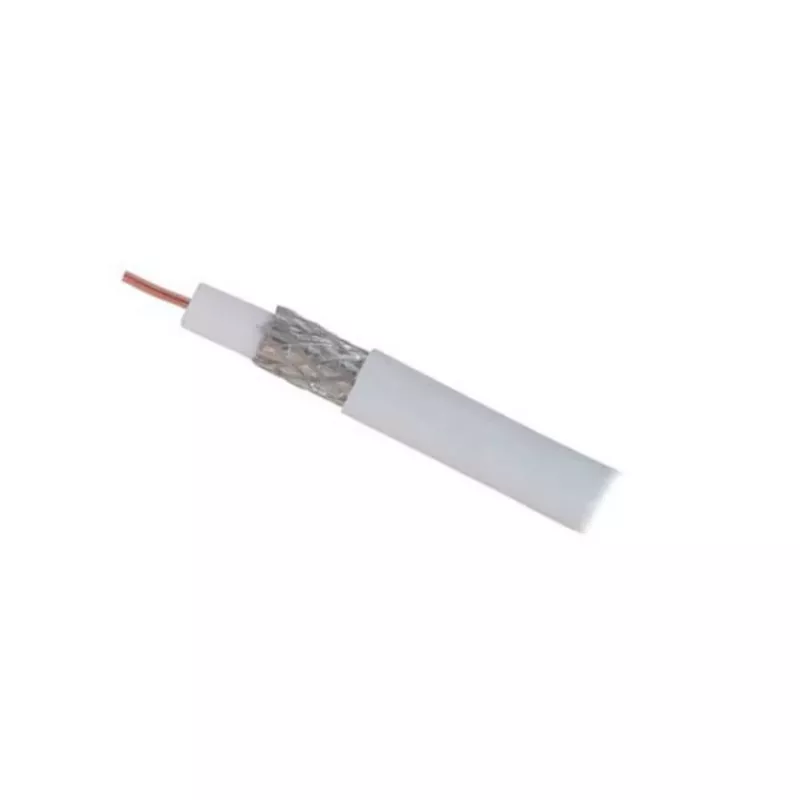

Built for satellite signal runs where attenuation must stay minimal, this S CONN MAXIMUM CONNECTIVITY coaxial cable delivers a 1.1 mm solid copper inner conductor and a 5.0 mm foamed polyethylene dielectric in a 100 m reel. The 4-fold shielding achieves a screening effectiveness above 110 dB, keeping DVB-S/S2, DVB-C and DVB-T/T2 signals clean across 5–2400 MHz at 75 Ω impedance.

Highlights

• Solid copper inner conductor, 1.1 mm diameter
• 4-fold shielding with > 110 dB effectiveness
• 75 Ω impedance, 5–2400 MHz frequency range
• Foamed PE dielectric, 5.0 mm diameter
• PVC jacket, approx. 7.0 mm outer diameter
• 100 m reel, no connectors fitted

In daily use

The cable arrives on a reel without connectors, so you can cut exact lengths and fit F-type or IEC connectors as your installation requires. The solid copper core and dense shielding suit long drops from LNB to receiver, while the PVC jacket is stiff enough to hold routing but flexible enough for tight bends in distribution cabinets.

Full specifications

• Cable type: Coaxial cable
• Application: Satellite TV, DVB-S/S2, DVB-C, DVB-T/T2
• Shielding type: 4-fold shielded
• Shielding effectiveness: > 110 dB
• Impedance: 75 Ω
• Inner conductor material: Copper (CU)
• Inner conductor diameter: 1.1 mm
• Dielectric material: Foamed polyethylene (PE)
• Dielectric diameter: 5.0 mm
• Outer diameter: 7.0 mm
• Length: 100 m
• Frequency range: 5–2400 MHz
• Jacket material: PVC
• Conductor type: Solid core
• Packaging: Cable reel

Final note

No connectors are fitted, so you have full freedom to terminate with F-type, IEC or other coaxial connectors as needed.
