S CONN MAXIMUM CONNECTIVITY cavo coassiale SAT 1,0/4,6, schermatura quadrupla, CCS, >110 dB, 100 m, bianco 15-40001006

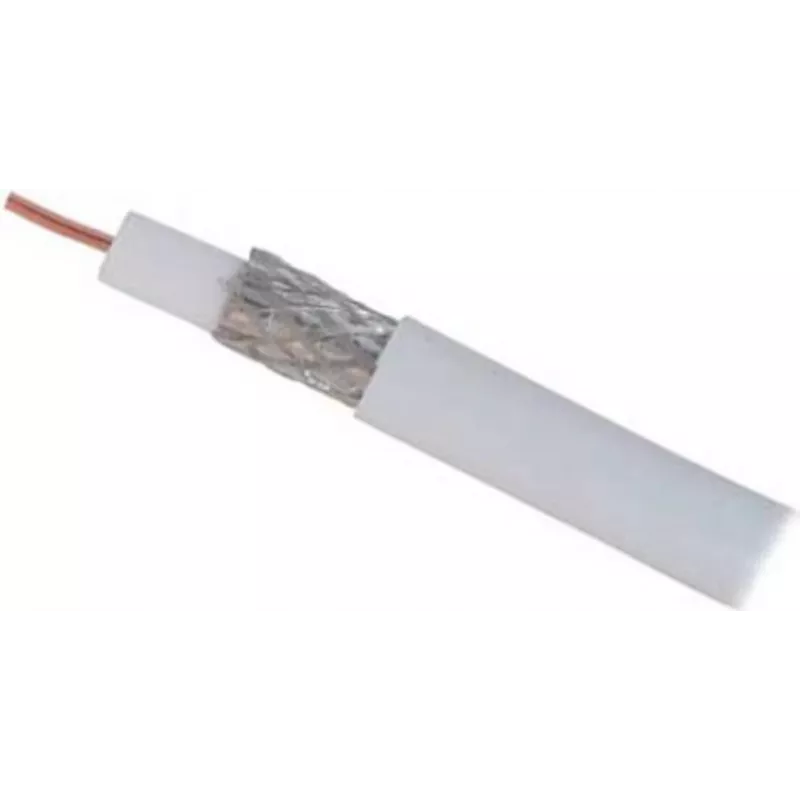

For satellite installers and home-theater technicians running long, interference-prone feeds, this 100-metre reel of S CONN MAXIMUM CONNECTIVITY SAT coaxial cable delivers the shielding and signal integrity needed for reliable DVB-S/S2 and broadband distribution. The 1.0 mm copper-clad steel inner conductor and 4.6 mm foam-PE dielectric form a precise 75-ohm transmission line, while the quad-shield construction—two bonded aluminium foils plus two aluminium braids—pushes shielding effectiveness beyond 110 dB across the critical 30–1000 MHz range.

Key specifications

• Cable type: SAT coaxial cable
• Inner conductor: copper-clad steel (CCS), 1.0 mm diameter
• Dielectric: foamed polyethylene (PE), 4.6 mm diameter
• Shielding: quad-shield (2x bonded aluminium foil + 2x aluminium braid, 64x0.12 mm, 45% coverage each)
• Shielding effectiveness: >110 dB (30–1000 MHz), >100 dB (1000–2000 MHz), >90 dB (2000–3000 MHz)
• Impedance: 75 Ω
• Outer jacket: PVC, 6.9 mm diameter, white
• Length: 100 m
• Attenuation: 6.0 dB/100 m @ 100 MHz, 20.0 dB/100 m @ 1000 MHz, 32.0 dB/100 m @ 2150 MHz, 39.0 dB/100 m @ 3000 MHz
• Return loss: >20 dB (5–3000 MHz)
• Velocity of propagation: 85%
• Operating temperature: -20 °C to +75 °C

Why choose it

The quad-shield design and high shielding effectiveness make this cable a strong choice for installations where LTE, 5G, or other RF interference could degrade signal quality. The CCS inner conductor provides good tensile strength for pulling through conduits, while the foam-PE dielectric keeps attenuation low across the satellite IF band.

Ideal use cases

• Satellite TV distribution from LNB to multiswitch or receiver
• Head-end and SMATV systems
• Long indoor/outdoor runs where interference is a concern
• Professional AV and broadcast installations

Good to know

The cable is supplied on a 100-metre reel and has no connectors, allowing custom termination with F-type or other coaxial connectors as needed. Its white PVC jacket blends into residential interiors and is suitable for both indoor and protected outdoor use.
