Scheda di interfaccia DeLOCK 90307

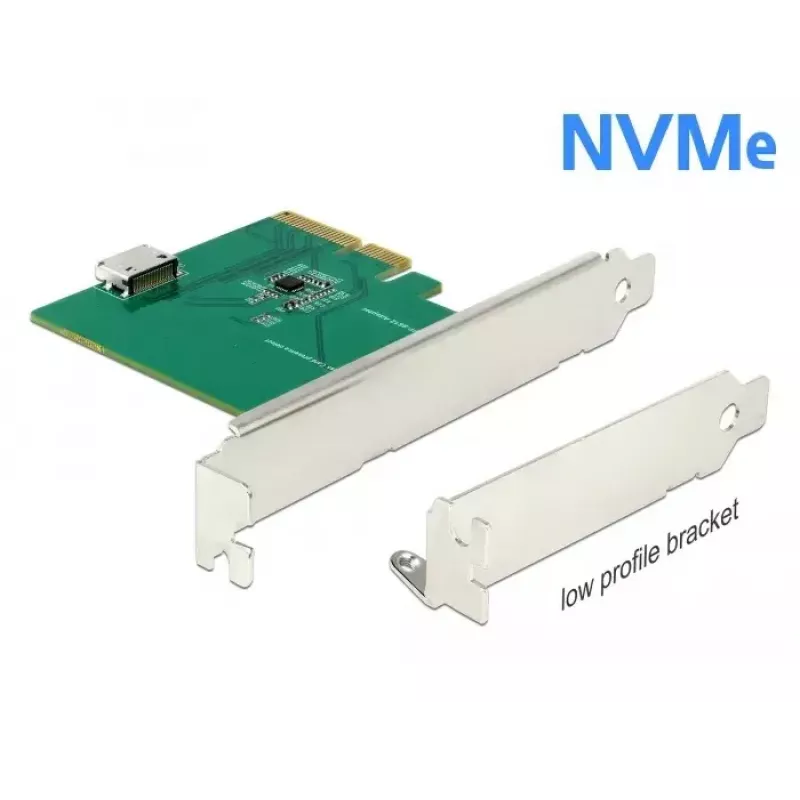

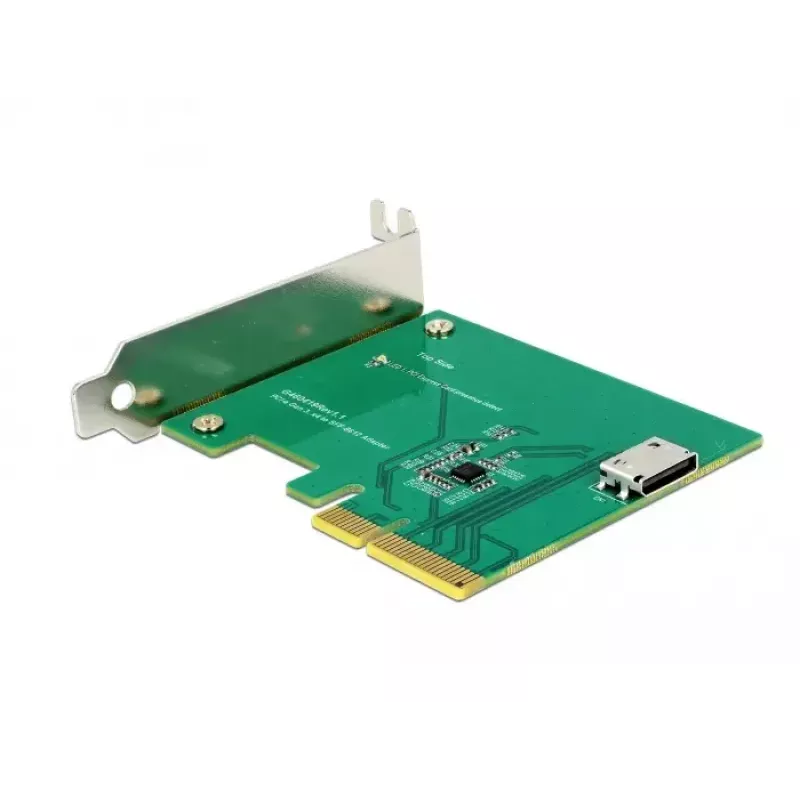

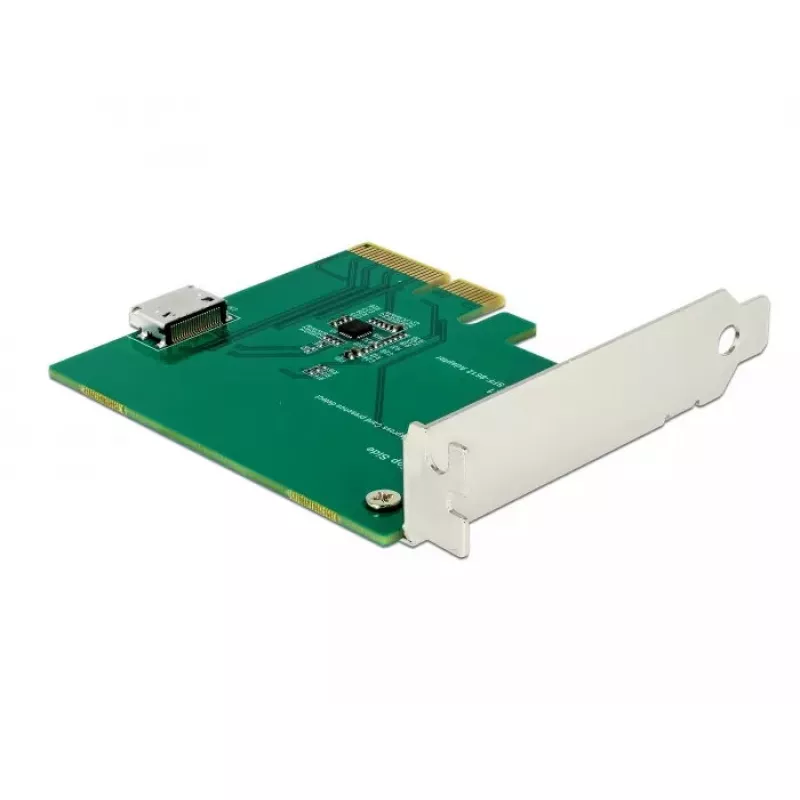

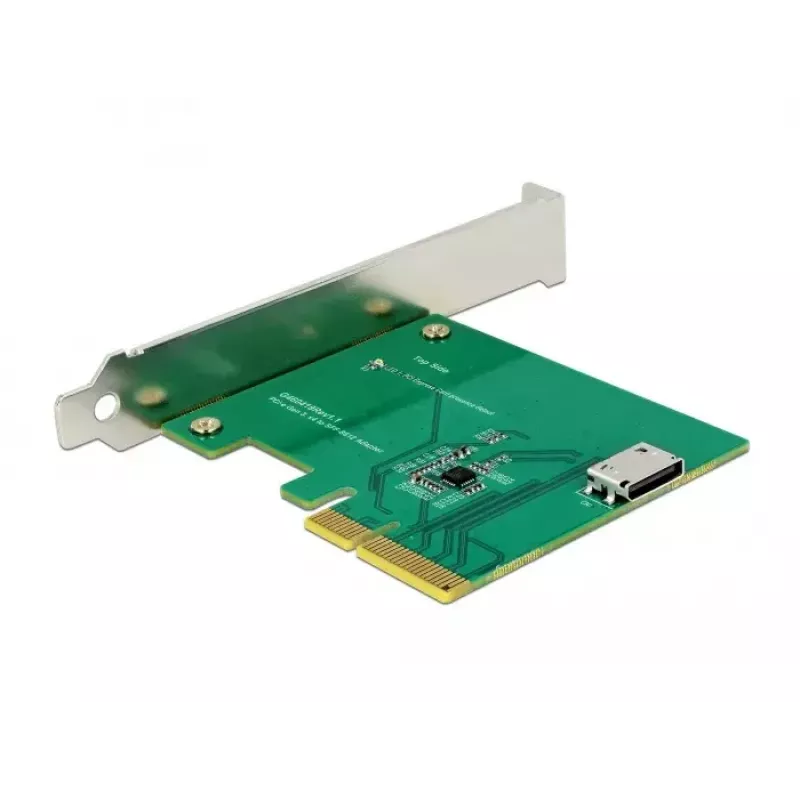

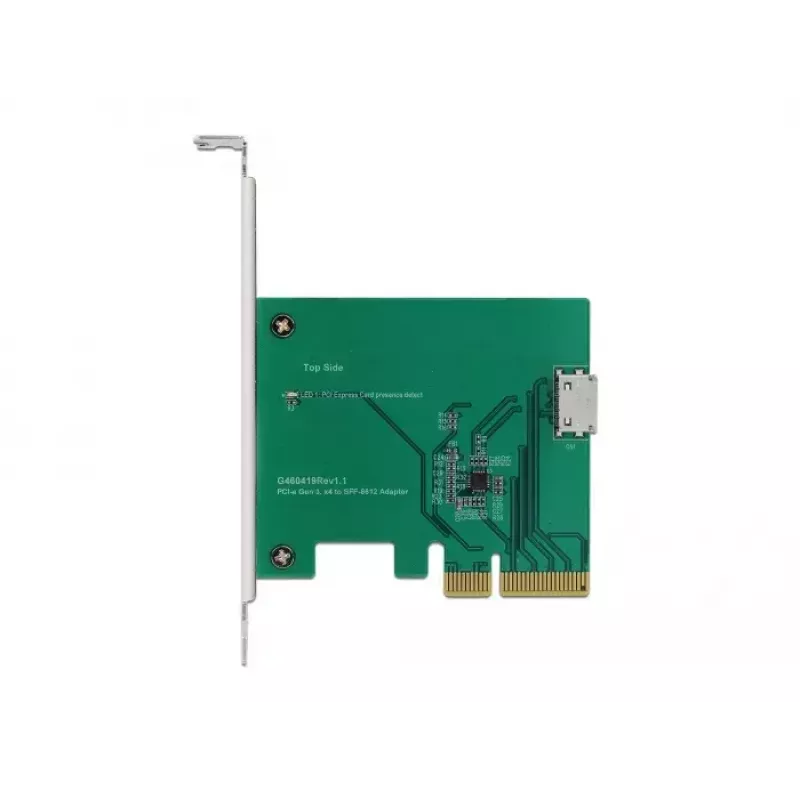

The DeLOCK 90307 is an internal PCIe interface card that adds one SFF-8612 port to a desktop PC. It supports PCI Express 3.0 and transmits PCIe signals using the NVMe protocol, enabling connection of an SFF-8612 device such as an NVMe SSD via an appropriate cable.

Advantages

This PCIe card provides a compact and reliable way to expand system I/O by one internal SFF-8612 interface. It is compatible with Windows 10, 8.1 and 7 (both 64- and 32-bit) and conforms to standard PCIe host interface requirements, offering straightforward installation into an available PCIe slot.

Suitable for

Key specifications

How to use

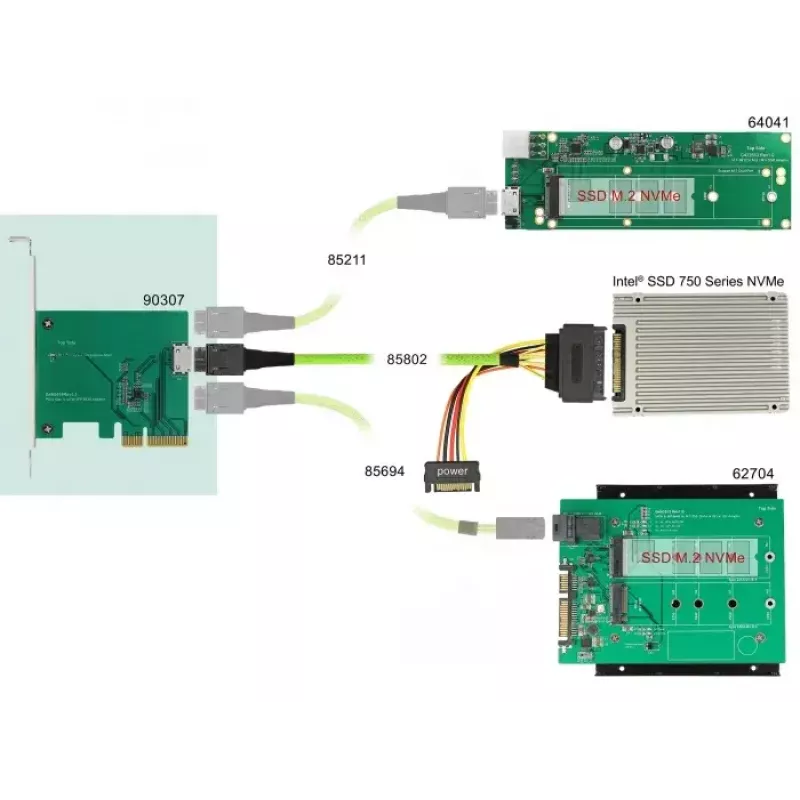

Power off the PC and open the case. Install the card into an available PCIe slot and secure it with the slot screw. Connect an SFF-8612-compatible device (for example an NVMe SSD) to the card using an appropriate SFF-8612 cable. Close the case, power on the system and verify device detection in the operating system. Install drivers if required by your OS.

Recommendations

The SFF-8612 device must be connected with a suitable cable (not included). Ensure BIOS/UEFI and OS support NVMe devices on the chosen PCIe slot and back up data before modifying storage configuration.
