Scheda di interfaccia DeLOCK 95234 interna USB 3.2 Gen 1

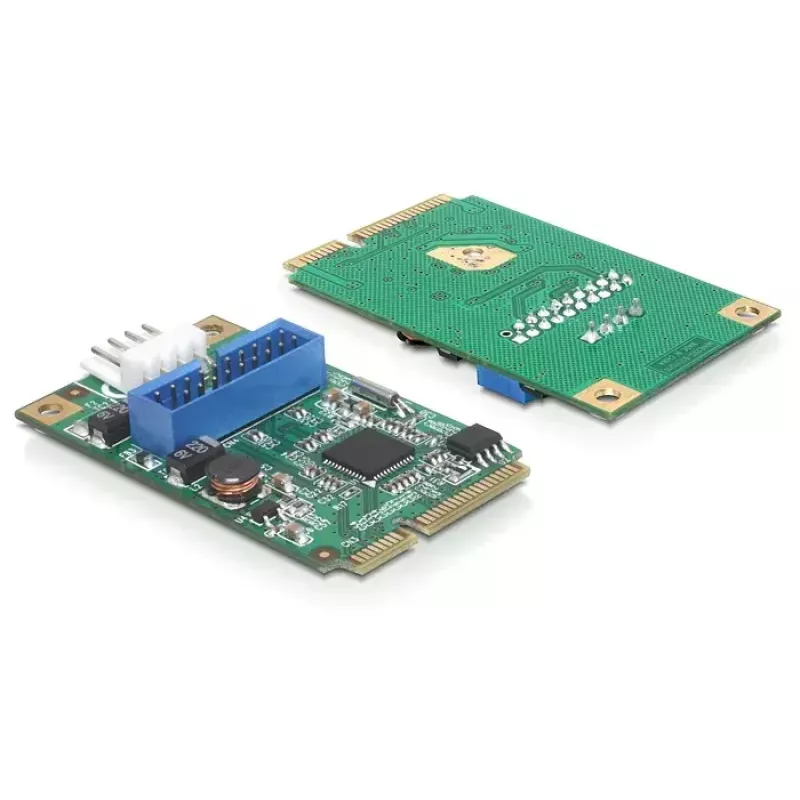

The DeLOCK 95234 is an internal miniPCIe interface card that provides an internal 19-pin USB 3.0 header. It connects to a Mini PCI Express slot and enables an internal USB 3.2 Gen 1 (USB 3.0 / USB 3.1 Gen 1) connection for devices or for routing to external ports included with the module. The card supports data transfer rates up to 5 Gbit/s and is intended for expanding USB connectivity inside a compatible system.

Advantages

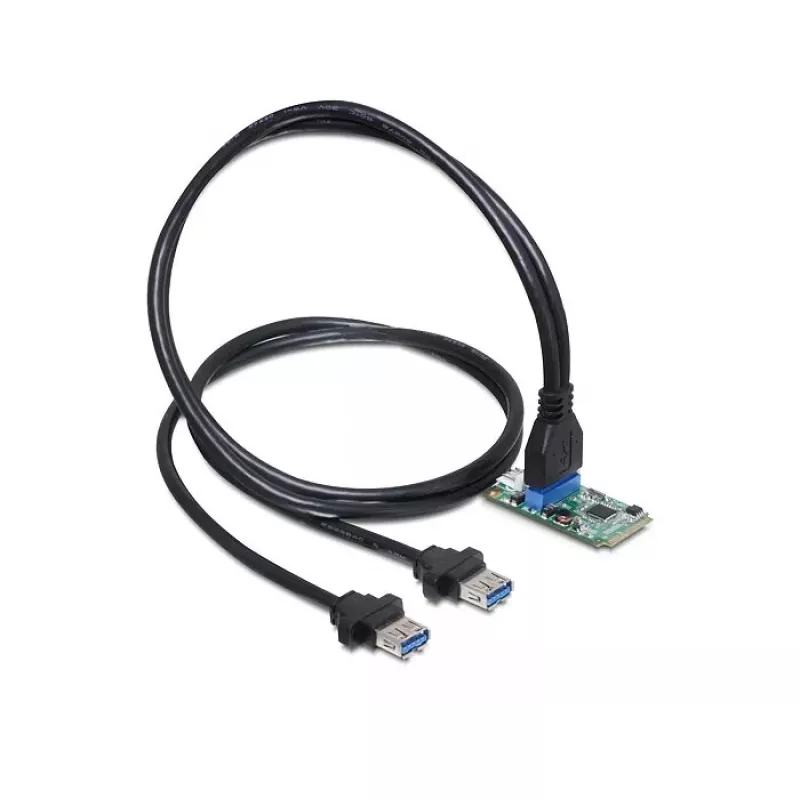

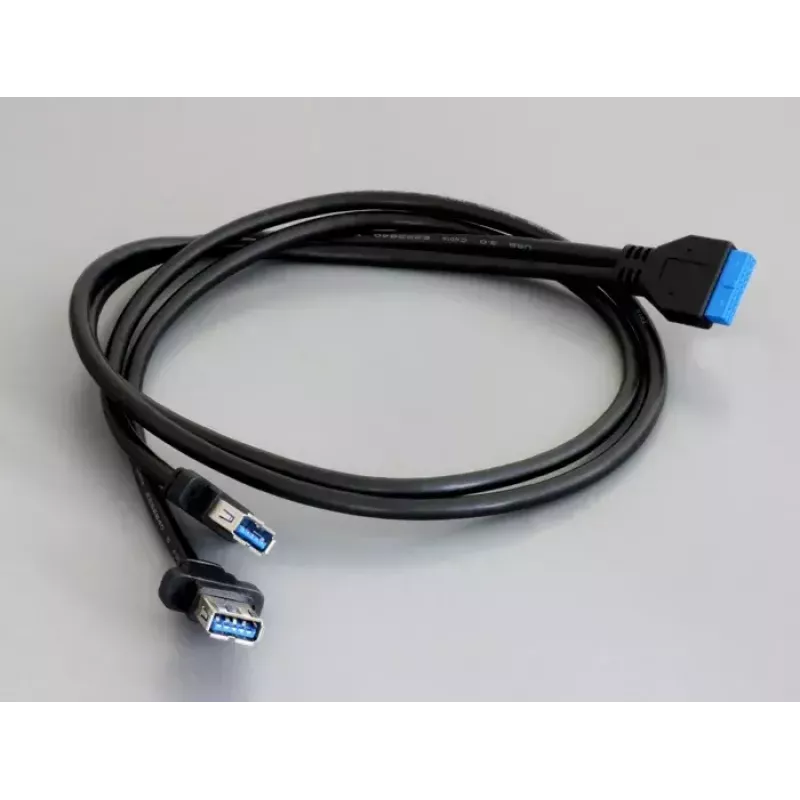

This miniPCIe module offers a compact way to add an internal 19-pin USB 3.0 header without using additional external brackets. It supports high-speed USB 3.2 Gen 1 transfers up to 5 Gbit/s and is compatible with systems that provide a Mini PCI Express slot. The package includes two USB-A female ports that can be connected to the header if external access is required.

Suitable for

Key specifications

How to use

Install the DeLOCK 95234 into a free Mini PCIe slot on the motherboard following standard ESD precautions. Connect the internal 19-pin USB header on the card to your internal device or to the provided cable that terminates in two USB-A female ports, depending on your need for internal or external access. After installation, start the system and install any required drivers or verify native OS support for USB 3.2 Gen 1 to enable full functionality.

Recommendations

Use the module in systems with a compatible Mini PCI Express slot and ensure chassis clearance for internal cabling. For maximum performance, connect USB 3.0/3.1 Gen 1 devices and use proper drivers provided by the operating system. Avoid routing high-speed cables near strong electromagnetic sources to maintain signal integrity.
