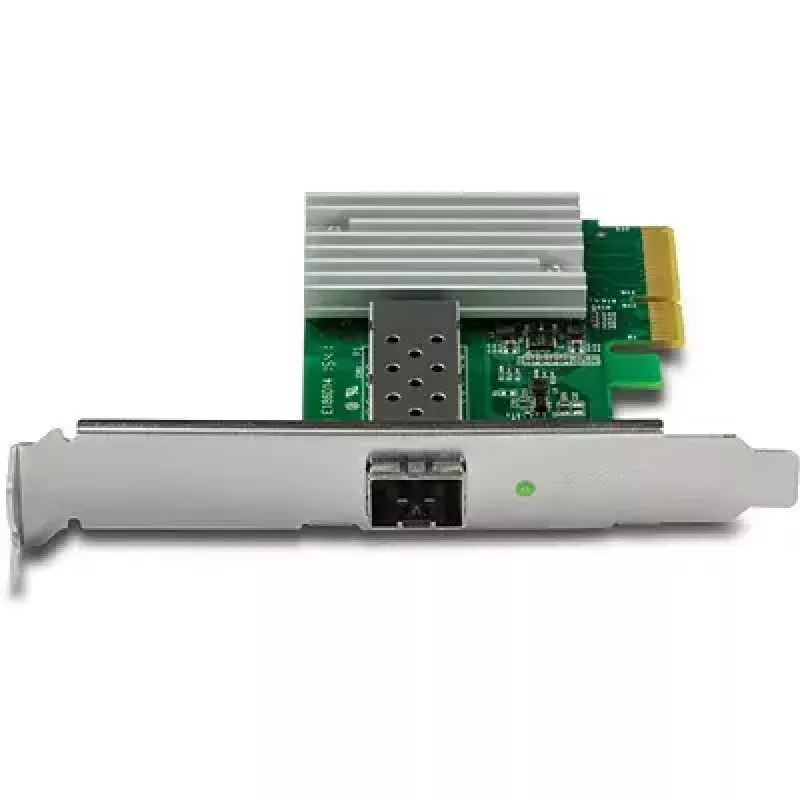

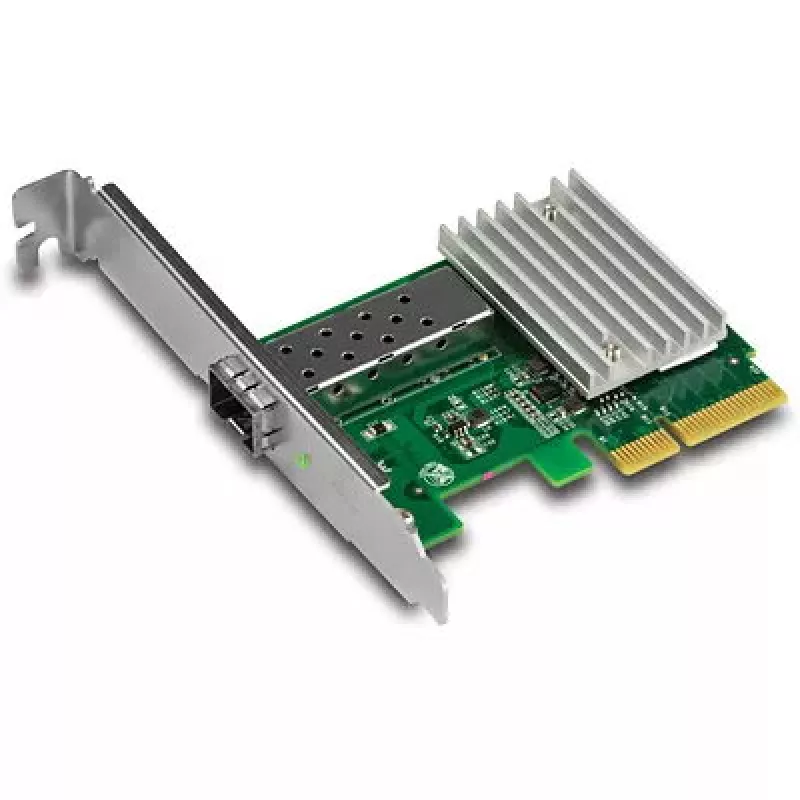

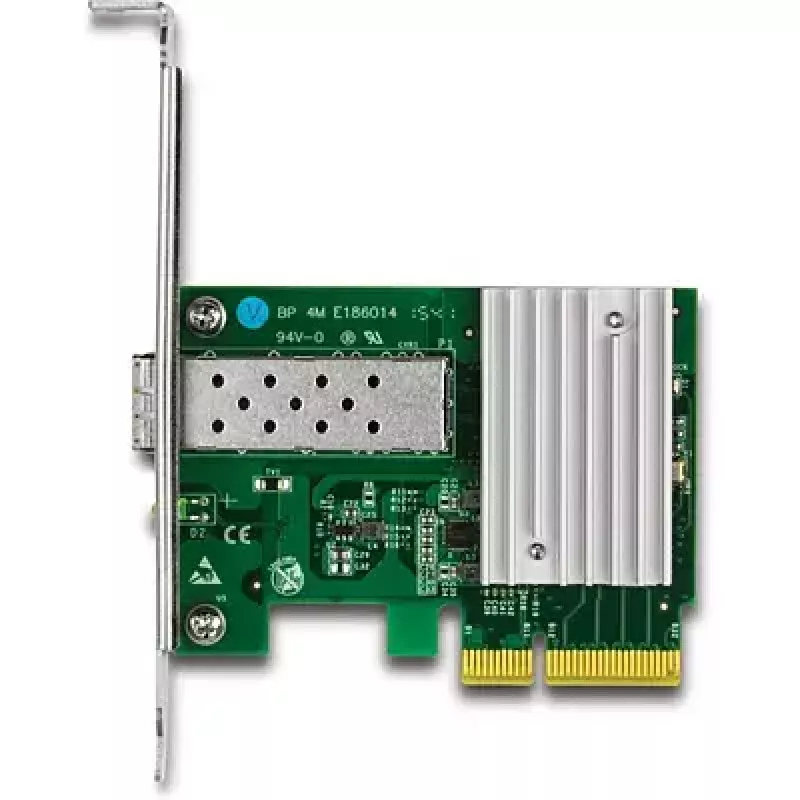

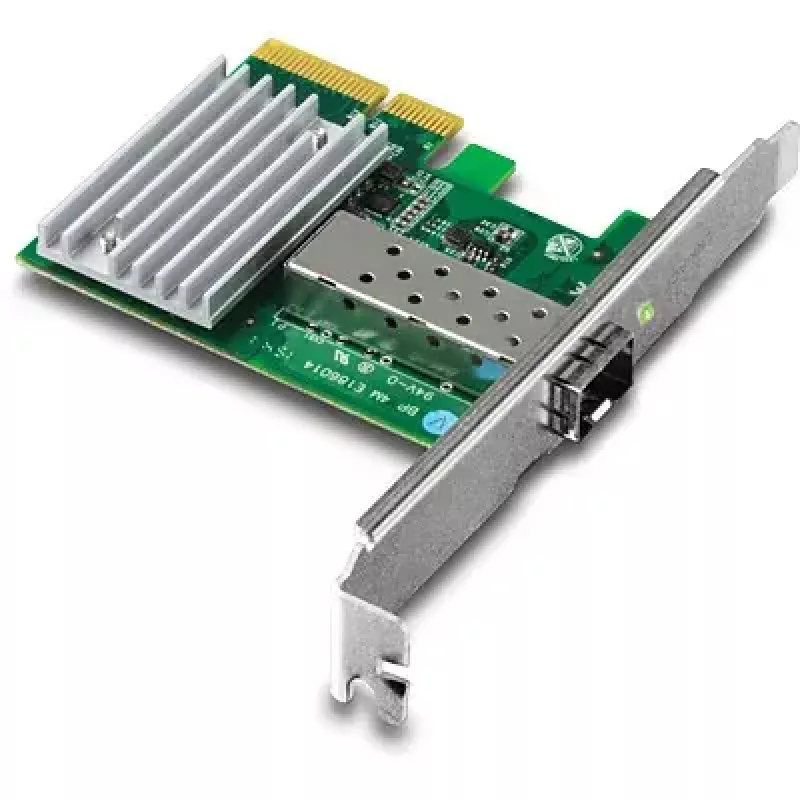

Scheda di rete Trendnet TEG-10GECSFP Interna Fibra 10000 Mbit/s

The TRENDnet TEG-10GECSFP is an internal 10 Gigabit SFP+ network adapter that installs into a PCI Express slot to provide high-speed fiber connectivity. Compatible with Windows and Linux desktop systems, the card supports jumbo frames and VLAN tagging and includes both standard and low-profile brackets for a variety of chassis.

Advantages

This network card delivers a 10 Gigabit SFP+ port for low-latency, high-bandwidth connections and supports jumbo frames up to 16 KB to improve throughput for large-packet traffic. The adapter is compatible with common networking standards (IEEE 802.3ae, 802.3ad, 802.1Q), and the package contains standard and low-profile brackets to fit different PC enclosures. A status LED provides basic activity indication.

Suitable for

• Upgrading a desktop PC to 10 Gigabit fiber connectivity
• High-bandwidth applications such as file servers, virtualization hosts, and media editing workstations
• Networks requiring VLAN tagging and link aggregation support

Key specifications

• Interface: SFP+ (one slot)
• Host interface: PCI Express
• Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
• Jumbo frames: up to 16 KB
• Supported standards: IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1Q
• Included brackets: standard and low-profile
• Product colours: green, silver
• Weight: 0.058 kg

How to use

Power down the computer and install the TEG-10GECSFP into an available PCI Express slot, then attach the appropriate bracket (standard or low-profile) for your chassis. Insert a compatible SFP+ transceiver and connect the fiber cable to the module. Power on the system and install the required drivers for your operating system (Windows or Linux). Verify link activity using the adapter LED and confirm configuration of jumbo frames, VLANs or link aggregation in the OS or switch settings as needed.

Recommendations

Use compatible SFP+ transceivers and fiber optics rated for 10 Gbps. For optimal throughput with large transfers, enable jumbo frames on both the adapter and connected network devices and ensure drivers are up to date.
