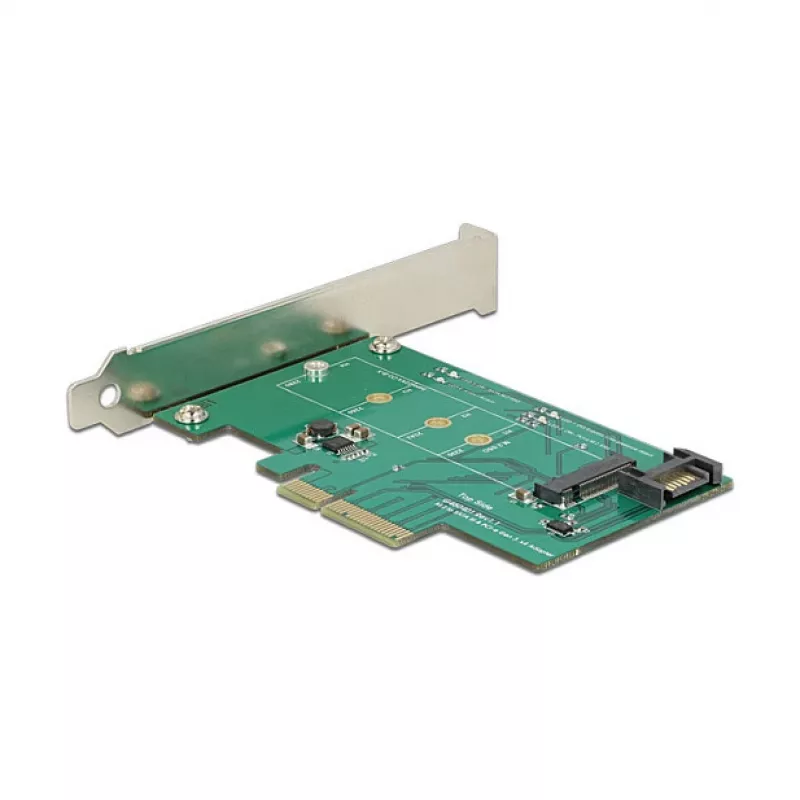

Scheda interfaccia DeLOCK 89381 interna M.2 SATA

The DeLOCK 89381 is an internal PCIe interface card that adds one M.2 slot to a desktop PC. It supports M.2 SATA modules in sizes 2280, 2260, 2242 and 2230 and connects to the system via a PCI Express slot. For M.2 modules using the SATA protocol a SATA 7‑pin cable must be connected from the card to the motherboard.

Advantages

The card provides a compact way to add an internal M.2 SATA interface without changing the motherboard, supports multiple M.2 module lengths and uses the PCIe host interface for stable connectivity. It is an internal solution suitable for systems that require additional SATA-based M.2 storage.

Suitable for

Key specifications

How to use

Install the card into an available PCI Express slot on the motherboard. Mount an M.2 SATA module of a supported length into the M.2 slot and secure it according to the module size. If the installed M.2 module operates over the SATA protocol, connect a SATA 7‑pin cable from the card’s SATA connector to the motherboard’s SATA port. Power on the PC and check BIOS/OS for the new storage device.

Recommendations

Ensure the motherboard BIOS supports additional SATA devices and confirm available PCIe slots before installation. Use a SATA 7‑pin cable of appropriate length and quality when connecting SATA-based M.2 modules.
