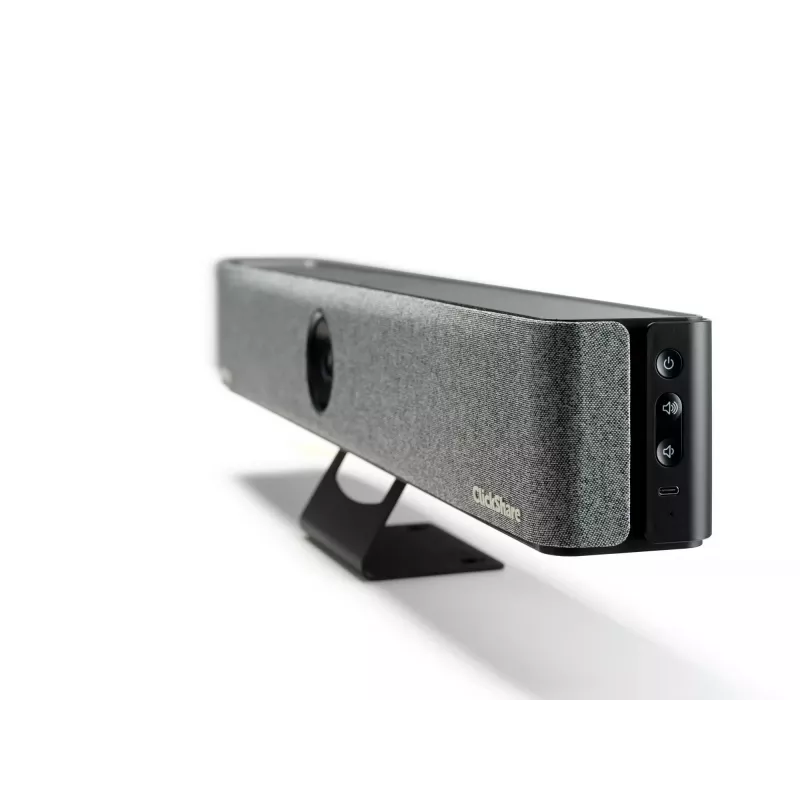

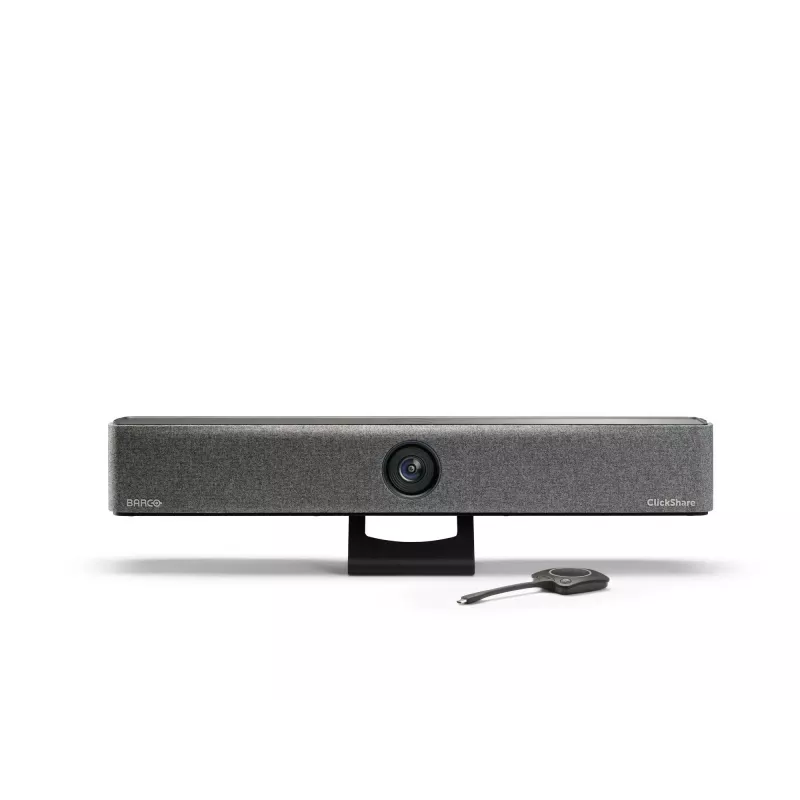

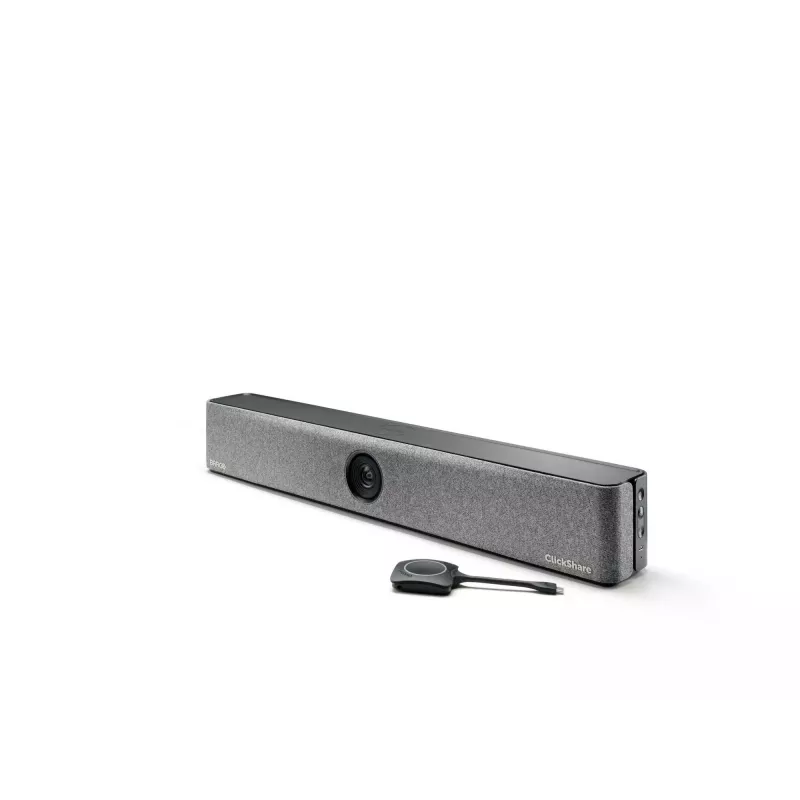

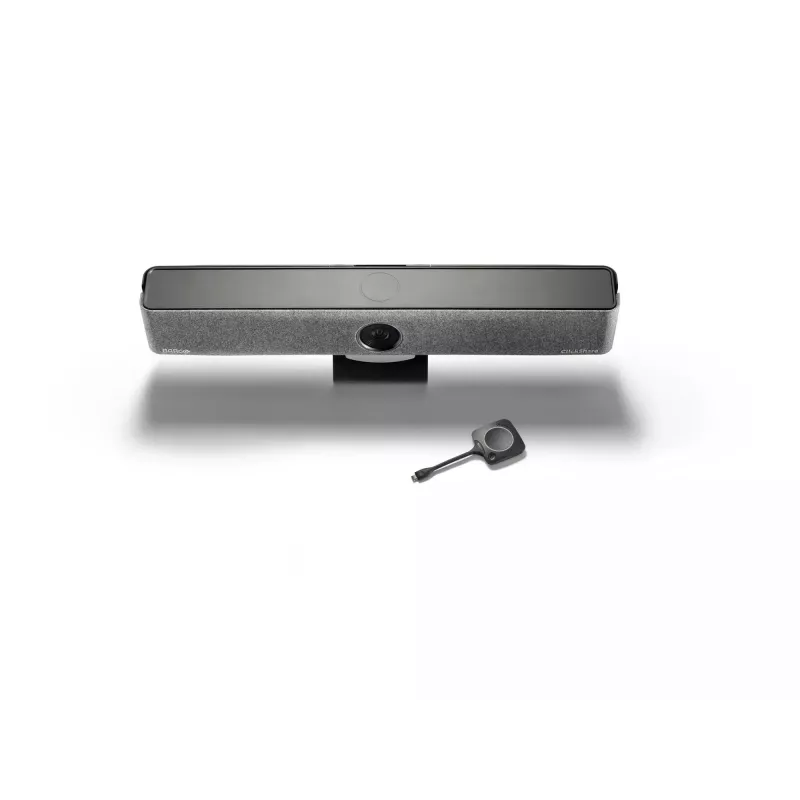

Sistema di presentazione wireless Barco Bar Core HDMI Desktop

ClickShare Bar Core is a carbon-neutral, all-in-one video bar designed for engaging, effortless wireless conferencing in small and medium-sized meeting rooms. The desktop unit supports HDMI input up to 3840 x 2160 resolution, connects over Wi‑Fi 5 (802.11ac) on 2.4 and 5 GHz bands, and is powered from AC (110–220 V) with a maximum power consumption of 65 W. Its compact black and grey design includes a Kensington cable lock slot for added security.

Advantages

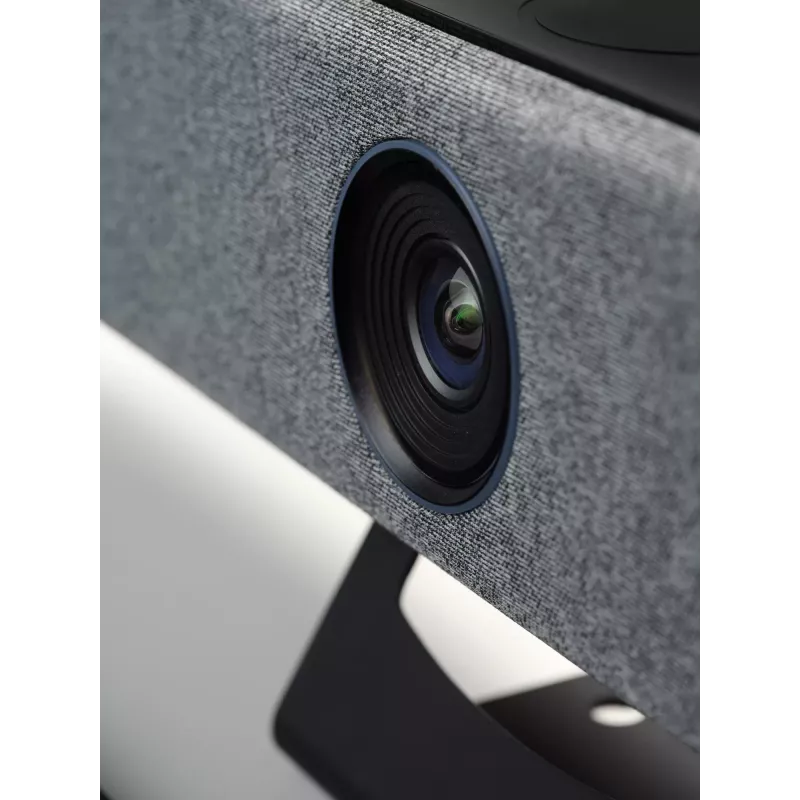

The Barco Bar Core combines camera, microphone and speaker in a single desktop form factor to simplify room setup and reduce cable clutter. Native support for HDMI input at up to 4K resolution ensures high-quality video for presentations and video calls. Wi‑Fi 5 connectivity on both 2.4 and 5 GHz bands allows flexible placement without running network cabling. The device is energy-rated with a maximum consumption of 65 W and includes a Kensington lock slot for physical security.

Suitable for

• Small meeting rooms and huddle spaces
• Medium-sized conference rooms
• Desktop installations where minimal cabling is required
• Organizations using HDMI-based sources and common videoconferencing platforms

Key specifications

• Model: Barco ClickShare Bar Core (R9861632EUB1)
• Video input: HDMI, up to 3840 x 2160
• Wireless: Wi‑Fi 5 (802.11ac), 2.4 / 5 GHz
• Power: AC 110–220 V, max 65 W
• Weight: 2.5 kg
• Colour: Black, Grey
• Security: Kensington cable lock slot
• EAN: 5415334048232

How to use

Place the Barco Bar Core on a desktop or table in the meeting room and connect AC power. Attach the HDMI source as needed and connect the device to the local network via Wi‑Fi 5 or use HDMI inputs for video sources. Use your preferred videoconferencing platform with the Bar Core as the audio and video peripheral. Configure basic settings through the device interface or management software to set network parameters, privacy options and camera/microphone preferences.

Recommendations

For best audio and video performance position the unit centrally on the table facing participants, use the 5 GHz band for higher bandwidth needs, and secure the device with the Kensington lock when installed in shared or public spaces.
