StarTech.com rack mobile/backplane M.2 NVMe SSD a PCIe x4 con vano estraibile per slot di espansione PCI Express, installazione senza attrezzi, vano unità hot-swap PCIe 4.0/3.0, serratura a chiave – 2 chiavi incluse

Install into a PCIe x 4 (and up) expansion slot to add a removable and lockable M.2 NVMe drive tray (drive not included)

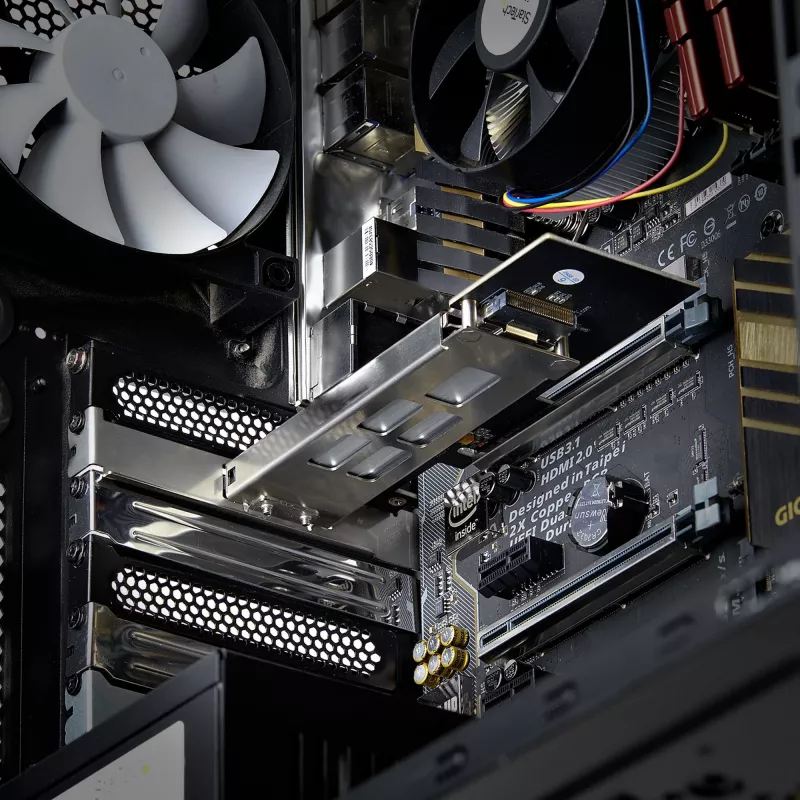

Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.

Toolless Installation

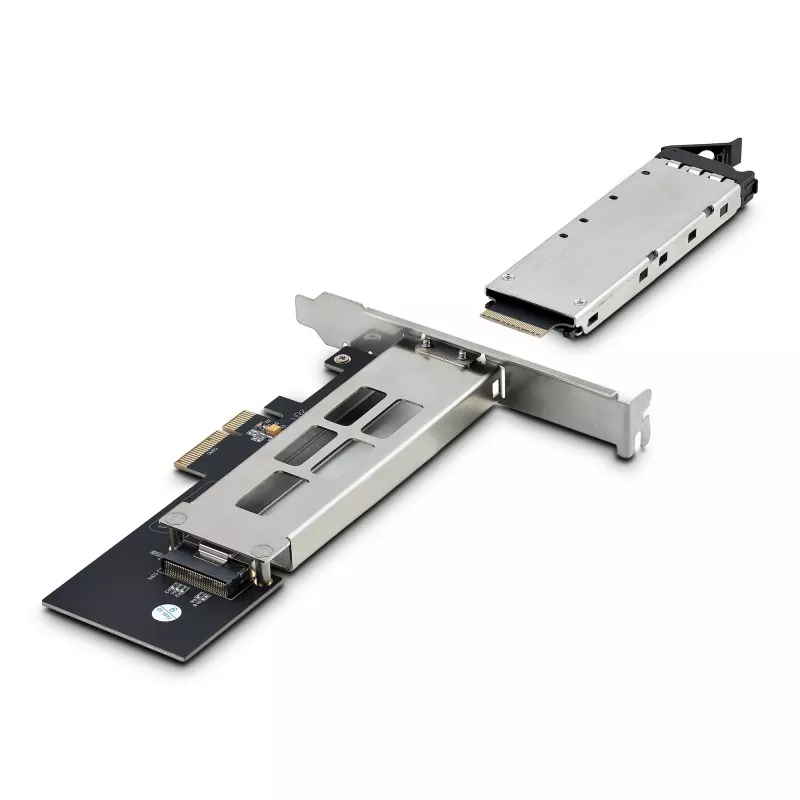

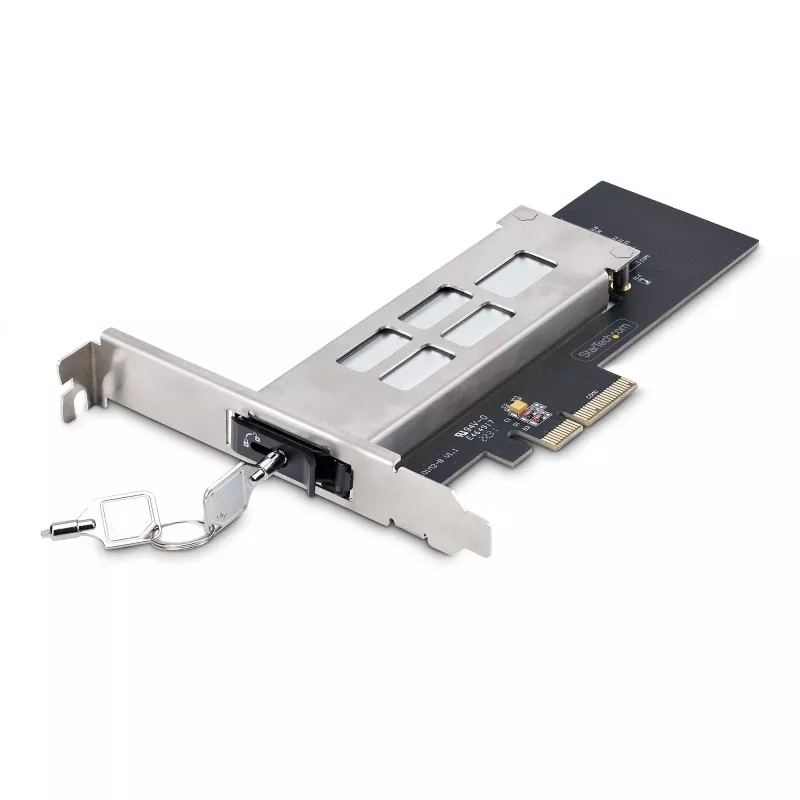

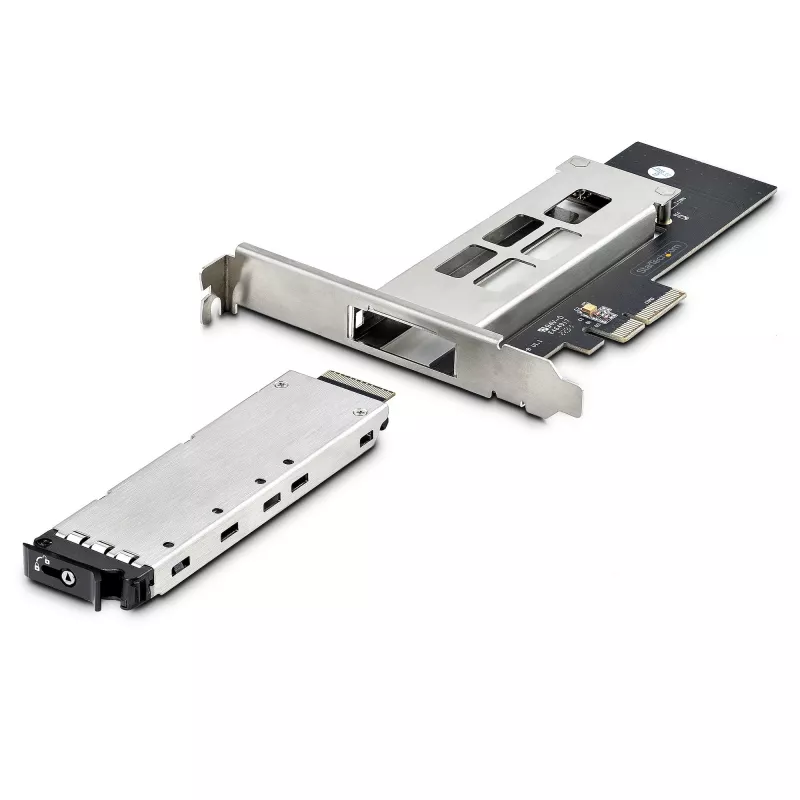

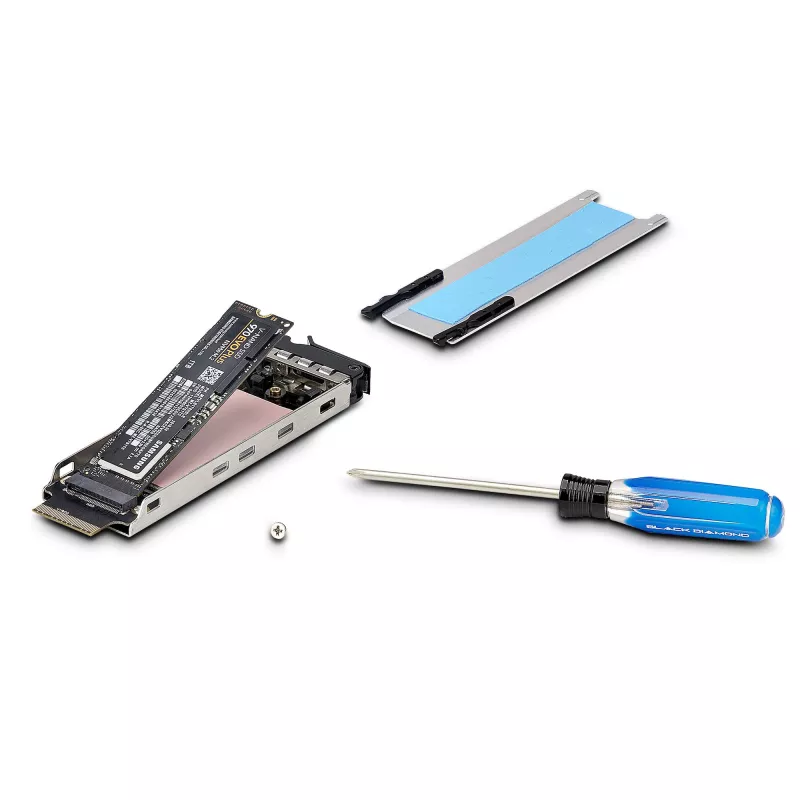

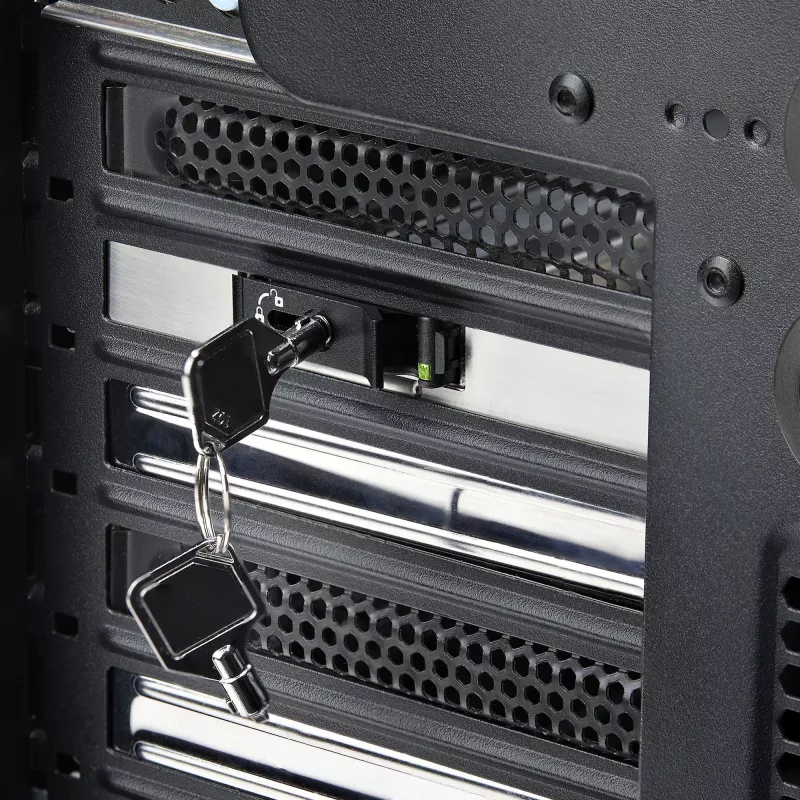

Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.

Optimal Performance

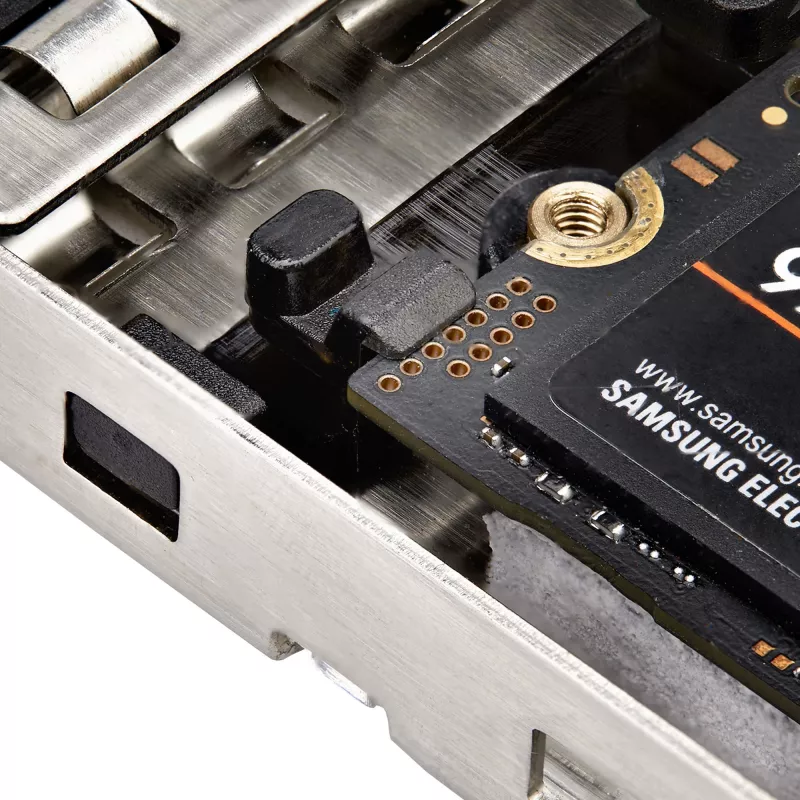

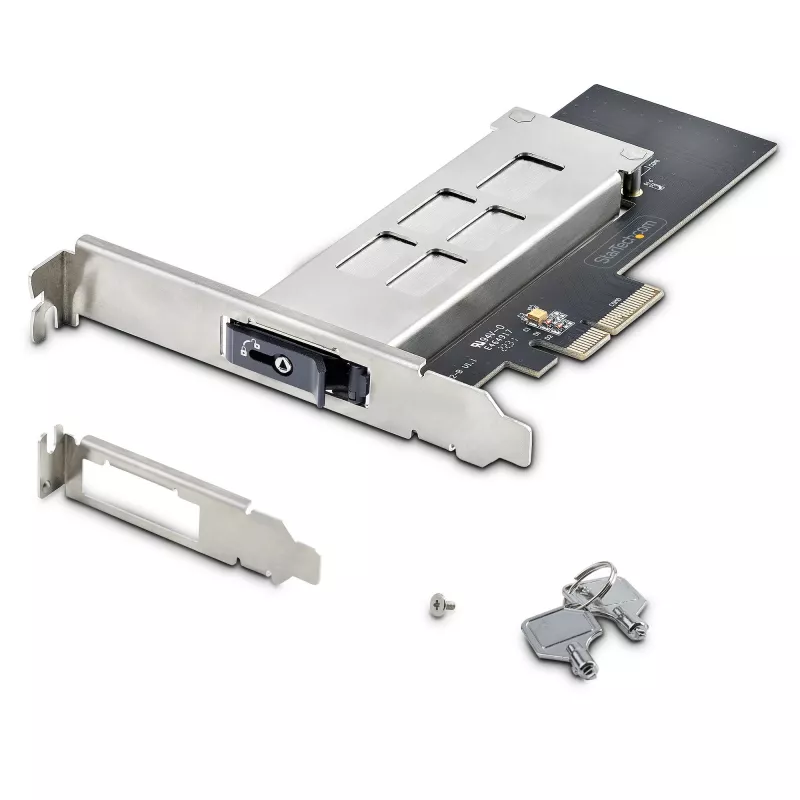

The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems.

Hot-Swappable

Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) provide flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature.

The StarTech.com Advantage

StarTech.com M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 4.0. Product colour: Black, Silver, Purpose: PC, Mean time between failures (MTBF): 10000 h. Data transfer rate (max): 64 Gbit/s. Width: 120 mm, Depth: 167 mm, Height: 19 mm. Package width: 151 mm, Package depth: 230 mm, Package height: 46 mm
