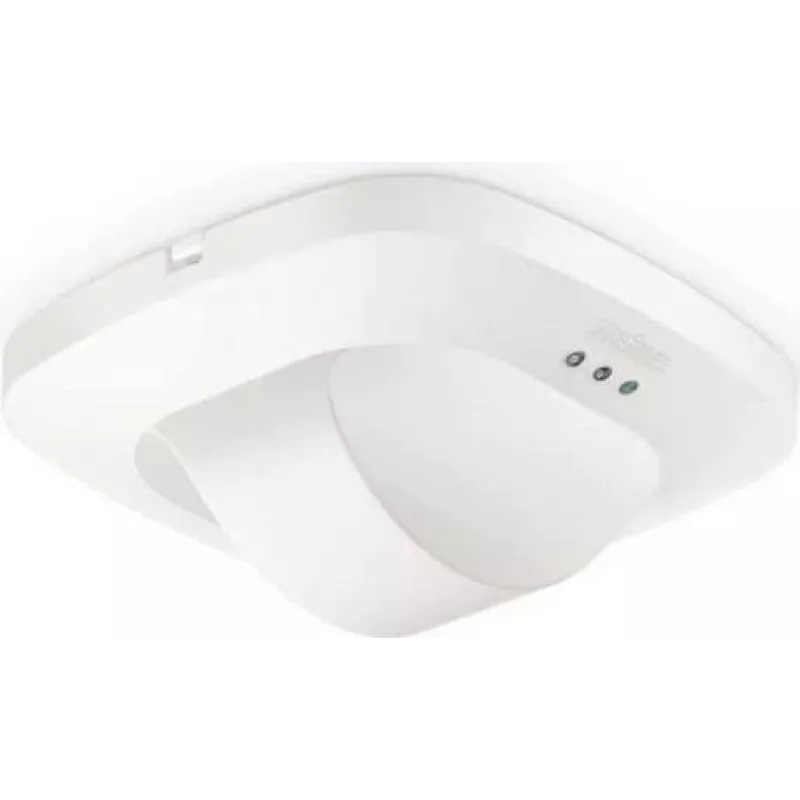

STEINEL PCPRODUALHF rilevatore di presenza a microonde, 360°, 5,8 GHz, COM1, montaggio a soffitto, bianco

Ceiling-mounted high-frequency presence detector with 360° coverage and a maximum radial range of 5 m, ideal for automatic lighting control in indoor spaces. The 5.8 GHz radar sensor penetrates thin walls and partitions, enabling discreet installation behind ceilings or in luminaires.

Advantages

Reliable detection of micro-movements such as typing or reading, ensuring lights stay on while occupants are present. The COM1 switching output handles up to 2000 W resistive or 1000 W LED loads, making it suitable for a wide range of lighting systems. Adjustable time and twilight settings allow customization for energy savings and user comfort.

Suitable for

• Offices and meeting rooms
• Classrooms and training facilities
• Corridors and stairwells
• Restrooms and storage areas

Key specifications

• Sensor technology: High-frequency (radar) 5.8 GHz
• Detection angle: 360°
• Max. detection range: 5 m radial (approx. 78.5 m² area)
• Recommended mounting height: 2.5–3.5 m
• Power supply: 230–240 V AC, 50/60 Hz
• Switching capacity: 2000 W resistive, 1000 W LED/fluorescent
• Time setting: 30 s – 30 min
• Twilight setting: 10–1000 lux
• Protection rating: IP20 (indoor use only)
• Material: UV-resistant plastic, white

Recommendations

For optimal performance, install at a height of 3 m in open areas. Avoid placing near large metal objects or sources of electromagnetic interference. Use with LED luminaires up to 1000 W for reliable switching. Combine with a manual override switch for flexible control.
