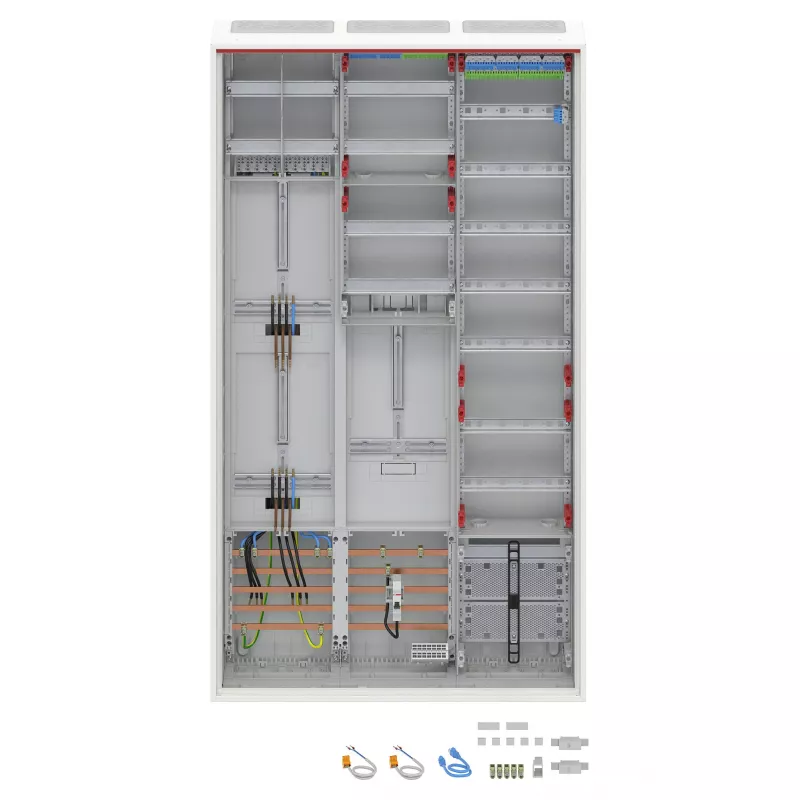

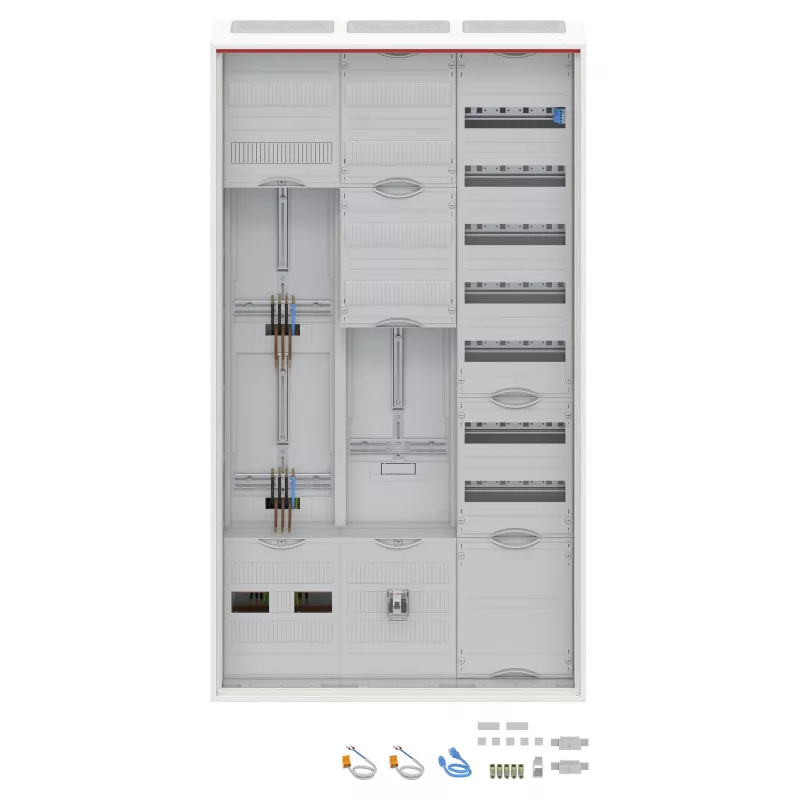

Striebel & John Quadro di distribuzione completo da parete AP DA39BY chiusura a tre punti A39 2CPX054263R9999

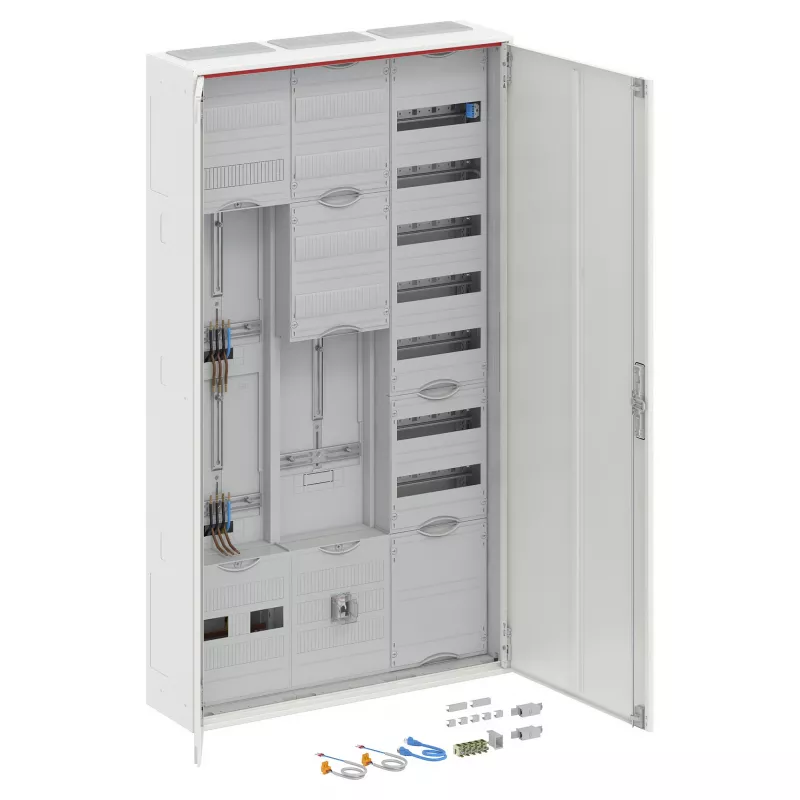

The Striebel & John Complete Surface-Mounted Distribution Cabinet AP DA39BY is a fully equipped enclosure designed for efficient and safe power distribution in residential and commercial installations. This complete cabinet integrates a three-point rod locking mechanism and is pre-configured for one meter field (eHZ/BKE-I ready) and one distribution field with 12 pitch units. Manufactured from robust sheet steel with a traffic white (RAL 9016) finish, it offers IP44 protection and is suitable for indoor and protected outdoor use.

Advantages

This distribution cabinet simplifies installation by providing a complete, pre-assembled solution that meets stringent German VDE standards. The surface-mounted design allows for flexible placement, while the three-point lock ensures secure access. The cabinet is ready for smart metering systems and offers ample space for distribution components.

Suitable for

• Residential and commercial power distribution
• Indoor and protected outdoor installations
• Integration of eHZ and BKE-I meter systems
• Applications requiring IP44 protection

Key specifications

• Mounting Type: Surface-mounted (AP)
• Locking Mechanism: Three-point rod lock
• Material: Sheet steel
• Colour: Traffic White (RAL 9016)
• Degree of Protection: IP44
• Protection Class: Class I
• Rated Operational Voltage: 400 V AC
• Rated Current: Up to 250 A
• Number of Meter Fields: 1 (eHZ / BKE-I ready)
• Number of Distribution Fields: 1
• Pitch Units per Distribution Field: 12
• Door Type: Steel door, right hinged (reversible)
• Cable Entry: Top and bottom, pre-punched
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100

Recommendations

For optimal performance, ensure that the cabinet is installed by a qualified electrician and that all local regulations are followed. This cabinet is designed for use with compatible metering and distribution components.
