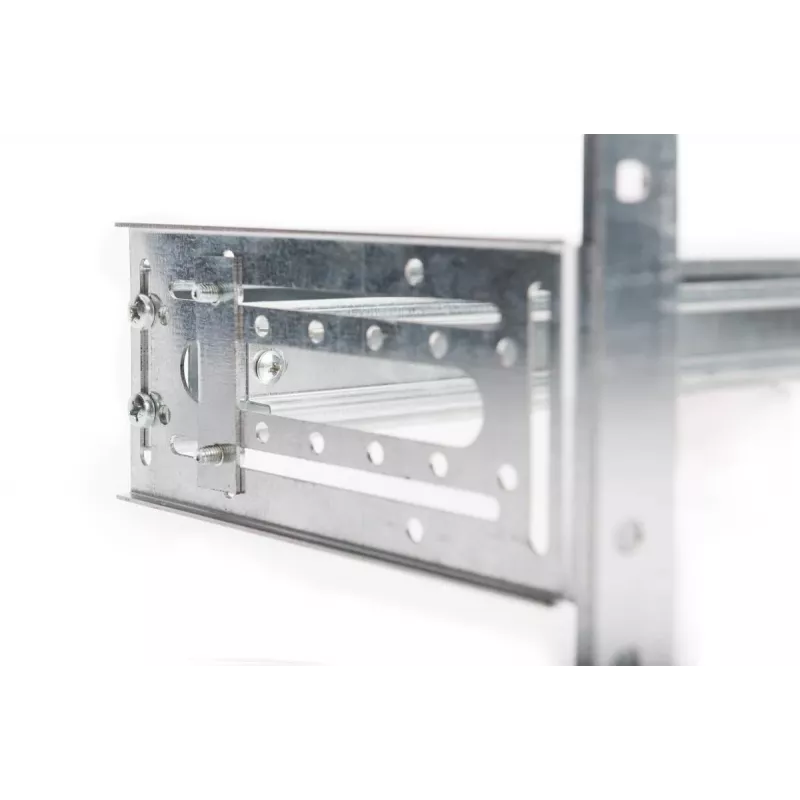

Supporto per guida DIN DIGITUS, 4U, 178 x 483 x 223 mm, zincato, incl. guida DIN, profondità e altezza variabili

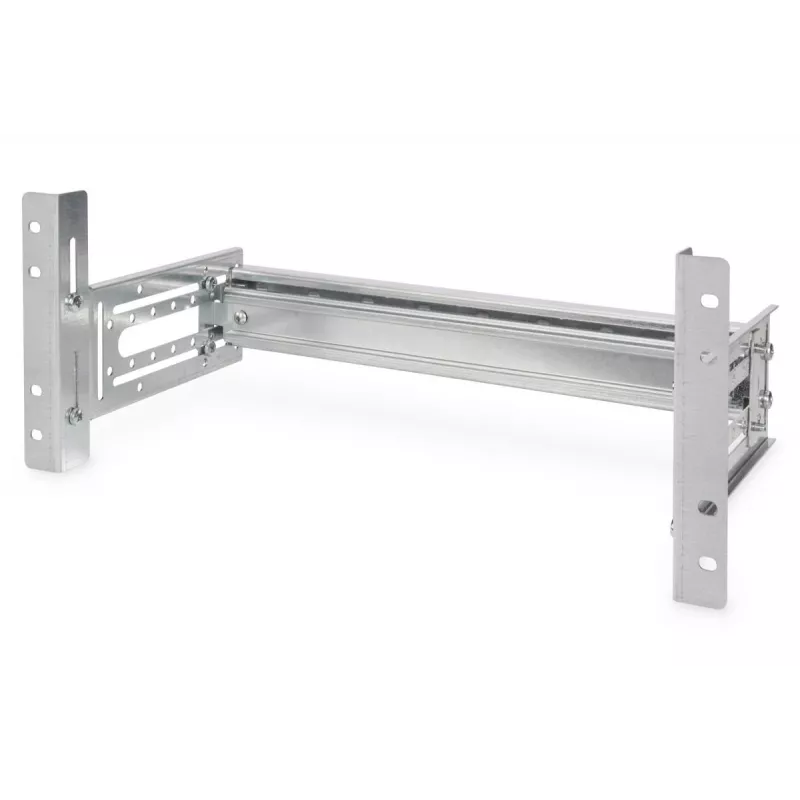

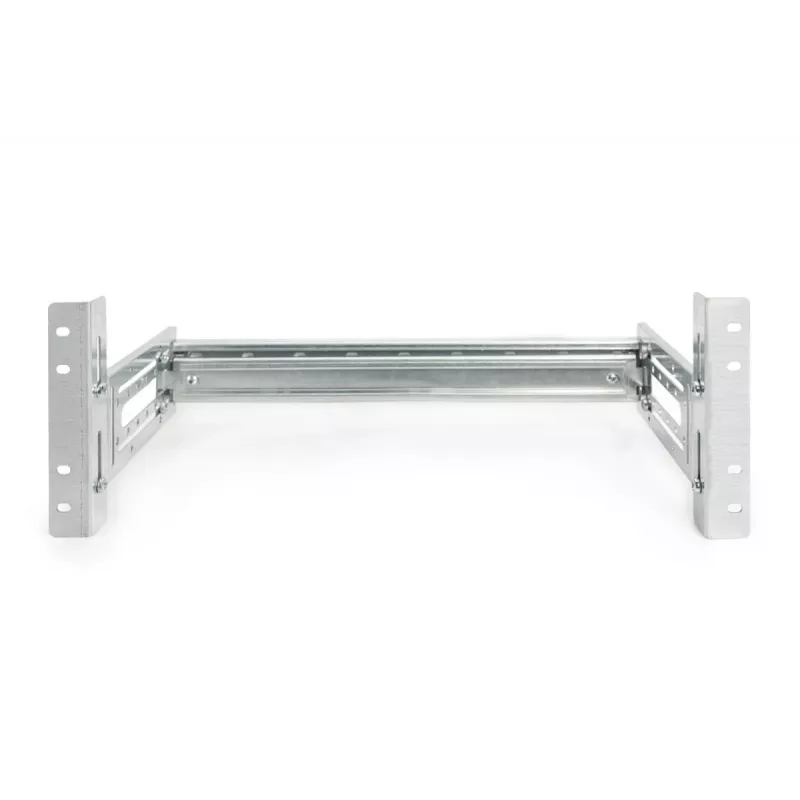

The 483 mm (19") DIN Rail Holder provides a quick, screwless mounting solution for 35 mm DIN rail equipment. It includes a pre-mounted 35 x 390 mm DIN rail (according to DIN EN 60715) with adjustable depth, and a rear C-shaped cable tray with adjustable height to optimise cabling. The entire frame can be height-adjusted within the rack using fixed 4U brackets to adapt to different space requirements.

Advantages

The holder enables fast installation of compatible devices without screws, supports horizontal mounting by rotating the rail 90° up or down, and simplifies cable management with a height-variable C-shaped tray and fixing points for tape or cable ties. Height adjustment of the complete frame allows flexible positioning within standard racks.

Key specifications

• Compatible rail: 35 mm DIN rail, mounted according to DIN EN 60715
• DIN rail dimensions (HxW): 35 x 390 mm
• Overall holder width: 483 mm (19")

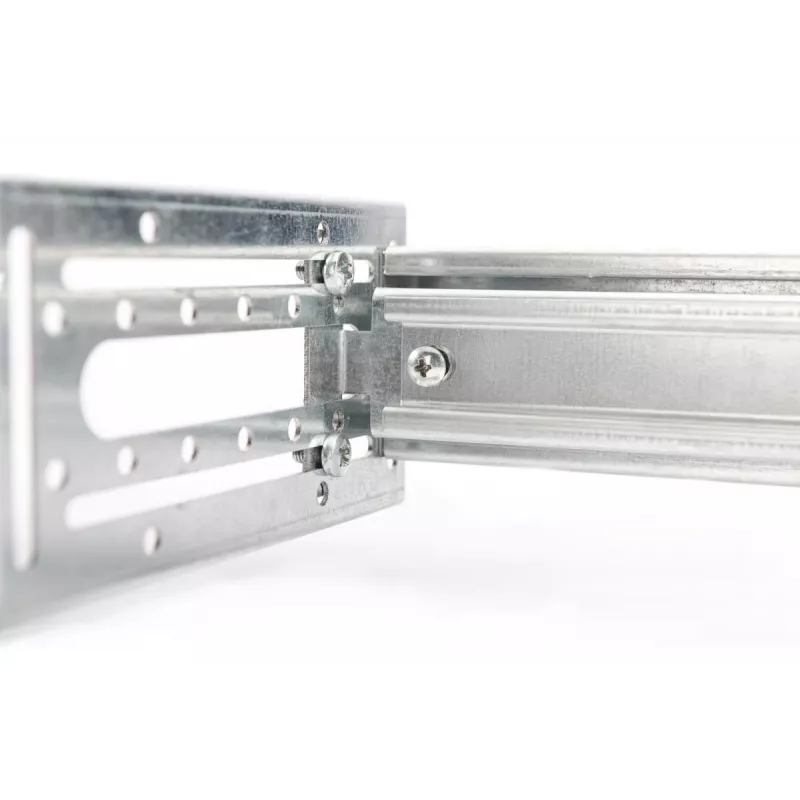

• Depth: variable, rail can be rotated 90° for horizontal mounting

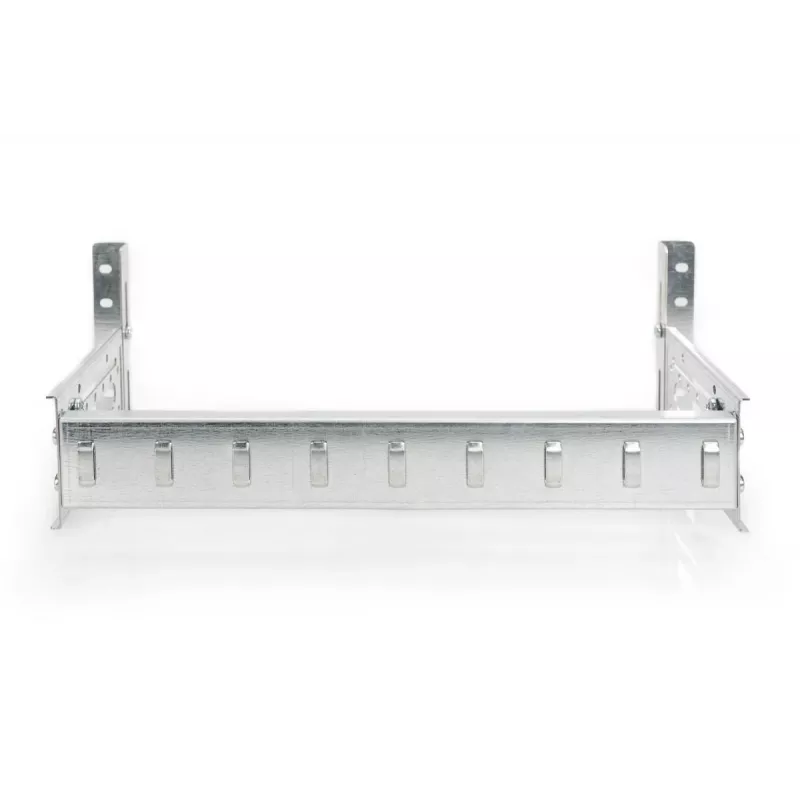

• Cable tray: C-shaped, height-variable, with fixing points for tape or cable ties

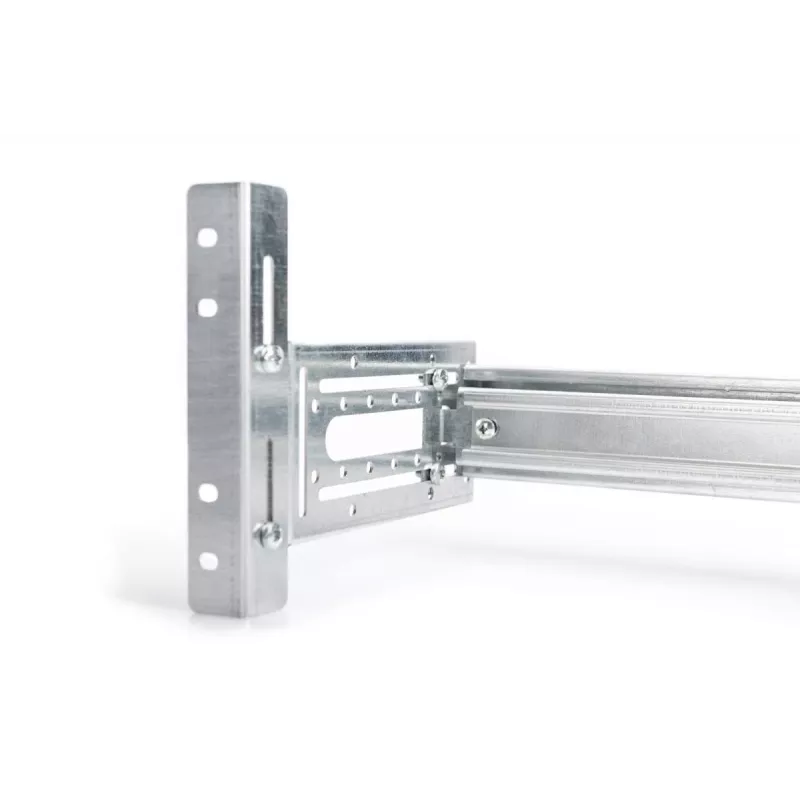

• Rack mounting: adjustable frame height with fixed 4U brackets

How to use

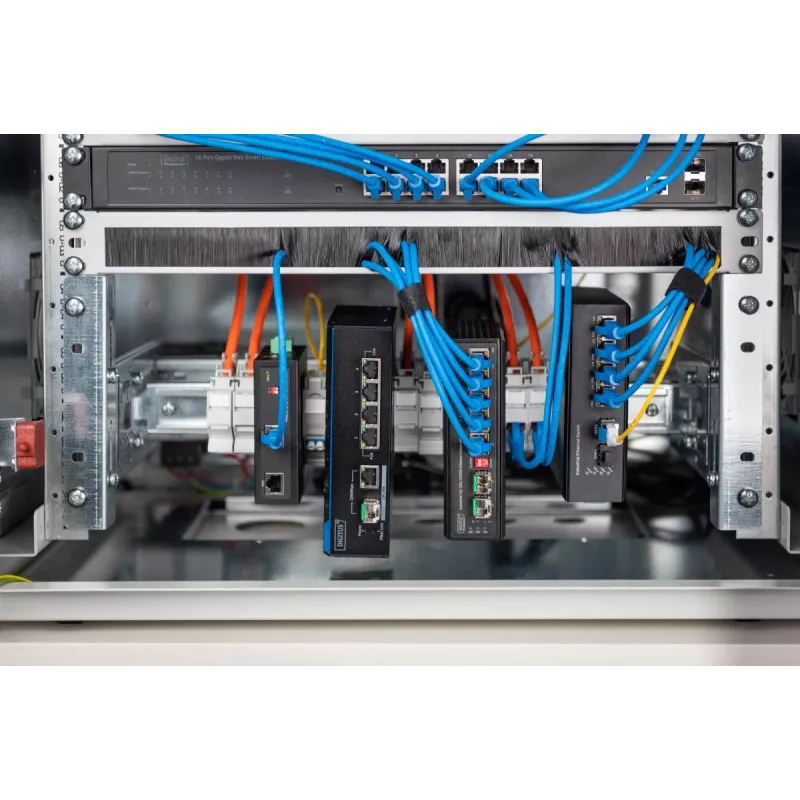

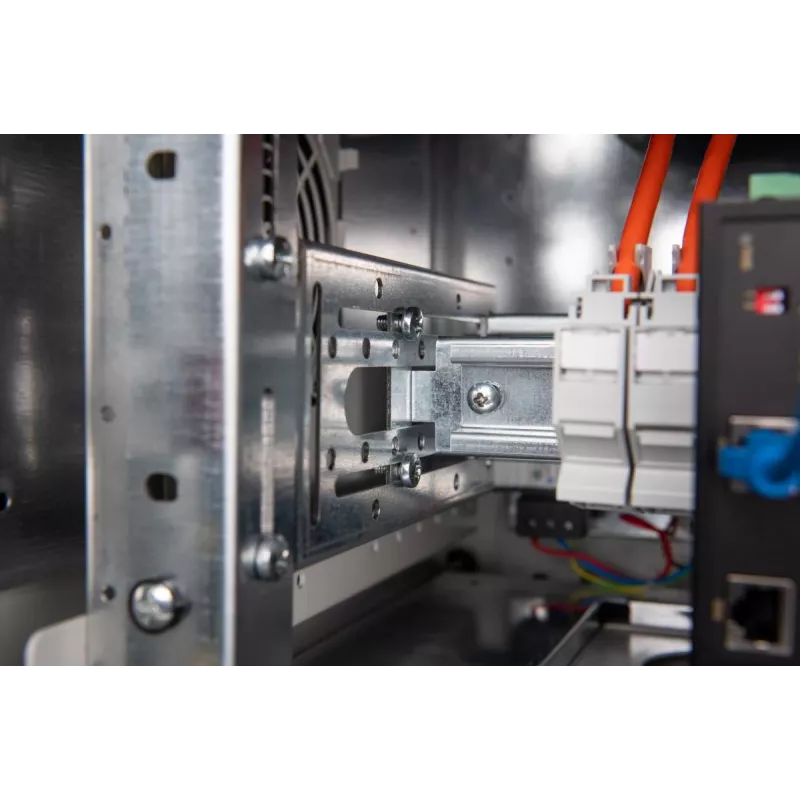

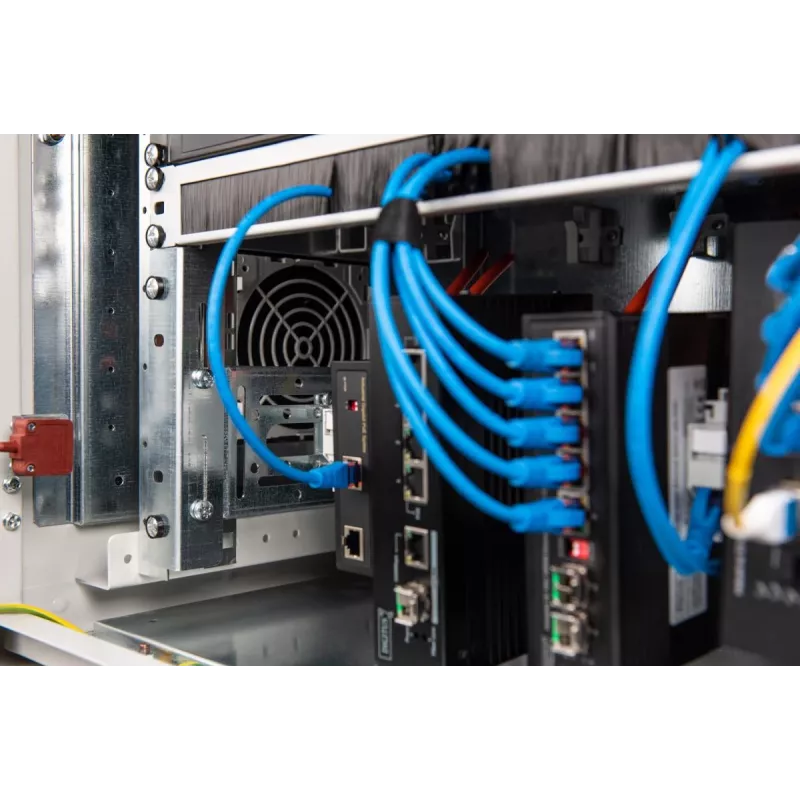

Install the holder in the rack using the fixed 4U brackets and adjust its height as required. Mount the included 35 x 390 mm DIN rail; adjust the rail depth and rotate it 90° if horizontal installation is needed. Snap compatible 35 mm DIN rail devices onto the rail without screws. Route cables through the rear C-shaped tray and secure them with tape or cable ties at the provided fixing points.

Recommendations

Verify device compatibility with 35 mm DIN rails before installation and ensure the rail depth and orientation provide sufficient clearance for connected cables and airflow. Use appropriate fastening materials for rack mounting and secure cables at the tray fixing points to maintain organized cabling.
