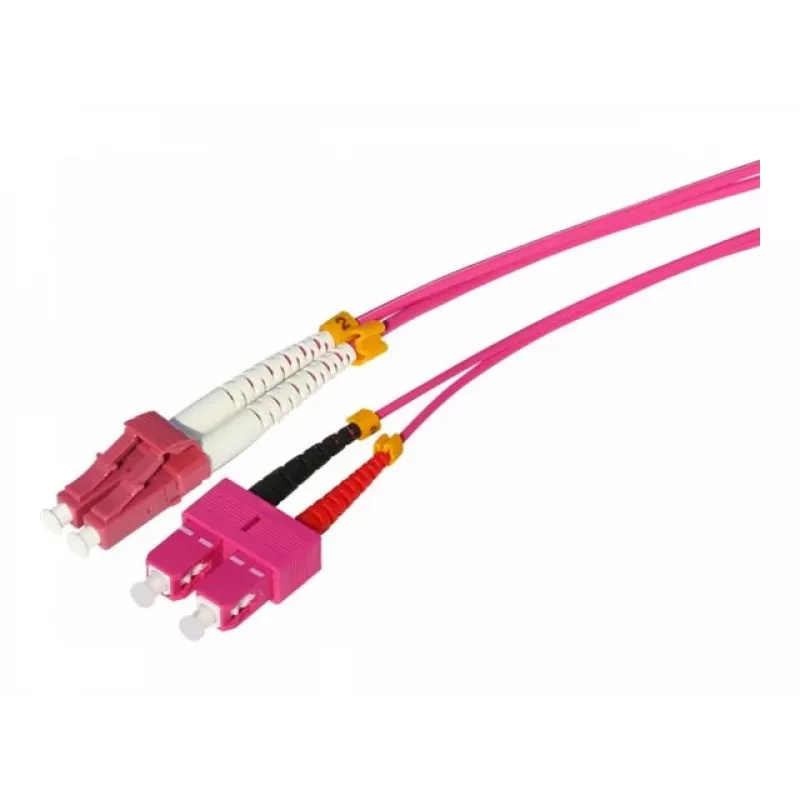

Tecline HD cavo patch in fibra ottica multimodale OM4 LC su SC duplex, 50/125 µm, erika viola, 7,5 m 798LS07

High-density data centers and enterprise networks demand reliable, high-bandwidth fiber connections. This Tecline HD OM4 patch cable delivers laser-optimized multimode performance for 10G, 40G, and 100G Ethernet links, ensuring low insertion loss and stable signal integrity over distances up to 550 meters (depending on data rate).

Who is it for

Network engineers, data center technicians, and IT professionals who need a dependable OM4 fiber jumper for backbone connections, server-to-switch links, or SAN environments. The LC to SC duplex configuration is ideal for connecting modern LC-based equipment to legacy SC patch panels or switches.

Main features

• OM4 laser-optimized multimode fiber, 50/125 µm core/cladding diameter
• LC duplex to SC duplex connectors with zirconia ceramic ferrules
• Supports 10 Gbps up to 550 m, 40 Gbps up to 150 m, and 100 Gbps up to 100 m
• Erika violet jacket for easy identification of OM4 cabling
• Low insertion loss (< 0.3 dB) and high return loss (> 30 dB)
• 7.5 m length for flexible equipment placement

Specifications

• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector A: LC Duplex
• Connector B: SC Duplex
• Cable length: 7.5 m
• Jacket colour: Erika violet
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB
• Ferrule material: Zirconia ceramic
• Connector polarity: A-B (crossed)
• Compliance: IEC 60793-2-10 Type A1a.3 (OM4)

Tips

For best performance, avoid tight bends and keep the cable away from sharp edges. Use OM4-rated patch panels and adapters to maintain signal quality. The violet jacket helps distinguish OM4 from OM3 (aqua) or single-mode (yellow) cables in dense installations.
