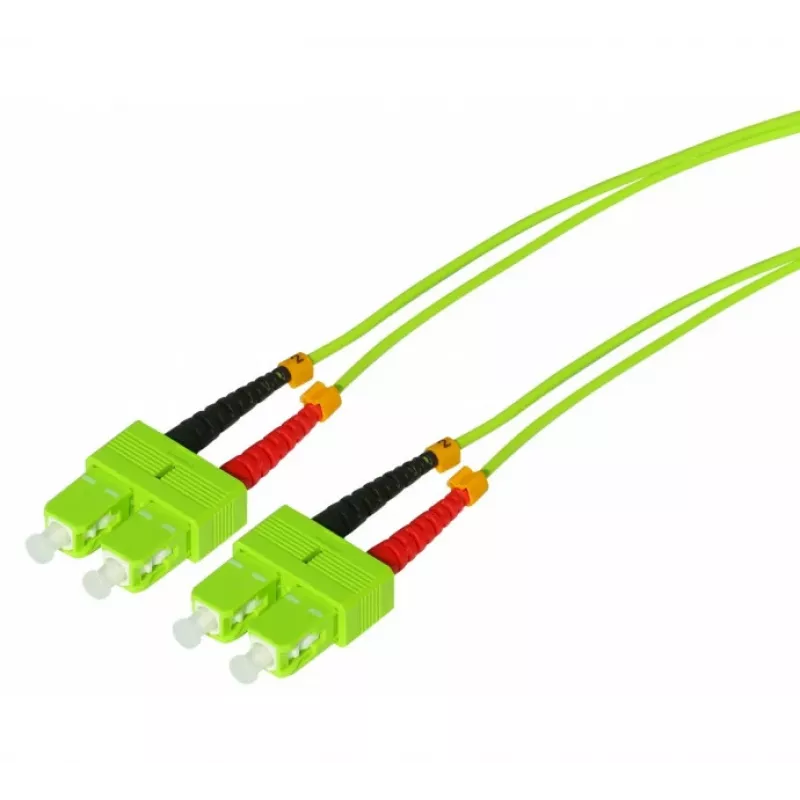

Tecline HD cavo patch in fibra ottica, OM5 multimodale, SC Duplex a SC Duplex, verde lime, 2,0 m 796SS02

Data center technicians and network engineers use this Tecline HD fiber optic patch cable to connect 100 Gigabit Ethernet equipment over short-reach multimode links. The lime green jacket makes OM5 cabling easy to identify in high-density patching fields.

Key specifications

• Fiber type: OM5 multimode, 50/125 µm core/cladding
• Connectors: SC Duplex to SC Duplex, PC polish
• Length: 2.0 m
• Jacket colour: lime green
• Supports wavelengths 850 nm and 953 nm
• Effective modal bandwidth: 4700 MHz·km at 850 nm, 2470 MHz·km at 953 nm
• Insertion loss: < 0.3 dB, return loss: > 30 dB

Why choose it

OM5 fiber is optimized for short-wavelength division multiplexing, enabling higher data rates over existing multimode infrastructure. The duplex SC connectors provide a secure push-pull latching mechanism for reliable connections.

Ideal use cases

• 100G Ethernet backbone links in data centers
• High-density fiber patching between switches and servers
• Structured cabling in enterprise networks

Good to know

The cable contains two fibers (duplex) for bidirectional communication. The lime green jacket is the industry-standard colour for OM5, allowing quick visual identification.
