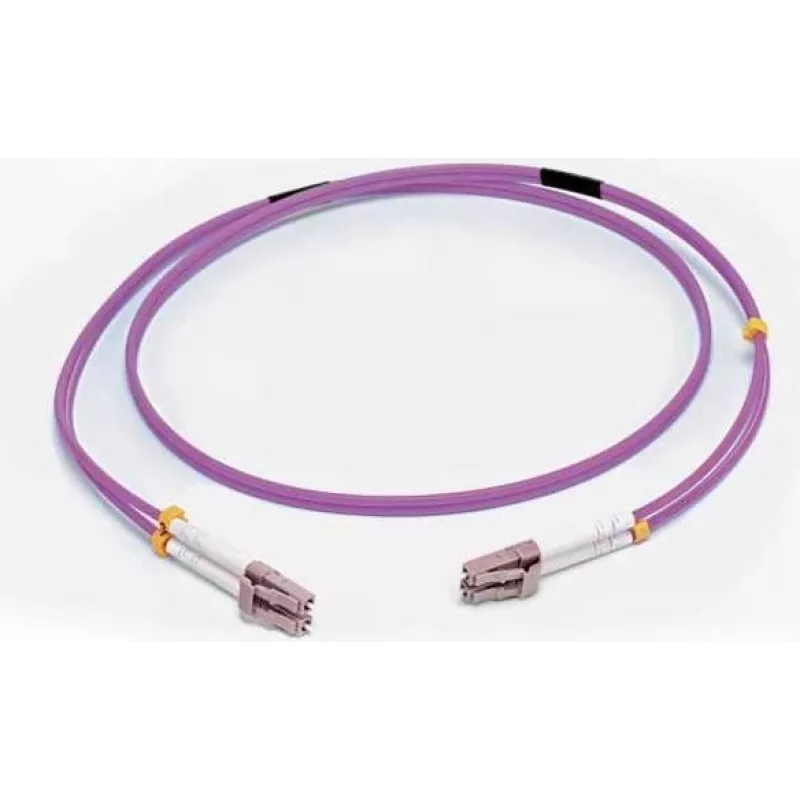

C2G cavo patch in fibra ottica LC/LC OM4 LSZH, 2m, viola 81750

Fibre optic patch cable engineered for high-speed multimode networking, delivering exceptional bandwidth up to 4700 MHz·km at 850 nm. Its violet LSZH jacket ensures safety in enclosed spaces while the duplex LC connectors provide reliable connectivity for 10G, 40G, and 100G Ethernet applications.

Advantages

OM4 grade fibre supports extended reach for high-speed data transmission. Low Smoke Zero Halogen jacket minimises toxic emissions in case of fire, ideal for data centres and enterprise environments. Precision LC connectors ensure low insertion loss and high return loss for consistent performance.

Suitable for

• Data centre interconnects and backbone cabling
• High-density fibre patching in server rooms
• 10GbE, 40GbE, and 100GbE network upgrades
• Environments requiring halogen-free cabling

Key specifications

• Cable length: 2 metres
• Fibre type: OM4 multimode, 50/125 µm core/cladding
• Connectors: LC male to LC male, duplex
• Jacket: LSZH, violet colour
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation: ≤ 2.5 dB/km at 850 nm, ≤ 0.8 dB/km at 1300 nm
• Minimum bend radius: 30 mm
• Operating temperature: -20°C to 70°C

Recommendations

For optimal performance, pair with OM4-compatible transceivers and maintain proper bend radius during installation. Test links after deployment to ensure signal integrity for high-speed applications.
