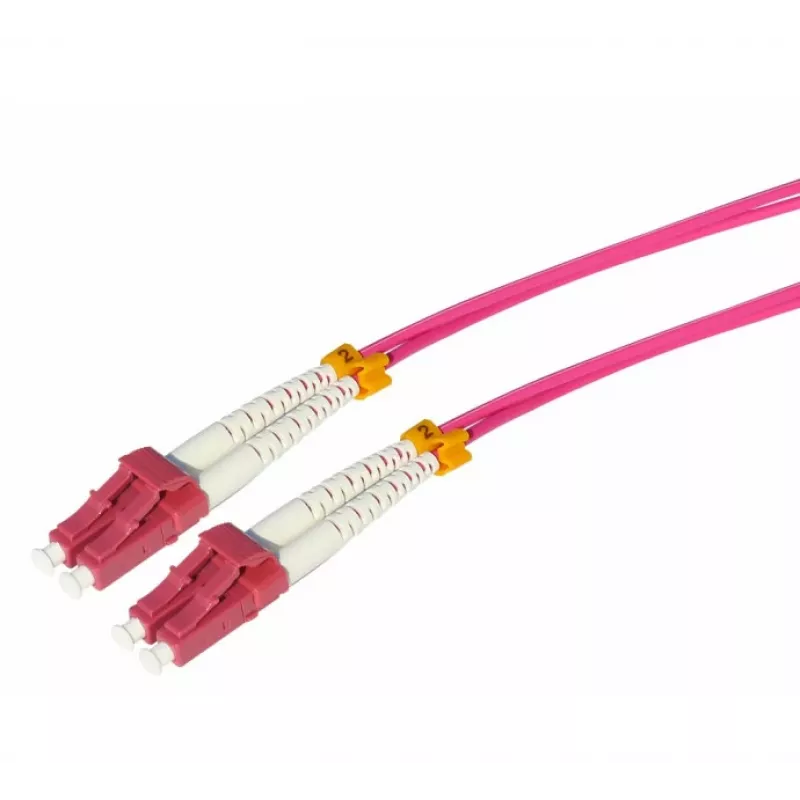

Tecline HD OM4 cavo patch in fibra ottica multimodale, LC Duplex su LC Duplex, 50/125 µm, viola erica, 1 m 798LL01

Fiber optic patch cable with OM4 multimode fiber for high-speed data networks and data centers. The LC Duplex connectors on both ends enable reliable connections in high-density installations, while the 50/125 µm core/cladding diameter supports data rates up to 100 Gbps over short distances.

Advantages

High-density (HD) design saves space in racks and patch panels. OM4 fiber provides a modal bandwidth of 4700 MHz·km at 850 nm, ensuring excellent signal integrity. The LSZH jacket reduces smoke and halogen emissions in case of fire, enhancing safety in indoor environments.

Suitable for

• Data center interconnects
• Storage area networks (SAN)
• High-speed LAN backbones
• Backward compatible with OM3 systems

Key specifications

• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 1 m
• Cable colour: Heather Violet
• Jacket material: LSZH
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB

Recommendations

For optimal performance, pair with OM4-compatible transceivers and maintain proper bend radius during installation.
