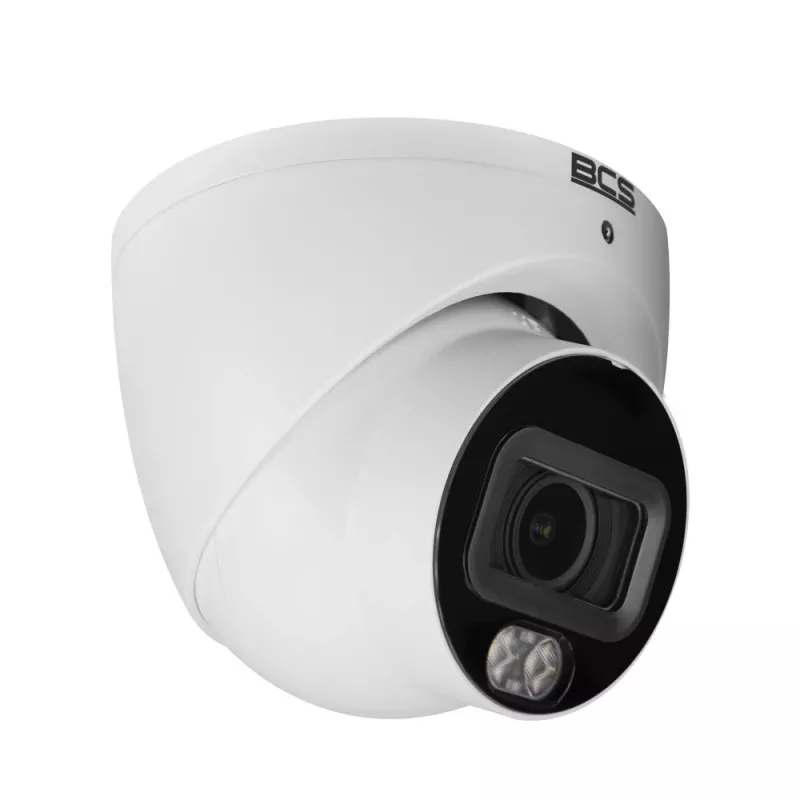

Telecamera dome IP BCS 8MP BCS-L-EIP28FCL3P-Ai1 con AI, 2,8mm, PoE, IP67, IK10

The BCS-L-EIP28FCL3P-Ai1 is a high-performance 8-megapixel IP dome camera designed for professional surveillance. Featuring a 1/2.8" Progressive Scan CMOS sensor, it delivers crisp 3840x2160 resolution at 20 fps. Equipped with a 2.8mm fixed lens providing a 105° horizontal field of view, this camera is ideal for indoor and outdoor applications. With Smart IR technology, it offers night vision up to 30 meters. The camera supports H.265+ compression for efficient bandwidth and storage, and includes advanced AI functions such as Perimeter Protection, SMD Plus, and Face Detection. Its robust metal housing is rated IP67 (weatherproof) and IK10 (vandal-resistant), ensuring durability in harsh environments. Power can be supplied via PoE (802.3af) or DC 12V, simplifying installation. A built-in microphone enables audio recording, and the MicroSD card slot supports local storage up to 256GB.

Advantages

This dome camera combines high-resolution imaging with intelligent analytics, making it a versatile choice for security systems. The 120dB True WDR ensures clear images in challenging lighting conditions, while the AI capabilities reduce false alarms by distinguishing humans and vehicles. The compact, vandal-resistant design suits both commercial and residential settings.

Suitable for

• Retail stores and shopping centers
• Office buildings and warehouses
• Residential properties and apartment complexes
• Educational institutions and hospitals
• Outdoor perimeters and parking lots

Key specifications

• Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 8 MP (3840x2160) at 20 fps
• Lens: 2.8mm fixed, F1.6
• Field of View: 105° horizontal
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• AI Functions: Perimeter Protection, SMD Plus, Face Detection
• Day/Night: Auto (ICR), Color, B/W
• Minimum Illumination: 0.007 Lux (Color), 0 Lux (IR on)
• WDR: 120dB True WDR
• Audio: Built-in microphone
• Storage: MicroSD slot up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Power: PoE (802.3af) or DC 12V
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Housing Material: Metal
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. The camera is compatible with BCS NVRs and third-party VMS supporting ONVIF.
