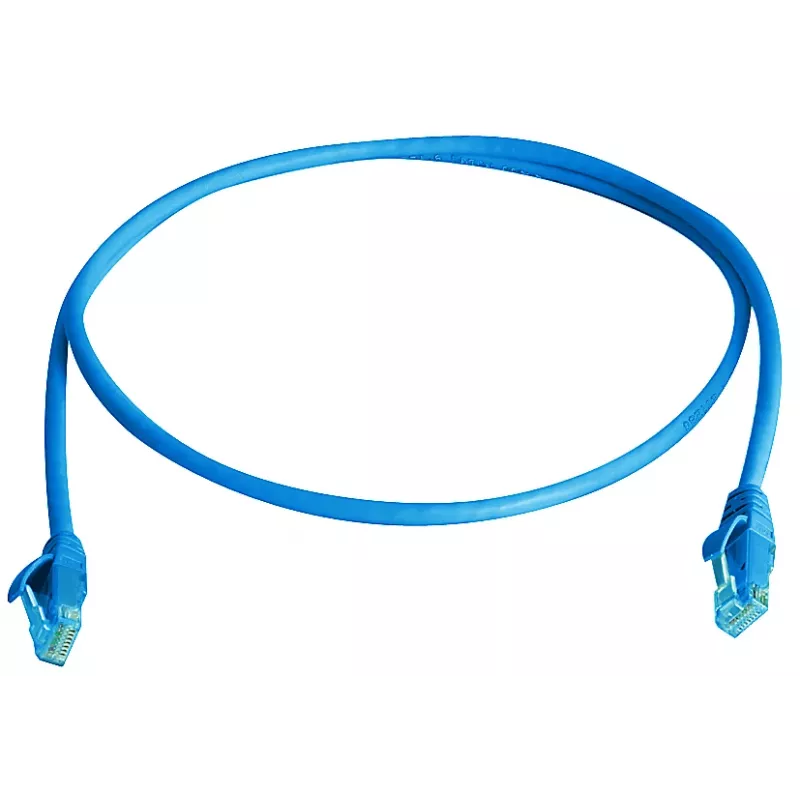

Telegärtner 100008076 cavo patch Cat.6A S/FTP RJ45, 0,5 m, blu, LSZH, snagless

Experience 10 Gigabit Ethernet performance with this Telegärtner Cat.6A patch cable, engineered for high-density data centers and enterprise networks. The S/FTP shielding with PiMF (pairs in metal foil) ensures superior alien crosstalk resistance, while the LSZH jacket provides safety in fire-sensitive environments.

Overview

This 0.5 m blue patch cable features RJ45 connectors on both ends, wired to T568B standard. The snagless boot protects the locking tab during installation, and the flame-retardant jacket meets IEC 60332-1-2. It supports bandwidth up to 500 MHz, making it ideal for 10GBASE-T applications.

What stands out

• Cat.6A performance: supports 10 Gbps up to 500 MHz
• S/FTP shielding: each pair individually foil-shielded, overall braid shield
• LSZH jacket: low smoke, zero halogen, flame retardant
• Snagless boot: prevents connector damage during patching
• Copper conductors: AWG 27/7 stranded for flexibility

Technical details

• Cable length: 0.5 m
• Colour: Blue
• Connector type: RJ45 (8P8C) both ends
• Wiring standard: T568B
• Conductor material: Copper
• Conductor gauge: AWG 27/7
• Operating temperature: -20°C to +60°C
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Our verdict

A reliable, high-performance patch cable for demanding network environments, offering excellent shielding and safety features.
