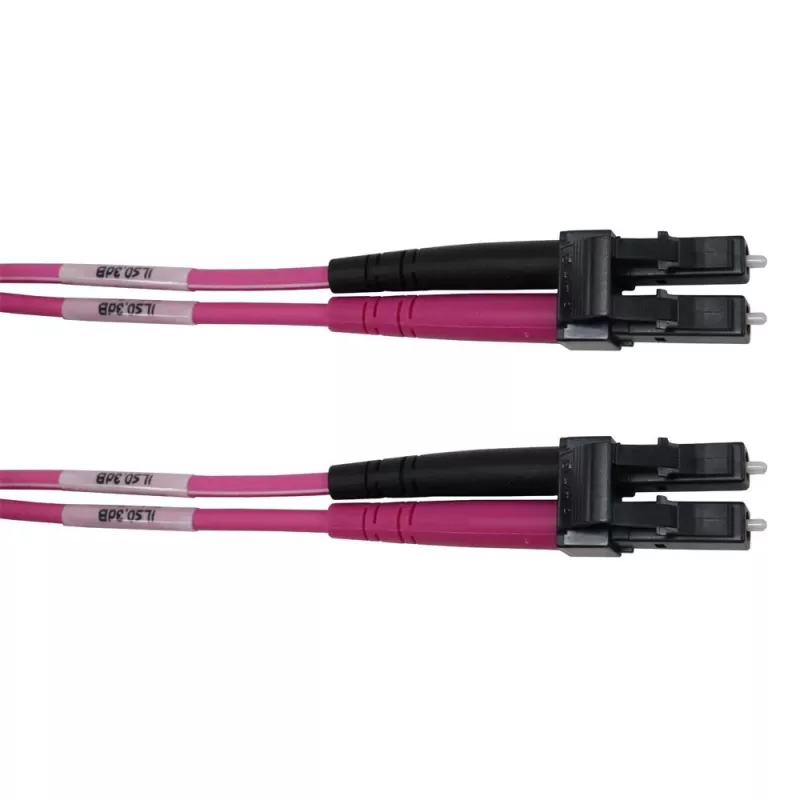

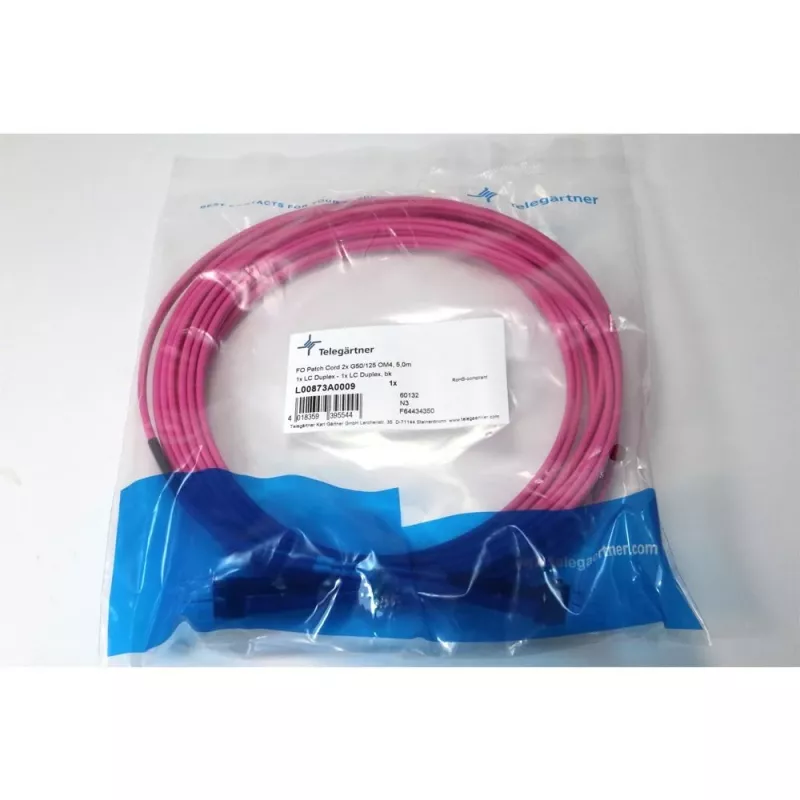

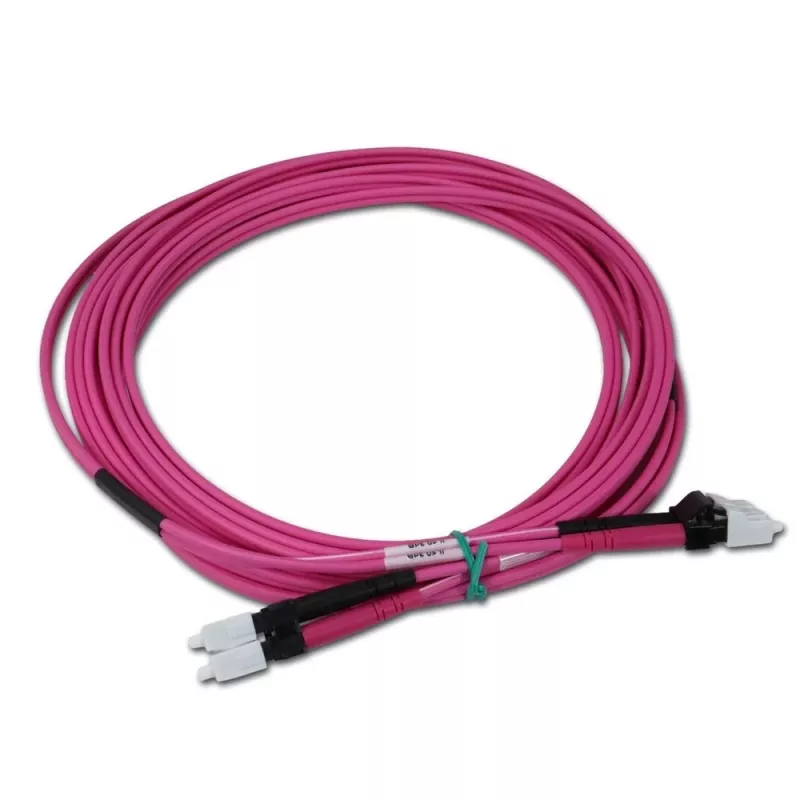

Telegärtner cavo patch in fibra ottica LC su LC multimodale OM4, 5 m, viola

High-speed data centres and enterprise networks demand reliable, low-loss fibre connections. This Telegärtner patch cable delivers OM4 multimode performance with LC connectors on both ends, ensuring compatibility with standard fibre networking equipment. The 5-metre length is ideal for patching between panels and switches, while the violet LSZH jacket provides safety and easy identification.

Who is it for

Network administrators, data centre technicians, and IT professionals who need a dependable, high-bandwidth fibre link for short-distance interconnects. Suitable for 10G, 40G, and 100G Ethernet applications over multimode fibre.

Main features

• LC male to LC male duplex connectors for secure, high-density connections
• OM4 multimode fibre supports 10/40/100 GbE up to 150 metres
• 50/125 µm core/cladding diameter for optimal light transmission
• LSZH jacket emits low smoke and zero halogen in case of fire
• Violet colour coding per industry standards for OM4

Specifications

• Cable length: 5 m
• Connector 1: LC male
• Connector 2: LC male
• Fibre type: OM4 multimode
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Cable construction: Duplex
• Jacket material: LSZH
• Insertion loss: ≤ 0.25 dB
• Return loss: ≥ 30 dB
• Operating temperature: -20°C to 70°C

Tips

Use this cable for backbone connections between switches and patch panels in data centres. For longer distances or outdoor use, consider a single-mode solution. Always inspect connectors for cleanliness before installation to maintain optimal performance.
