TELEGÄRTNER cavo patch Industrial Ethernet Cat.6A, connettore maschio M12 X-coded su connettore maschio M12 X-coded, 1,0 m, PUR verde L80000A0001

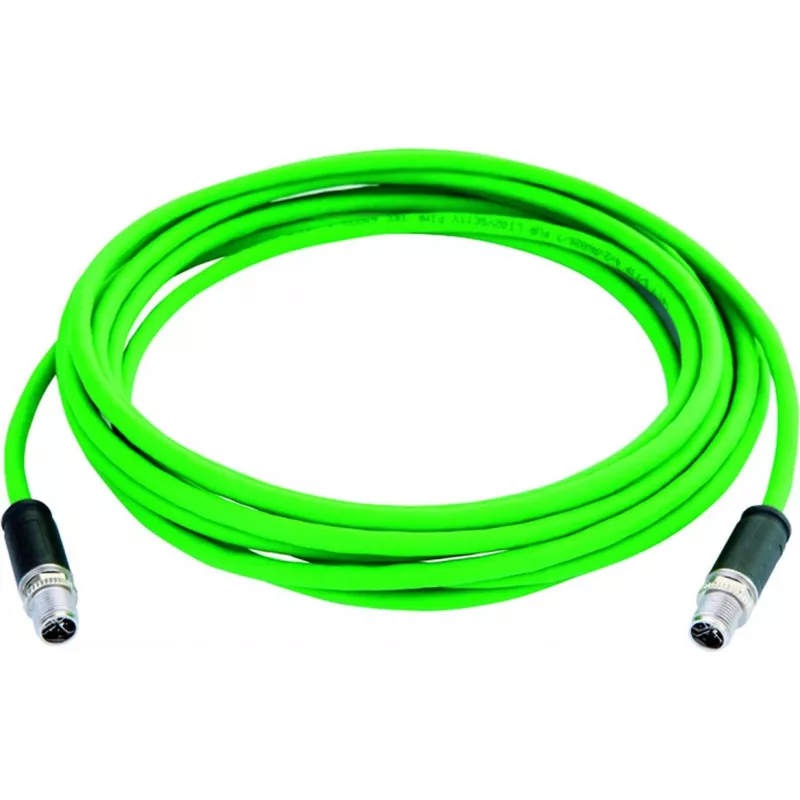

This TELEGÄRTNER connection line stands out with its X-coded M12 connectors, built for industrial Ethernet applications where vibration and tight spaces rule out standard RJ45. The Cat.6A rating delivers 10 Gbps up to 500 MHz, making it a dependable backbone for PROFINET networks.

Highlights

• M12 X-coded male to M12 X-coded male, 8 positions
• Cat.6A performance: 10 Gbps, 500 MHz
• Shielded (SF/UTP) with PUR jacket, green RAL 6018
• Halogen-free, oil-resistant, UV-resistant
• Operating temperature -20 °C to 70 °C

In daily use

The 1.0 m length suits control cabinet connections and short machine links. The PUR jacket shrugs off oils and UV, while the halogen-free construction keeps smoke and toxic fumes low in case of fire. Mated connectors achieve IP65/IP67, so the link stays clean in dusty or wet environments.

Full specifications

• Cable type: Industrial Ethernet Patch Cable
• Ethernet category: Cat.6A
• Data transmission rate: 10 Gbps
• Frequency range: up to 500 MHz
• Connector A: M12 X-coded male
• Connector B: M12 X-coded male
• Cable length: 1.0 m
• Application protocol: PROFINET
• Shielding: Shielded (SF/UTP)
• Number of positions: 8
• Conductor gauge: AWG 26/7
• Outer cable diameter: 7.6 mm
• Jacket material: PUR (Polyurethane)
• Jacket colour: Green (RAL 6018)
• Operating temperature range: -20 °C to 70 °C
• Ingress protection (mated): IP65 / IP67
• Halogen-free: Yes, according to IEC 60754-1/2
• Oil resistance: Yes, according to EN 60811-2-1
• UV resistance: Yes
• Flammability rating: IEC 60332-1-2

Final note

For engineers who need a rugged, high-speed link in industrial settings, this cable delivers the performance and durability expected from TELEGÄRTNER.
