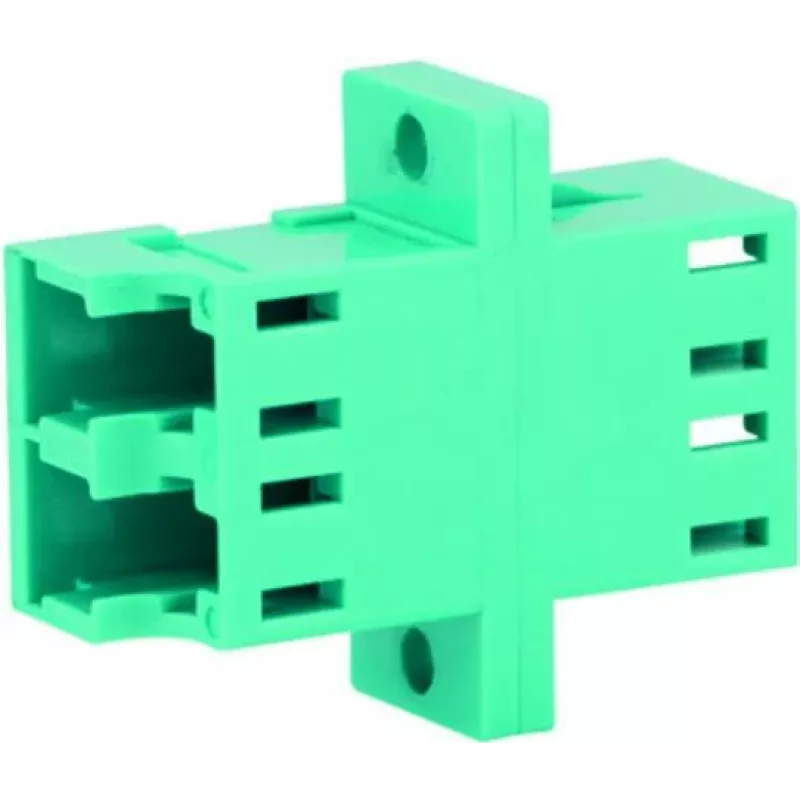

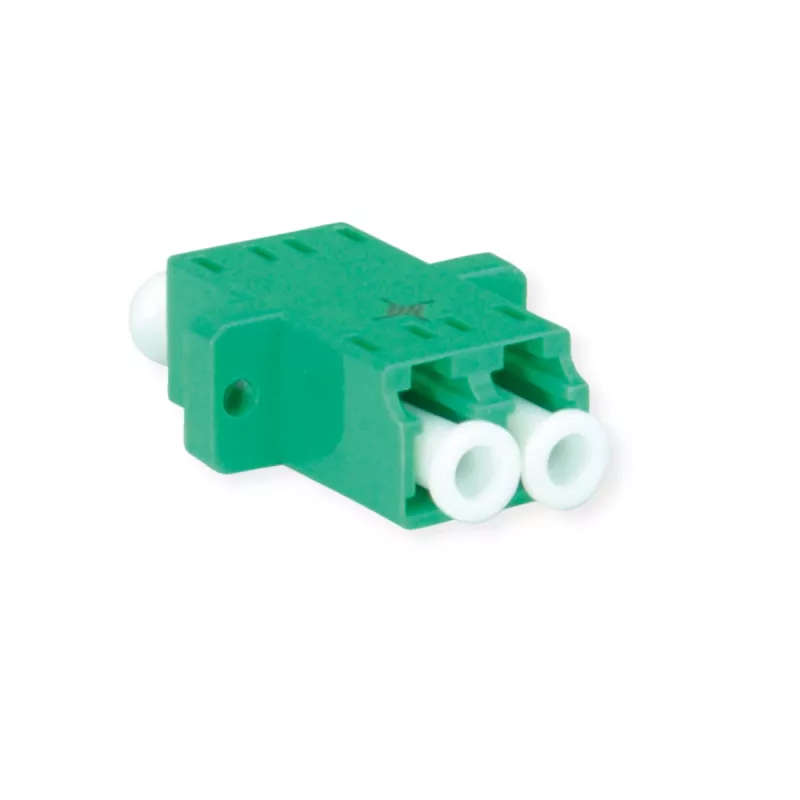

Telegärtner J08071A0021 Connettore in fibra ottica LC/APC single-mode, verde

LC/APC single-mode fibre optic connector with zirconia ceramic ferrule for low insertion loss and high return loss. The green housing indicates APC polishing for angled physical contact, reducing back reflection in high-speed networks.

Advantages

Zirconia ceramic ferrule ensures precise fibre alignment and durability over 500 mating cycles. APC polishing delivers return loss ≥60 dB, minimising signal degradation. Operating temperature range from -40 °C to +85 °C suits harsh environments.

Suitable for

• Single-mode fibre patch cords and pigtails
• Telecom and data centre applications
• High-density fibre installations

Key specifications

• Connector type: LC
• Polishing: APC (Angled Physical Contact)
• Fibre mode: Single-mode (OS1/OS2)
• Insertion loss: ≤0.2 dB
• Return loss: ≥60 dB
• Ferrule material: Zirconia ceramic
• Housing material: Plastic
• Compatible fibre diameter: 0.9 mm
• Operating temperature: -40 °C to +85 °C
• Durability: 500 mating cycles
• Flammability rating: UL 94 V-0
• Standards: IEC 61754-20, TIA/EIA-604-10

Recommendations

Use with single-mode fibre for reliable, low-reflection connections in high-speed networks.
