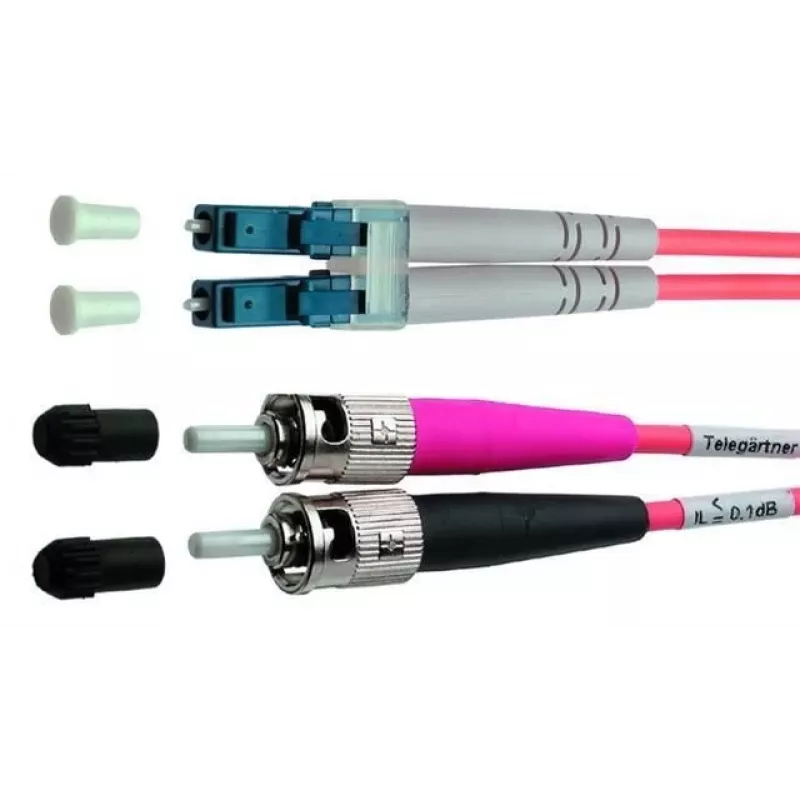

Telegärtner patch cord fibra ottica ST su LC OM4 multimode, 2m, viola L00891A0080

This Telegärtner fiber optic patch cable stands out with its OM4 multimode fiber and violet LSZH jacket, delivering high bandwidth for short-range data links. It connects ST and LC interfaces over a 2-meter span, ideal for patching in data centers and enterprise networks.

Highlights

• OM4 multimode fiber supports 4700 MHz·km at 850 nm
• ST male to LC male connectors for versatile patching
• LSZH jacket in violet for low smoke and halogen-free safety
• Low insertion loss under 0.3 dB ensures reliable signal integrity

In daily use

The cable's 50/125 µm core and cladding diameter, combined with OM4 grade, enables 10G, 40G, and 100G Ethernet over short distances. Its 2-meter length provides flexibility in rack installations, while the violet jacket aids in identification of OM4 links.

Full specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Multimode
• Fiber grade: OM4
• Core/cladding diameter: 50/125 µm
• Connector 1: ST male
• Connector 2: LC male
• Cable length: 2 m
• Jacket color: Violet
• Jacket material: LSZH
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Wavelengths supported: 850 nm, 1300 nm
• Attenuation at 850 nm: < 3.0 dB/km
• Attenuation at 1300 nm: < 1.0 dB/km
• Bandwidth at 850 nm: 4700 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20°C to +70°C
• Storage temperature: -20°C to +70°C

Final note

Engineered for high-performance multimode links, this cable meets the demands of modern fiber networks.
