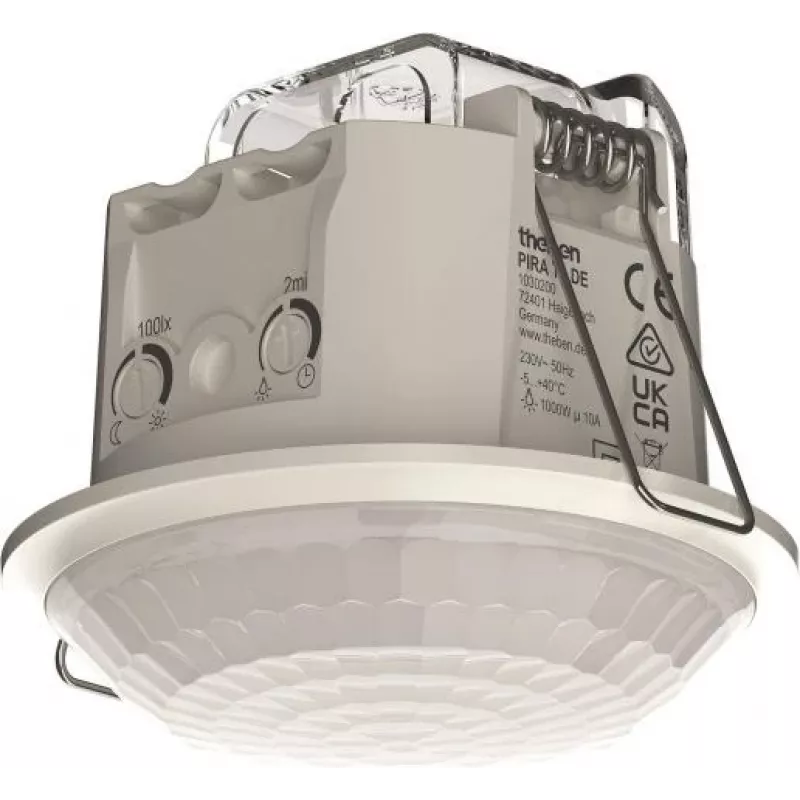

THEBEN THE PIRA T8 DE rilevatore da soffitto copertura a 360°, bianco

Unlike standard wall-mounted sensors that rely on line-of-sight, the THEBEN THE PIRA T8 DE sits flush in the ceiling and watches the entire room below with a true 360° field of view. Its round detection area makes it an excellent fit for corridors, offices and open rooms where reliable presence detection matters more than simple line-of-sight sensing.

Highlights

• Ceiling-mounted design for unobtrusive, central placement
• Round detection area of 8 m diameter (tangential) and 4 m diameter (radial)
• Adjustable time delay from 10 seconds to 60 minutes
• Brightness sensor from 5 to 2000 lux prevents unnecessary switching during daylight
• Switching capacity up to 2300 W for resistive loads
• Compact white housing with IP40 protection and protection class II

In daily use

Once mounted at a recommended height of 2 to 3 m, the PIRA T8 DE monitors the area below and switches connected lighting reliably. The built-in light sensor can be set so that the detector only triggers when ambient light falls below a configured level, saving energy during bright hours. With a time delay range of 10 seconds up to 60 minutes, it adapts to rooms with short or long occupancy. The device operates directly on 230 V AC and is suitable for resistive, inductive/fluorescent and LED loads, with a maximum switching capacity of 1150 W for LED lighting (up to 200 µF).

Full specifications

• Detection angle: 360°
• Detection range tangential: 8 m diameter
• Detection range radial: 4 m diameter
• Recommended installation height: 2 – 3 m
• Supply voltage: 230 V AC
• Frequency: 50 – 60 Hz
• Switching capacity (resistive load): 2300 W
• Switching capacity (inductive/fluorescent): 1150 VA
• Switching capacity (LED): 1150 W (max. 200 µF)
• Light sensor range: 5 – 2000 lx
• Time delay (adjustable): 10 s - 60 min
• Protection type: IP40
• Protection class: II
• Ambient temperature: -15 °C to +50 °C
• Colour: White
• Standby power consumption: < 0.5 W
• Number of channels: 1 (Light switching)

Final note

With its ceiling-mounted 360° detection and adjustable light sensitivity, the THEBEN PIRA T8 DE delivers energy-efficient presence detection for a wide range of indoor spaces.
