UNI-T UTi720E Termocamera

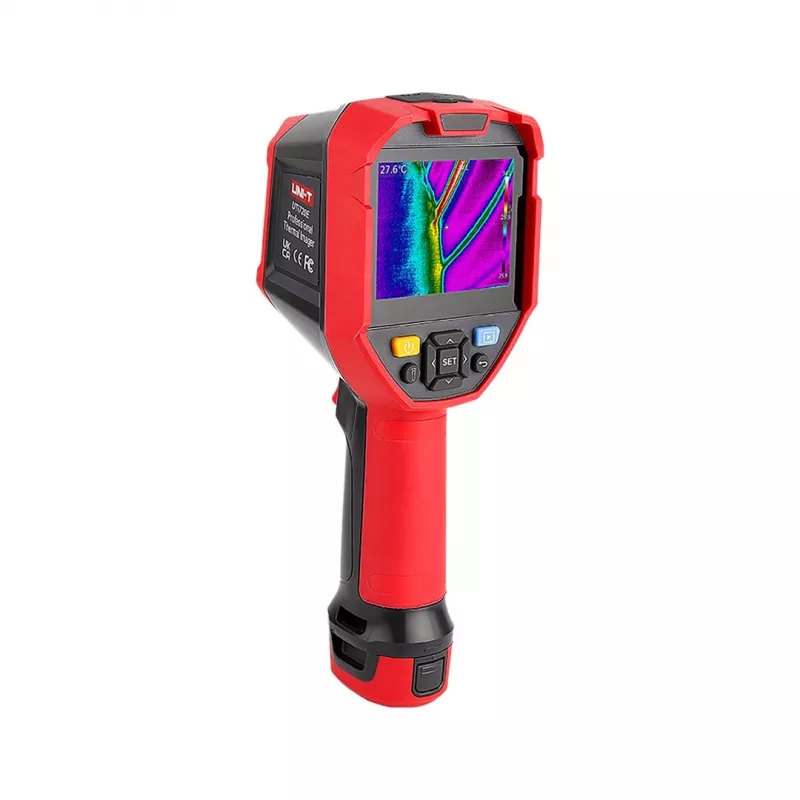

The UNI-T UTi720E Thermal Imaging Camera is a professional-grade handheld device designed for accurate temperature measurement and thermal analysis. With a high-resolution 256x192 infrared sensor and a wide temperature range from -20°C to 550°C, it is ideal for electrical inspections, building diagnostics, HVAC maintenance, and industrial troubleshooting. The camera features a 3.5-inch IPS display, multiple image modes (Thermal, Fusion, PIP, Visible Light), and 7 color palettes for enhanced visualization. Built to withstand tough environments, it offers IP54 protection and 2-meter drop resistance. The rechargeable Li-ion battery provides over 6 hours of continuous operation, and data is stored on a 16GB SD card. Connectivity via USB Type-C ensures easy data transfer.

Advantages

High thermal sensitivity (NETD <50mK) ensures precise detection of temperature differences. The adjustable emissivity (0.01-0.99) allows accurate measurements on various surfaces. The built-in laser pointer and LED flashlight aid in targeting and illuminating dark areas. The camera's lightweight and ergonomic design make it comfortable for extended use.

Suitable for

• Electrical panel and circuit inspection
• Building envelope and insulation analysis
• HVAC system diagnostics
• Mechanical equipment monitoring
• Fire prevention and safety checks

Key specifications

• Infrared Resolution: 256 x 192 pixels
• Temperature Range: -20°C to 550°C
• Accuracy: ±2°C or ±2%
• Thermal Sensitivity: <50mK
• Frame Rate: 25Hz
• Field of View: 56° x 42°
• Display: 3.5-inch IPS, 640x480
• Image Modes: Thermal, Fusion, PIP, Visible Light
• Color Palettes: 7
• Storage: 16GB SD Card
• Battery Life: >6 hours
• Protection: IP54
• Drop Resistance: 2m

Recommendations

For optimal results, ensure the camera is fully charged before use. Adjust emissivity settings based on the material being measured. Use the laser pointer for precise targeting. Regularly clean the lens to maintain image quality.
