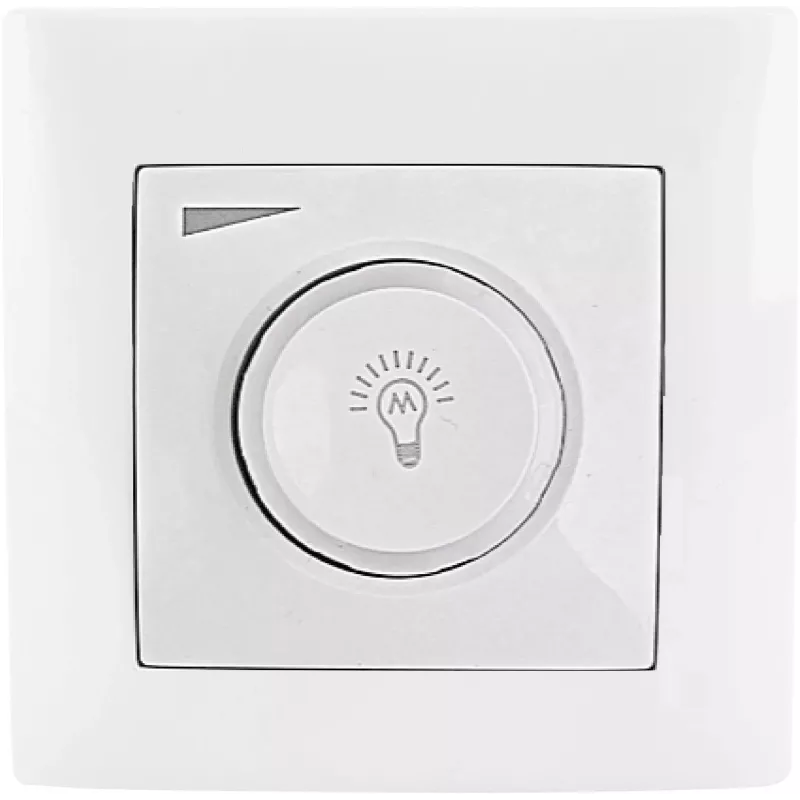

VCX WESA LC 36A dimmer rotativo LED 200/600W bianco

The VCX WESA LC 36A is a universal rotary dimmer designed for LED, incandescent, and halogen lighting. With a sleek white finish and flush-mount design, it seamlessly integrates into standard wall boxes, offering precise dimming control for residential and commercial applications.

Advantages

This dimmer supports both leading edge and trailing edge dimming principles, making it compatible with a wide range of resistive, inductive, and capacitive loads. It features a push ON/OFF function via the rotary knob, overload, short-circuit, and thermal protection for safe operation. The high-quality thermoplastic construction ensures durability and long service life.

Suitable for

• LED lighting systems (3-200W)
• Incandescent and halogen lamps (20-600W)
• Flush-mounted installations in standard wall boxes
• Residential and commercial environments

Key specifications

• Dimmer Type: Universal Rotary
• Load Compatibility: LED, Incandescent, Halogen (230V)
• LED Load Range: 3-200W
• Conventional Load Range: 20-600W
• Operating Voltage: 230V AC, 50Hz
• Mounting Type: Flush-mounted
• Colour: White
• IP Rating: IP20
• Control Method: Rotary knob with push ON/OFF
• Dimming Principle: Leading Edge (RL) & Trailing Edge (RC)
• Protections: Overload, Short-circuit, Thermal
• Material: High-quality Thermoplastic (PC/ABS)
• Installation Depth: Approx. 45 mm
• Wiring: 2-wire connection
• Certifications: CE, RoHS
• Series: WESA

Recommendations

For optimal performance, ensure the total connected load is within the specified ranges. This dimmer is not suitable for use with electronic transformers or low-voltage lighting systems without proper compatibility checks.
